Jabsco ITT Marine and Industrial Pumps - Jabsco 29120, 29090 Parts

Home

Mfr. Jabsco ITT Marine and Industrial Pumps

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

$3.07 - $71.92

Note:There is parts commonality from the new units to the old. If you fit a replacement top valve cover or pump assembly you will effectively upgrade your toilet to the latest model. Jabsco Marine Toilet Wizard

Look in the Images Tab below to confirm what parts are included in the Kits.

Part No.	Mfr No.	Part	Fits	Diagram No.	Description	Unit	Leaves Warehouse*	List Price	Your Price Price	Qty.
Major Service Kit # 29045-0000
49060	29045-0000	Service Kit	29090-2000, 29120-2000	A -Up to 1997	Major Service Kit (Up to 1997), 29045-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$70.65	$60.65

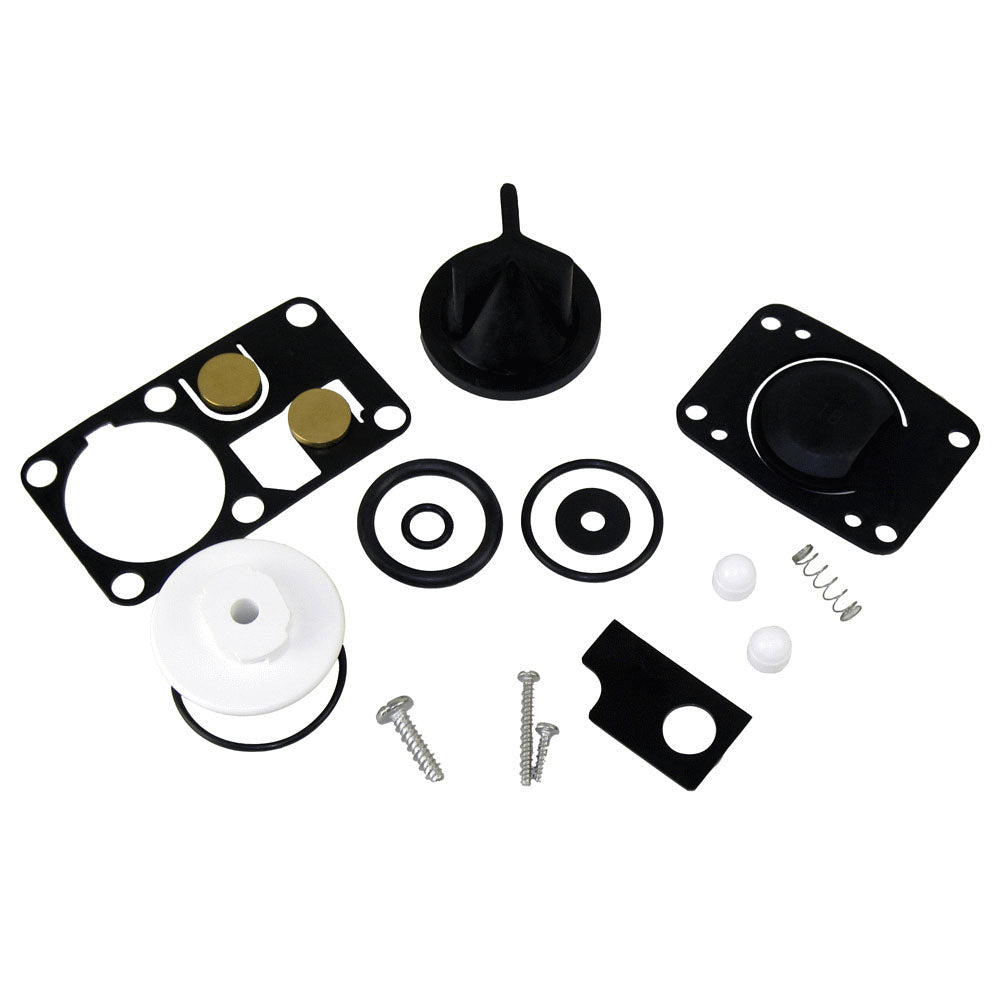

Major Service Kit, 1998 - 2007 # 29045-2000
150654	29045-2000	Service Kit	29120-2000, 29090-2000	A - From 1998 to 2007	Major Service Kit, 1998 - 2007, 29045-2000	Each	In-Stock (Ships In: 1 - 2 Days)	$69.32	$59.50
'Twist n' Lock' Pump Assembly, 29040-3000
201873	29040-3000	Pump Assembly	29120-2000, 29090-2000	B	Pump Assembly, 29040-3000	Each	In-Stock (Ships In: 1 - 2 Days)	$83.80	$71.92
Pump Cylinder Assembly # 29051-2000
49113	29051-2000	Cylinder Assembly	29120-2000, 29090-2000	D	Pump Cylinder Assembly # 29051-2000	Each	In-Stock (Ships In: 1 - 2 Days)	$55.21	$47.39
Bowl Installation Kit # 29047-0000
49114	29047-0000	Mounting Kit	29120-2000, 29090-2000	E	Base to Bowl Mounting Kit 29047-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$22.37	$20.66
Jabsco Bowl Spud w/Intake Elbow/O-Ring #58107-1000 (replaces 29048-0000)
48176	58107-1000	Spud w/ Intake Elbow / O-Ring	37255-0012, 37255-0092, 37255-0024, 37255-0094, 37245-0092, 37245-0094, 37245-1092, 37245-1094, 37055-0012, 37055-0092, 37055-0024, 37055-0094, 37045-0092, 37045-0094, 37045-1092, 37045-1094, 37010-0092, 37010-0097, 37010-0090, 37010-0096, 37010-1090, 37010-1096	5 & 6	Jabsco Bowl Spud w/Intake Elbow/O-Ring #29048-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$24.67	$22.78
Toilet Base, Plug & O-Ring Assy # 29041-1000
49116	29041-1000	Base, Plug & O-Ring Assembly	29120-2000, 29090-2000	7	Toilet Base, Plug & O-Ring Assy # 29041-1000	Each	In-Stock (Ships In: 1 - 2 Days)	$43.73	$37.52
Toilet Base Valve Gasket # 29043-0000
49054	29043-0000	Base Valve Gasket	29120-2000, 29090-2000	16	Toilet Base Valve Gasket # 29043-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$20.58	$19.00
Toilet Seal Housing Assembly, Up to 1997, 29044-0000
49119	29044-0000	Seal Housing	29120-2000, 29090-2000	18	Toilet Seal Housing Assembly, Up to 1997, 20944-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$18.61	$15.18
Toilet Seal Housing Assembly, 1998 - 2007, 29044-2000
54580	29044-2000	Seal Housing	29120-2000, 29090-2000	18	Toilet Seal Housing Assembly, 1998 - 2007, 29044-2000	Each	In-Stock (Ships In: 1 - 2 Days)	$16.29	$15.04
Toilet Top Valve Gasket # 29042-0000
49055	29042-0000	Top Valve Gasket	29120-2000, 29090-2000	21	Toilet Top Valve Gasket # 29042-0000	Each	In-Stock (Ships In: 1 - 2 Days)	$13.84	$12.78
Piston, Rod & O-Ring Assy # 29046-3000
191580	29046-3000	Piston, Rod & O-Ring	3000	29	Piston, Rod & O-Ring Assy # 29046-3000	Each	In-Stock (Ships In: 1 - 2 Days)	$28.39	$26.21
Discharge Flange, 29091-0000 new # 29091-1000
49121	29091-1000	Discharge Flange	29120-2000, 29090-2000	32	Discharge Flange, 29091-1000	Each	In-Stock (Ships In: 1 - 2 Days)	$4.81	$3.07
Jabsco Joker Valve # 29092-1000
48182	29092-1000	Joker Valve	58020-1012, 58020-1024, 58220-1012, 58220-1024, 58040-1012, 58040-1024, 58240-1012, 58240-1024, 29120-2000, 29090-2000	33	Jabsco Joker Valve # 29092-1000	Each	In-Stock (Ships In: 1 - 2 Days)	$16.20	$10.32
Toilet Discharge Elbow, 29029-0000 new # 29029-1000
49122	29029-1000	Discharge Elbow	29120-2000, 29090-2000	34	Toilet Discharge Elbow, 29029-1000	Each	In-Stock (Ships In: 1 - 2 Days)	$12.59	$11.38
*LEAVES WAREHOUSE: Does not include Weekends and Holidays. When will my order arrive? Add the Estimated Leaves Warehouse Time + Estimated Shipping Time.

Shipping Info

How much does shipping cost?

If you'd like to see your shipping cost, add the item to your "Shopping Barge" and then use our Shipping Rates Calculator on the next page.

Returns / Exchanges

For Go2marine's shipping and return policy, click here.

Additional Description

Jabsco, Twist 'n' Lock Manual Toilet Service Kits and Spare Parts for 29120-3000 & 29090-3000, 29120-2000 & 29090-2000, and 29120-0000 & 29090-0000.

Accessories, Related Items, Spare Parts, ...

Jabsco, Twist 'n' Lock, Manual Marine Toilet, 29090 & 29120 Series

Mfr. Jabsco ITT Marine and Industrial Pumps

Used with above Part#: 201873, 48176, 49054, 49055, 49060, 49113, 49114, 49116, 49119

$176.22 - $194.80

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Mfr. Jabsco ITT Marine and Industrial Pumps | Mfr No. 29091-1000

Used with above Part#: 49122

$3.07

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Mfr. Jabsco ITT Marine and Industrial Pumps | Mfr No. 29092-1000

Used with above Part#: 49122

$3.07

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Mfr. Jabsco ITT Marine and Industrial Pumps | Mfr No. 29029-1000

Used with above Part#: 49121

$3.07

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Mfr. Jabsco ITT Marine and Industrial Pumps | Mfr No. 29042-0000

Used with above Part#: 49113

$3.07

Jabsco 37010 Series, Electric Marine Toilet, Push Button, Spare Parts

Mfr. Jabsco ITT Marine and Industrial Pumps | Mfr No. 44106-1000

Used with above Part#: 49121

$2.88

Review and FAQ Center

Post a review or question >>

Review

Par 200900-0000

I have a Par with a Compact Size bowl the model is Par 29090-0000. The waste is difficult to flush down. It goes up/down as I pump. I believe I need a new joker valve??? What part number is it?

Submitted by: Gary

Answer

We do not carry the joker valve seperate since you will need other items to complete the job for your Jabsco Manual Toilet. The link below will take you to the service kit, and it will have everything you need to most likely take care of your problem.

Jabsco Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Add comment

Question

Intake elbow and seal...

I was changing out my manual pump to an electric pump and the intake elbow broke. I need to replace it and could use some advice.

Submitted by: Ernie

Answer

Our part number for the Intake Elbow and Seal is 48176.

Depending on how much room there is to work, it may be easier to remove the toilet before you install the elbow.

Add comment

Question

Can I fix the stripped out threads on the jabsco marine toilets plastic base?

Good morning.
I have a jabsco manual marine toilet model # 29090-0000. The screws connecting the pump to the base have been over- tightened and have stripped out the plastic material of the base. I had hoped to replace the screws with bolts, but the design of the base precludes this. What would you recommend I fill the screw holes with to alow me to use the base again?

Submitted by: Max

Answer

It would not be worth trying to fill, drill, and tap the plastic base when a new Base, Plug and O-Ring Assembly is so affordably priced.

The Jabsco 29090-0000 and the 29090-3000 us the same Base Assembly 29041-1000.

Add comment
