DESCRIPTION

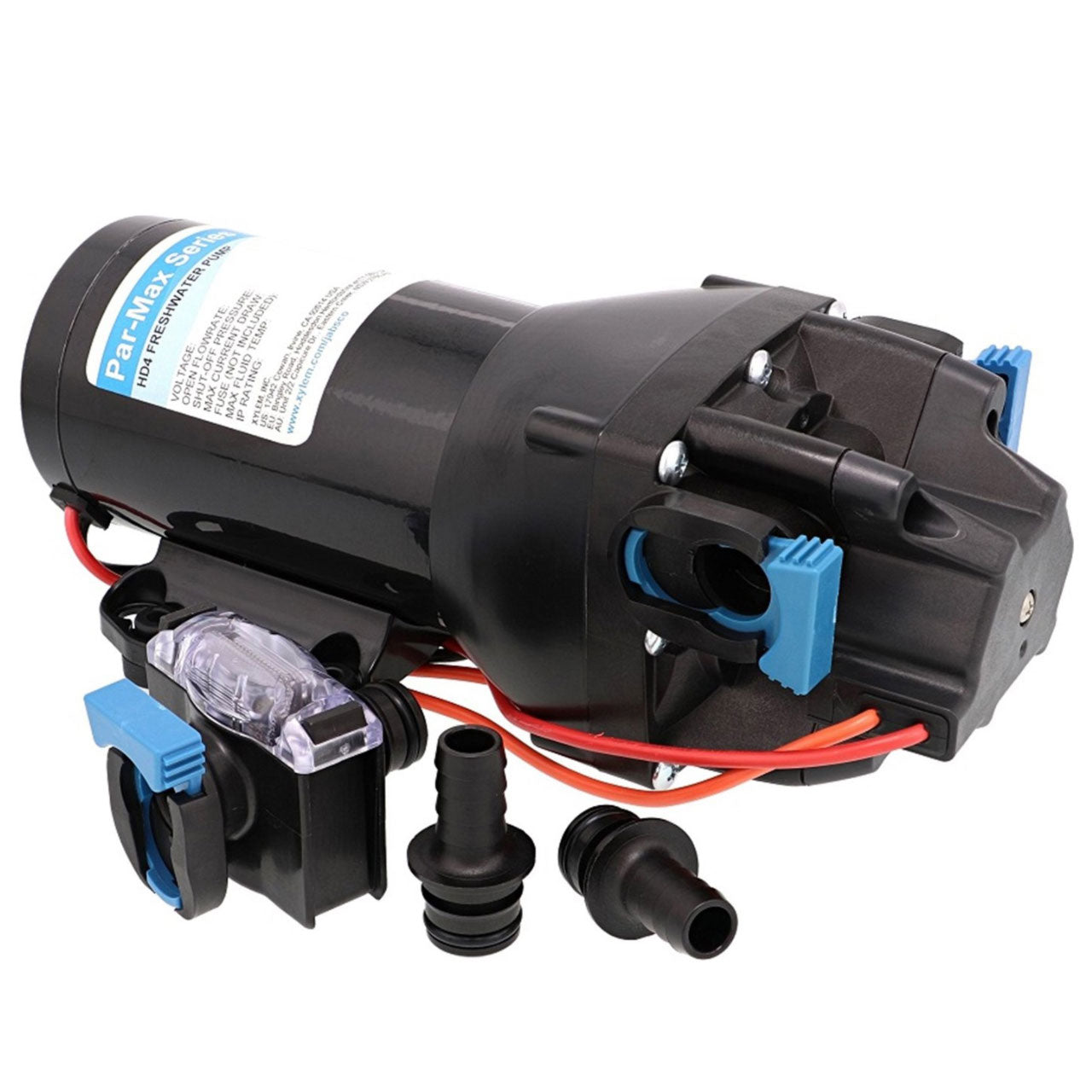

- Par-Max HD4 Freshwater Delivery Pump
- 24 Volt DC operation
- 4 Gallon Per Minute Open Flow Rate
- 40 PSI Shut-off pressure (2.8 BAR)
- 5 Max Current Amps
- 10 Amp Fuse Required
- Self-priming operation (7ft when dry)
- Runs dry without damage
- Includes a bypass module which reduces cycling and provides the user with an even flow
- two (2) 1/2 inch hose Barbs included (Quick Connect to Straight Hose Barb)
- Inline 40 Mesh Strainer Included
- Ignition Protected
- Certifications: CE, ISO8846, RCM
- IPX6 rated
- 9.4 In. Length x 4.1 In. Width x 3.8 inch Height
- 2 In. center to center mounting length
- 3.6 In. center to center mounting width
- Mounting feet with soft rubber mounts are designed to reduce and absorb noise
| # Ph Chambers: 4 |
| Application: Water Pressure System |
| Compliance: CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 (Ignition Protected) |
| Dry Self-Priming Height: 8' (2.4 m) |
| Duty Cycle Rating: Intermittent |
| Flow Rate: 4 GPM (15.1 LPM) |
| Fluid Temperature Range: 32°F (0°C) - 140°F (60°C) |
| Ingress Protection Rating: IPX6 |
| Lead Gauge: 14 AWG (2.5mm^2) |
| Max Amp Draw: 5 A |
| Motor Construction/Mat'Ls: Cast Aluminum; Coated Steel |
| Nominal Voltage: 24 V |
| Ports: 2 x 1/2" (13mm) Straight HB |
| Pressure Switch Setting: 40 PSI (2.8 Bar) |
| Pump Length: 9.4" (240 mm) |
| Pump Width: 4.1" (104 mm) |
| Pump Height: 3.8" (97 mm) |
| Pump Weight: 5.6 lb (2.3 kg) |
| Recommended Fuse Size: 10 A |
| Replaces: 31600-0094, 31620-0094, 32600-0094, 82400-0294, 82500-0294 |
| Warranty Period: 3 Years |
