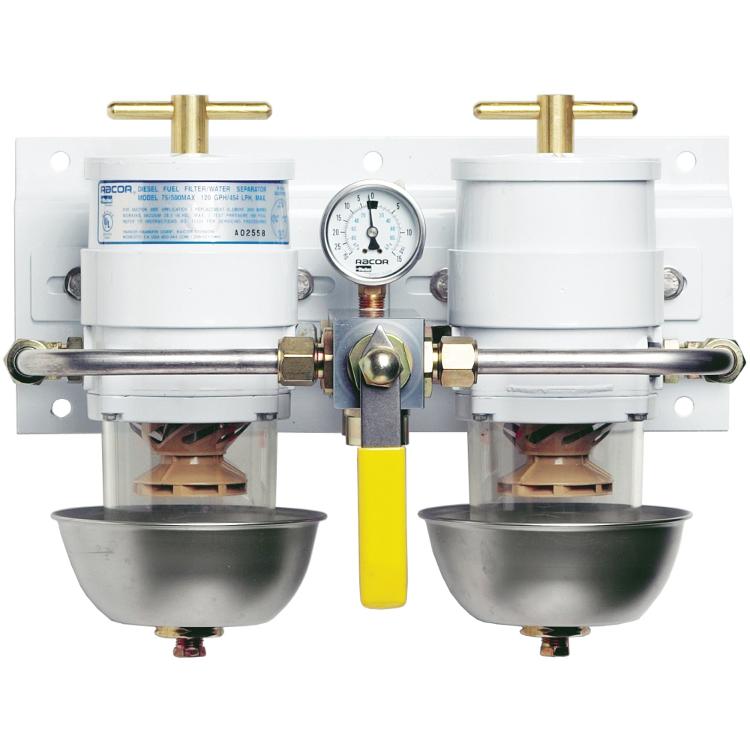

75500MAX30 Marine 500 Turbine Fuel Filter/WS, Shielded Bowl 30 Micron
DESCRIPTION
Marine Duplex 500 Turbine Series Diesel Fuel Filter/Water Separator provide your boat engine with clean, dry fuel with a flow up to 120 gph. The clear bowl allows easy monitoring of contaminants while the steel shield protects the bowl from heat. The 75500Max series of marine filters are designed to be installed on the vacuum side of the fuel transfer pump for best efficiency and protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water, which is prevalent in engine fuels.
- Valve can select either filter, both filters or shut off
- Shut off valve eases maintenance
- Vacuum/pressure gauge allows easy monitoring of filter element condition
- Clear engineering plastic bowl with stainless steel shield allows water and dirt removal
- 4-16 UNF-2B SAE 1926 O-Ring Boss Female
- Size: 11.5" H x 14.5" W x 9.88" D
- Made in the USA
- Separation
- Fuel enters the filter assembly
- Centrifuge spins off large solids and water droplets
- Contaminates fall to the bottom of the collection bowl
- Coalescing
- Small water droplets bead-up on the surface of the(more...)
