DESCRIPTION

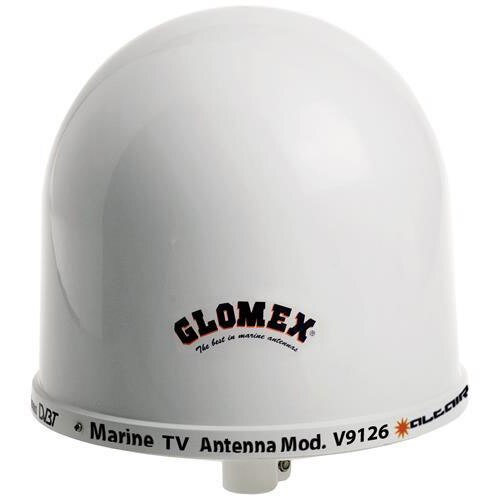

The Altair AGC 10" TV Antenna Dome gives you an easier way to watch TV on your boat with Automatic Gain Control. Thanks to the AGC amplifier, you just turn on the TV and the antenna. The AGC will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts. The Altair AGC comes with a nylon mount and can even be placed in a hidden location inside the boat.
Supplied Accessories
- 50023/14 Automatic Gain Control Amplifier
- 66' COAXIAL CABLE to connect the antenna to the amplifier
- 5' Set Cord to connect the amplifier to the TV
- Nylon Mount
Altair is an Omni-directional TV antenna ensuring high performance in reception of both horizontally and vertically polarized signals.
TECHNICAL SPECIFICATIONS
Antenna Diameter - 10"
Antenna Height - 12"
Base Diameter - 1"
Antenna Weight - 15.17 Oz
Radome Material - U.V. Resistant Asa
Angle Of Reception - 360 Deg.
Polarization - Horizontal / Vertical
Impedance - 75 Ohms
Frequency Range - 40/890 Mhz
Gain Average - 27.5 Db
Noise Factor - 2.1 Db
Power Consuption - 25 Ma
Power Supply - 12/24 Vdc
Automatic Gain - Yes
Tv Set Max - 2
Termination - F Female
Connector Supplied - F Male Gold Plated Connector (V9144)
A/B Switch - No
Altair is equipped with an amplifier that has a by-pass function (50023/98) for areas where there is too much signal. In order to keep a balanced look to your boat, Altair can be matched to our VHF RA124, as they are identical in shape and size.
