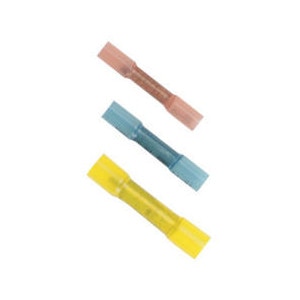

Ancor, Adhesive Lined Heat Shrink Butt Connectors

Mfr: Ancor
$4.15 to $199.95
$4.15 to $199.95

DESCRIPTION

Ancor, Adhesive Lined Heat Shrink Butt Connectors. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257 Deg. F/125 Deg. C
  • Operating temperature range 40 Deg. C to 110 Deg. C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

Both the Adhesive Lined Heat Shrink Tubing (ALT) and the Adhesive Lined Heat Shrink Connector (ALC) insulate and protect connections from mechanical abuse, wire pullout and abrasion. The heat activated adhesive melts and flows under pressure from shrinking to create a seal which resists salt water, oil, gasoline and other environmental contaminants.

SPECS

Item #
MPN
Wire Size
mm
Color
Quantity per Pkg.
Adhesive Lined Heat Shrink Butt Connector, 12-10 ga. (100)
Item #:531286-12-10AWG-YWL-100
MPN:309299
Wire Size: 12-10 AWG
mm: 3-5
Color: Yellow
Quantity per Pkg.: 100
Adhesive Lined Heat Shrink Butt Connector, 8 ga. (3)
Item #:531286-8AWG-RED-3
MPN:309303
Wire Size: 8 AWG
mm: 8
Color: Red
Quantity per Pkg.: 3
Adhesive Lined Heat Shrink Butt Connector, 8 ga. (25)
Item #:531286-8AWG-RED-25
MPN:309325
Wire Size: 8 AWG
mm: 8
Color: Red
Quantity per Pkg.: 25
Adhesive Lined Heat Shrink Butt Connector, 22-18 ga. (3)
Item #:531286-22-18AWG-RED-3
MPN:309003
Wire Size: 22-18 AWG
mm: 0.3-0.8
Color: Red
Quantity per Pkg.: 3
Ancor, Adhesive Lined Heat Shrink Butt Connectors
Item #:531286-RED-22-18AWG-500
MPN:309002
Wire Size: 22-18 AWG
mm: 0.3-0.8
Color: Red
Quantity per Pkg.: 500
Adhesive Lined Heat Shrink Butt Connector, 22-18 ga. (25)
Item #:531286-22-18AWG-RED-25
MPN:309025
Wire Size: 22-18 AWG
mm: 0.3-0.8
Color: Red
Quantity per Pkg.: 25
Adhesive Lined Heat Shrink Butt Connector, 22-18 ga. (100)
Item #:531286-22-18AWG-RED-100
MPN:309099
Wire Size: 22-18 AWG
mm: 0.3-0.8
Color: Red
Quantity per Pkg.: 100
Adhesive Lined Heat Shrink Butt Connector, 16-14 ga. (3)
Item #:531286-16-14AWG-BLU-3
MPN:309103
Wire Size: 16-14 AWG
mm: 1-2
Color: Blue
Quantity per Pkg.: 3
Adhesive Lined Heat Shrink Butt Connector, 16-14 ga. (25)
Item #:531286-16-14AWG-BLU-25
MPN:309125
Wire Size: 16-14 AWG
mm: 1-2
Color: Blue
Quantity per Pkg.: 25
Adhesive Lined Heat Shrink Butt Connector, 16-14 ga. (100)
Item #:531286-16-14AWG-BLU-100
MPN:309199
Wire Size: 16-14 AWG
mm: 1-2
Color: Blue
Quantity per Pkg.: 100
Adhesive Lined Heat Shrink Butt Connector, 12-10 ga. (3)
Item #:531286-12-10AWG-YWL-3
MPN:309203
Wire Size: 12-10 AWG
mm: 3-5
Color: Yellow
Quantity per Pkg.: 3
Adhesive Lined Heat Shrink Butt Connector, 12-10 ga. (25)
Item #:531286-12-10AWG-YWL-25
MPN:309225
Wire Size: 12-10 AWG
mm: 3-5
Color: Yellow
Quantity per Pkg.: 25
