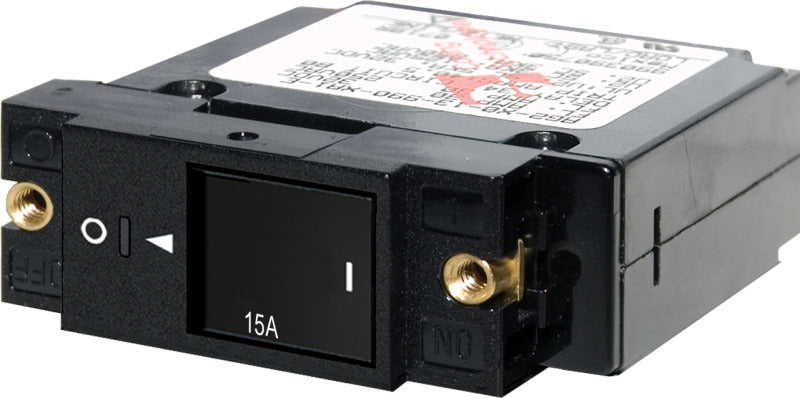

Blue Sea Systems A-Series Single Pole AC / DC Circuit Breaker, Restricted Off Rocker

Mfr: Blue Sea Systems
$17.29 to $19.67
$17.29 to $19.67
Blue Sea Systems A-Series Single Pole AC / DC Circuit Breaker, Restricted Off Rocker.

  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Restricted OFF actuator can only be switched to OFF by insertion of small screwdriver into slot
  • Actuator shows white in the OFF position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Prevents accidental switching of 24 hour circuits
  • International ON/OFF symbols support vertical or horizontal mounting
  • Interrupt Rating: 5,000A@32V DC, 3,000A@125V AC, 1,500A@240V AC
  • Maximum Voltage: 32V DC, 240V AC
  • Circuit Breaker Type: Magnetic Hydraulic-Trip free
  • Operating Temperature Range: -40 Deg. C to +85 Deg. C
  • Terminal Screw: 30 Deg. Angled #10-32 x 5/16 SS SEM LOAD, external tooth lock washer-Recommended torque 14-15 in-lb
  • Rated Switch Cycles: 10,000 @ rated amperage and voltage
  • Mounting Screw: #6-32 Stainless Steel - Recommended torque 6-8 in-lb

Item #
MPN
Amps
Blue Sea Systems, Circuit Breaker, Slot Rocker, AC / DC, Restricted Off, Single Pole, 5A
Item # : 531231-5AMPS
MPN : 7425
Amps : 5 Amps
Blue Sea Systems, Circuit Breaker, Slot Rocker, AC / DC, Restricted Off, Single Pole, 25 Amp
Item # : 531231-25AMPS
MPN : 7430
Amps : 25 Amps
Blue Sea Systems, Circuit Breaker, Slot Rocker, AC / DC, Restricted Off, Single Pole, 15A
Item # : 531231-15AMPS
MPN : 7428
Amps : 15 Amps
Blue Sea Systems, Circuit Breaker, Slot Rocker, AC / DC, Restricted Off, Single Pole, 10A
Item # : 531231-10AMPS
MPN : 7427
Amps : 10 Amps
