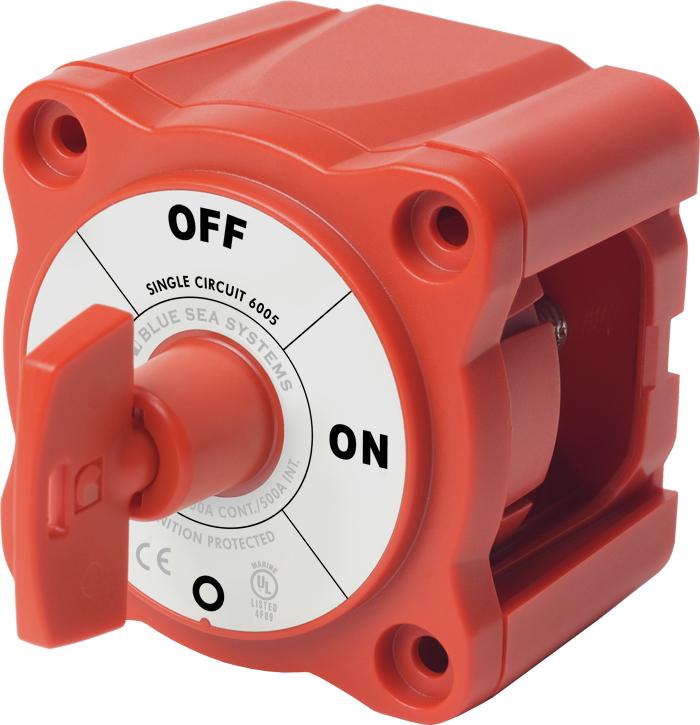

Blue Sea Systems, m-Series, Battery Switch, Single Circuit, On - Off, w/ Key

Mfr: Blue Sea Systems
$25.69 to $26.11
$25.69 to $26.11
Blue Sea Systems, m-Series, Battery Switch, Single Circuit, On - Off, w/ Key.

  • Switches a single battery to a single load group
  • 300 Amps continuous rating for outboards and small gasoline or diesel engines
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • One-piece terminal stud design never loosens over time
  • Isolating cover with three snap-in side pieces protects rear contactsand allows wire access in any direction
  • Case design allows surface, rear, or front panel mounting options
  • Removable key
  • Cranking Rating: 10 sec. - 1,500A
  • Cranking Rating: 1 min. - 775A
  • Intermittent Rating: 5 min. - 500A
  • Continuous Rating: 300A
  • Voltage Maximum Operating: 48V DC

Item #
MPN
Color
Blue Sea Systems, 6005 m-Series, Battery Switch, Single Circuit, On/Off, w/ Key, Red
Item #:531391-RED
MPN:6005
Color: Red
Blue Sea Systems, m-Series, Battery Switch, Single Circuit, On/Off, w/ Key, Black
Item #:531391-BLK
MPN:6005200
Color: Black
