Blue Sea M-Series Mini On-Off Battery Switch with Knob

$29.95 to $49.50
$29.95 to $49.50
Switches a single battery to a single load group
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
Item #
MPN
Switch Type
Color
Switch Positions
Max. Volt
Stud Size
Continuous Rating
Intermittet Rating
Cranking Rating 30 sec
Blue Seas M-Series Mini On-Off Battery Switch with Knob, 2 Pos., Black
Item #:543656-Black-Dual Circuit-Full Knob
MPN:6010200
Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Max. Volt: 32V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 450A (5 min)
Cranking Rating 30 sec: 675A per circuit

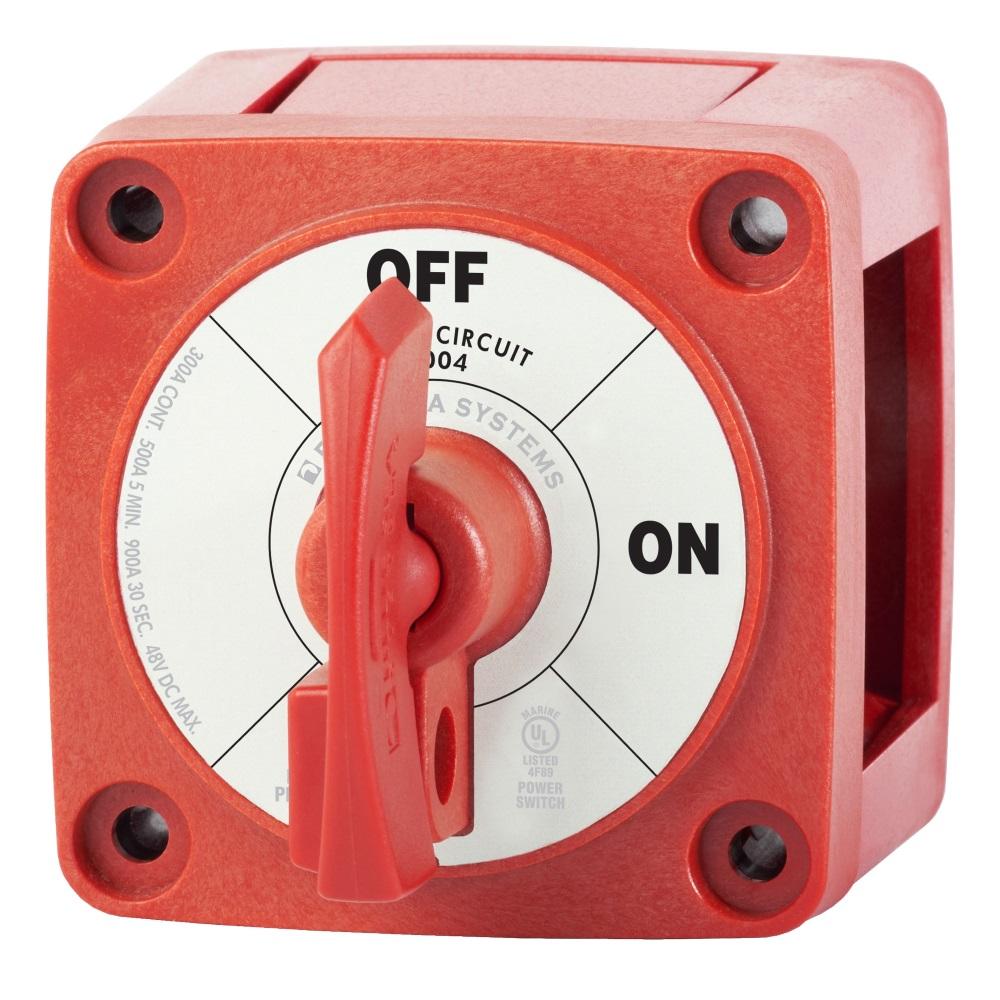

Blue Sea 6004 Battery Switch, Mini On/Off w/Locking Key, Red
Item #:543656-Red-SC-On-Off-Twist Knob
MPN:6004
Switch Type: Single Circuit ON-OFF
Color: Red
Switch Positions: 2
Max. Volt: 48V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 500A
Cranking Rating 30 sec: 900A
Blue Seas M-Series Mini On-Off Battery Switch with Knob
Item #:543656-Red-Selector 4 Position-Full Knob
MPN:6007
Switch Type: Selector 4 Position
Color: Red
Switch Positions: 4
Max. Volt: 32V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 500A (5 min)
Cranking Rating 30 sec: 900A

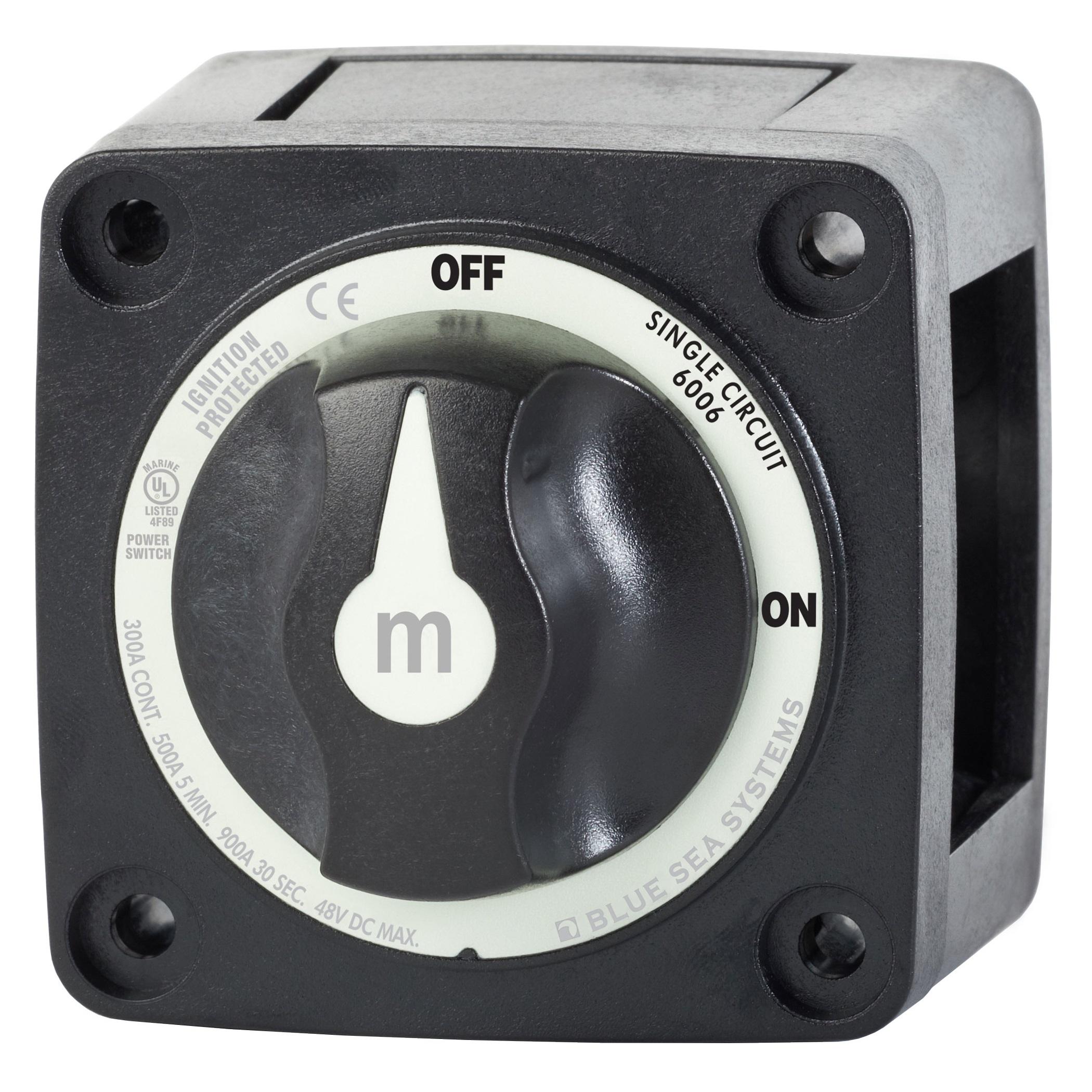

Blue Seas M-Series Mini On-Off Battery Switch with Knob
Item #:543656-Black-SC-On-Off-Full Knob
MPN:6006200
Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Max. Volt: 48V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 500A (5 min)
Cranking Rating 30 sec: 900A
Blue Seas M-Series Mini On-Off Battery Switch with Knob, Black, 3 Pos.
Item #:543656-Black-Dual Circuit Plus-Full Knob
MPN:6011200
Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Max. Volt: 32V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 450A (5 min)
Cranking Rating 30 sec: 675A per circuit
Blue Seas M-Series Mini On-Off Battery Switch with Knob
Item #:543656-Red-Dual Circuit Plus-Full Knob
MPN:6011
Switch Type: Dual Circuit Plus
Color: Red
Switch Positions: 3
Max. Volt: 32V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 450A (5 min)
Cranking Rating 30 sec: 675A per circuit

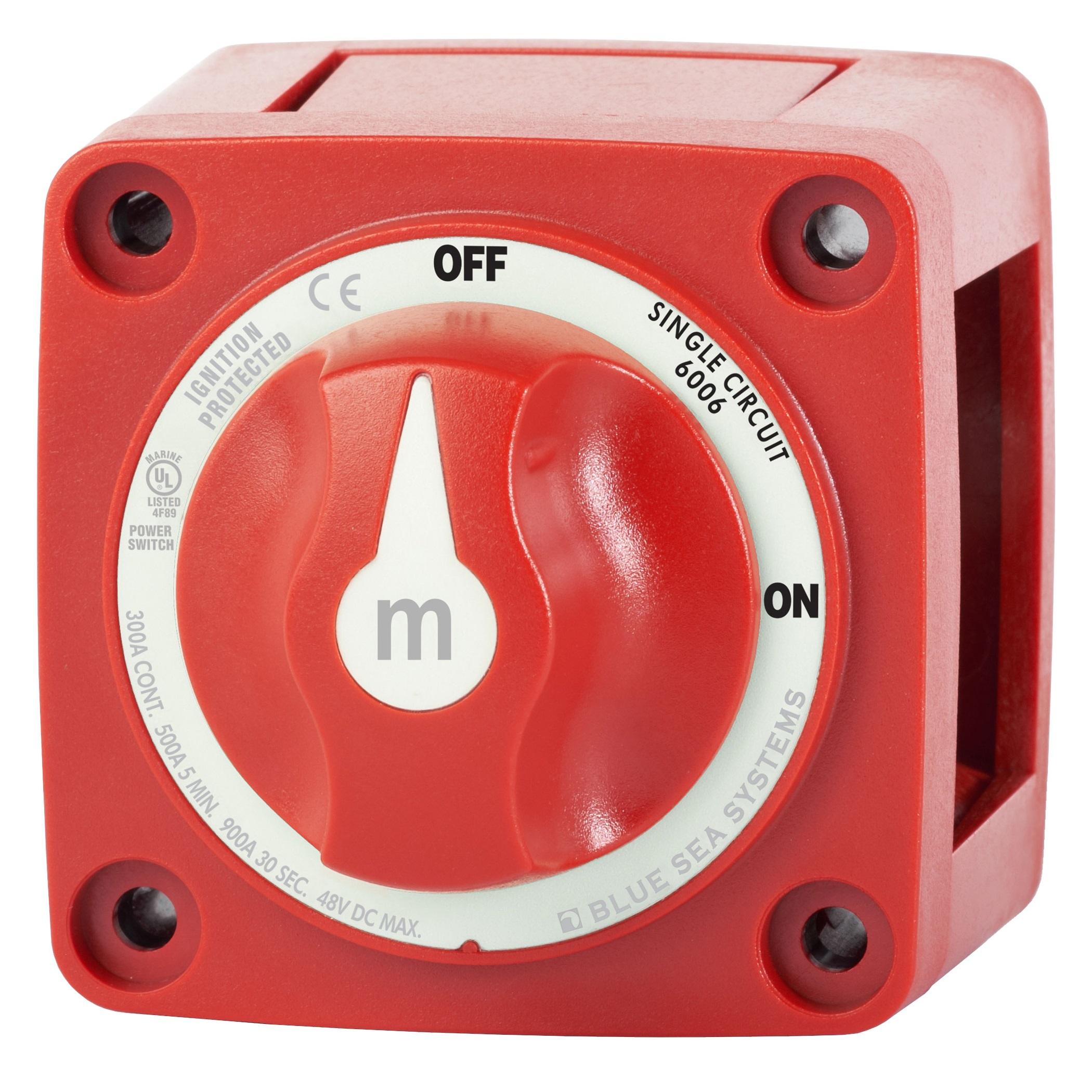

Blue Seas M-Series Mini On-Off Battery Switch with Knob
Item #:543656-Red-Single Circuit On-Off-Full Knob
MPN:6006
Switch Type: Single Circuit ON-OFF
Color: Red
Switch Positions: 2
Max. Volt: 48V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittet Rating: 500A (5 min)
Cranking Rating 30 sec: 900A
