DF-4408-4 Series Dual-Flex Marine and Industrial Engine Mount

Mfr: Bushings
$116.13 On Sale
ONLINE ONLY
0 No Reviews yet
Engine Mount, Dual-Flex Series DF-4408-4 , Bushings, Inc.
SKU: 94006
|
Mfg# DF-4408-4
|
UNIT: Each
Fits: Caterpillar, Cummins, Detroit Diesel, Duetz, Ford, Iveco, John Deere, Volvo Diesel
Typically Ships Out in 2 Business Days



DF-4408-4 Dual-Flex Marine Engine Mount is an industrial strength mount for 2,500 to 2,800 pound engines needing to face the rigors of extreme temperatures, exposure to salt, oil & grease. the DF-4408-4 mount is a truly flexible engine mount that provides soft cushioning under normal loads and increased resistance as loads progress with minimal deflection.

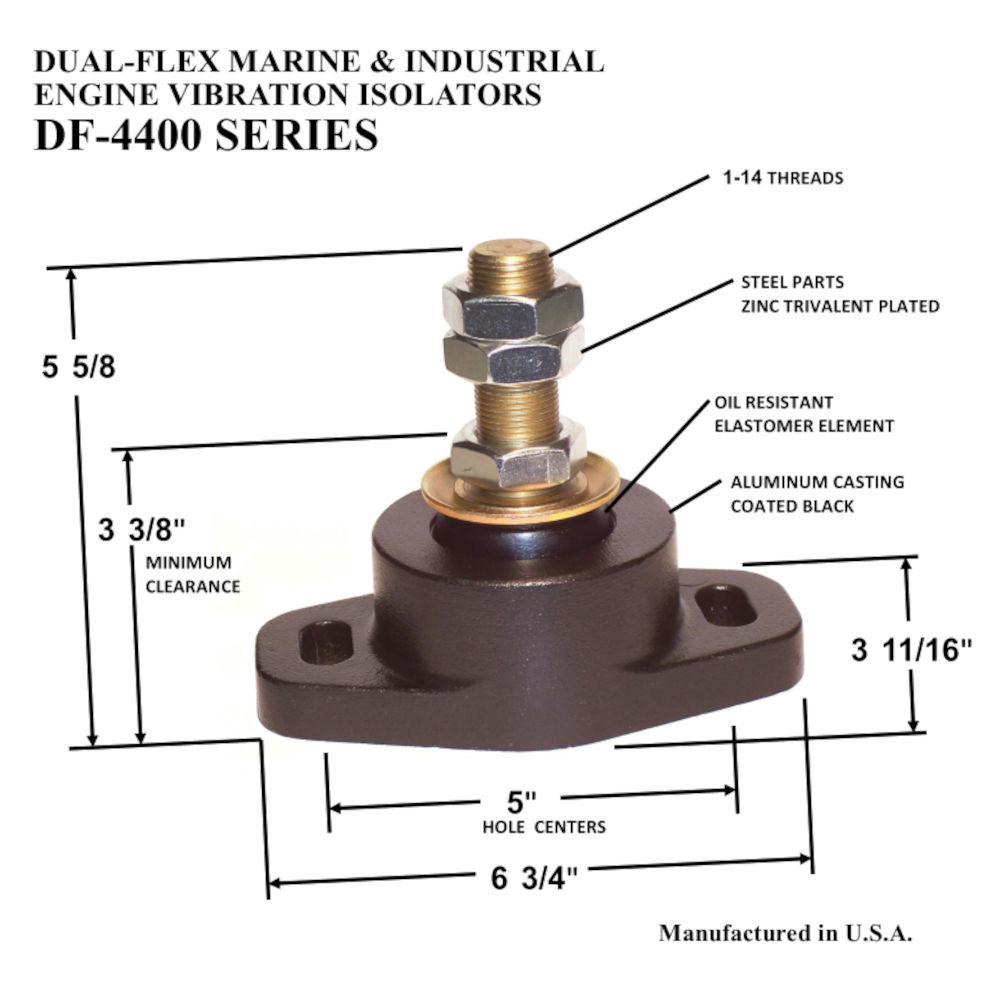

  • No metal-to-metal contact at any point over the weight range potential eliminating any danger of excessive impact
  • Aluminum 356-T6 casting
  • All steel parts are zinc dichromate plated
  • Weight range 2500 - 2800 lbs.
  • Slotted casting for horizontal adjustment
  • Zinc dichromate plated stud on 5" centers with 1"-14 threads
  • 5-5/8" overall height
  • 3-3/8" minimum clearance
  • 6-3/4" overall width, 3-11/16" depth
  • Mounting holes on 5" centers for 1/2" bolts or lag screws
Engines: Caterpillar Diesel: 3208 (500-700HP); Cummins Diesel: V-903-M (>340HP), NTA855, QSM 11 (215-635 HP); Detroit Diesel: 471TI/6-71, 6-71TI/6V71, 6V71TA (305-360HP); Duetz : V-6 & V-8 Engines (250-550HP); Ford : Lehman & Merlin Diesel (300-475 HP); Iveco: 8281SRM70 (500-700HP); John Deere 9.0L (325-500HP), 12.5L (240-450HP); Volvo TMD120A, TAMD120A, TAMD122 (260-450HP
