DESCRIPTION

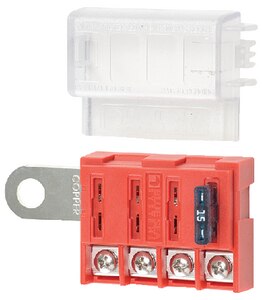

- Easy to install 4 ATO®/ATC® fused circuits
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Four Nylon insulated ring terminals included
- Insulating cover included
- Accepts Small Format Circuit Labels
- Includes 1 fuse
Specifications Circuits 4 Maximum Amperage 100A per block
30A per circuitMaximum Voltage 32V DC Mounting Clearance for 3/8" [M10] stud Screw Terminal Torque 18 in-lb (2.03 Nm) Screw Terminal Type #8-32 Screws with captive star lock washer Weight 0.25lb (0.11 kg)
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.
