Coastal MK3 Digital Thermostat, 12v, Pre-Wired
The Coastal MK3 Digital Control lets you set and monitor your boat's refrigerator or freezer with a 12v Thermostat/Thermometer that features a compressor fault indicator LED on the faceplate. If your compressor has stopped for a fault reason, the LED flashes 1, 2, 3, 4, or 5 times to indicate where to look for the problem. The Costal MK3 makes troubleshooting faster and easier.

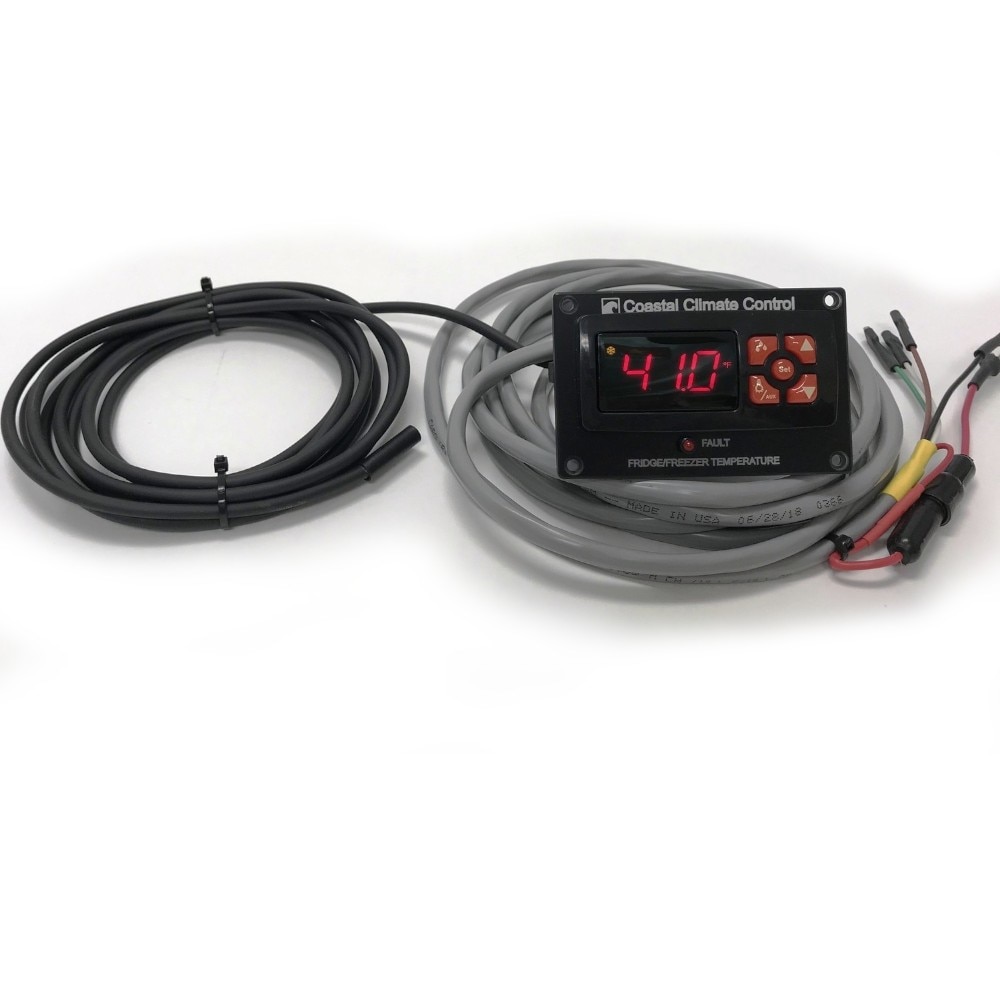

The MK3's LED display panel can be mounted conveniently where you can clearly see what your refrigerator/freezer box temperature is at any time. and the kit comes pre-wired with a fused 10' cable of five wires, and a sensor with a 10' lead. Both can be extended, if necessary. The MK3 sensor reads box air temperature not the temperature of plate as a mechanical thermostat does.
- Troubleshooting LED blinks as a fault indicator
- LED flash code indicates fault location
- Sensor recognizes the box air temperature (not plate temp.)
- Use for refrigerator or freezer applications
- Easy to use buttons for set-point and other parameter adjustments
- Constant temperature display lets you know if your system is running normally or not
- Audible alarms for high and low temperatures are set by you
- Mounting plate measures 3-1/2” x 2-1/4”
- Pre-wired with a fused 10' cable of five wires
- Sensor includes a 10' lead
- Shipped in Fahrenheit but easily switched to Celsius

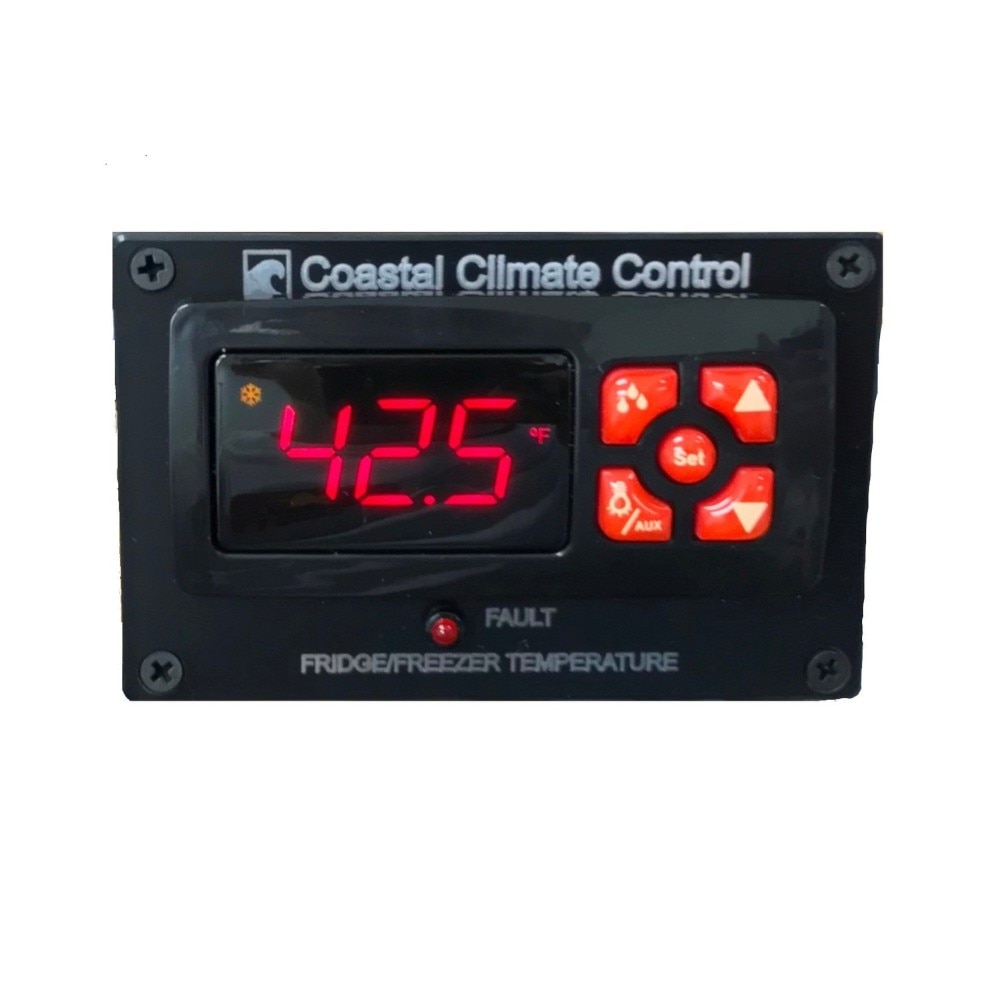

The Coastal MK3 Digital Thermostat/Thermometer comprises of a thermostat unit mounted in a plastic mounting plate measuring 3.5” x 2.25”. The front panel incorporates a three-digit red display with five-button control panel, and a Fault LED. The display shows degrees and tenths of degrees, and can be set to work in either Fahrenheit or Celsius. The assembly is pre-wired with a fused 10’ cable harness and push-on connectors to facilitate easy installation. A 10’ temperature sensor probe is pre-wired, and the mounting plate is drilled for the black screws provided.
