DESCRIPTION

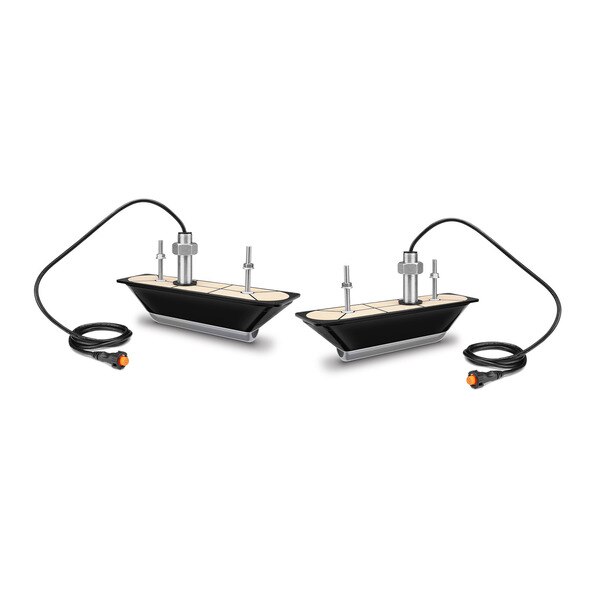

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

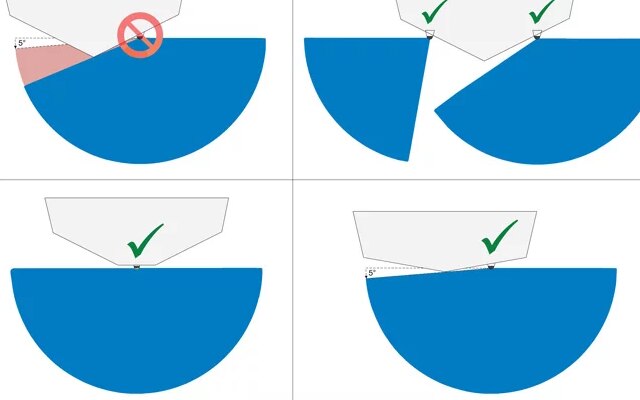

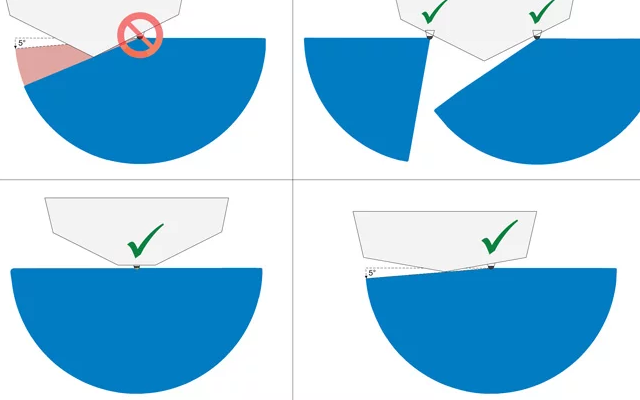

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

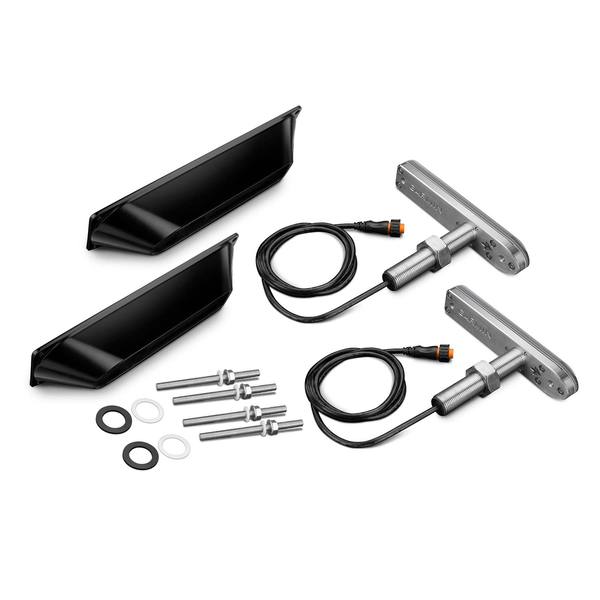

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.
Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
- Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Power:ClearVü/SideVü 500 W
- Beamwidth:ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
- Maximum depth:ClearVü: 750 ft.; SideVü: 500 ft.
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins:12-pin
- Cable length:5 ft. + 30 ft. y-extension cable
- Supported deadrise/Transom angles: Up to 25° deadrise
