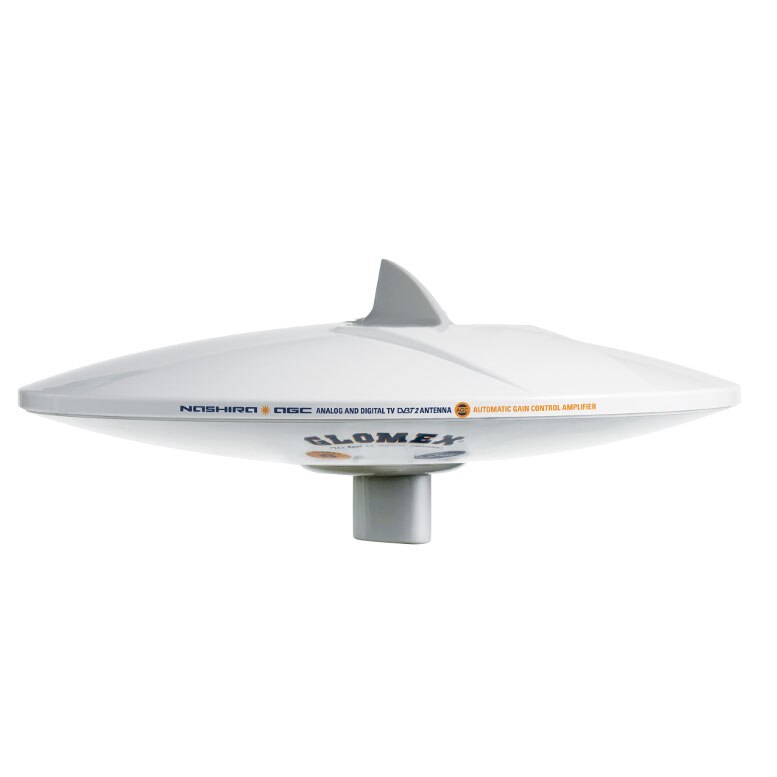

Glomex, Nashira 14" Omnidirectional TV Antenna with Automatic Gain Control
The 14" Nashira AGC TV Antenna eases watching TV on your boat. With the innovative Glomex automatic gain control (AGC) amplifier you only have to turn on the TV and the antenna. The AGC will adjust the gain of the TV signal by itself to ensure the best possible reception of broadcasts.
Everything happens automatically with the Nashira antenna and this innovative amplifier can be placed in a hidden location inside the boat. It can also receive AM-FM radio frequencies.
- 50023/14 Automatic gain control amplifier
- 66' coaxial cable to connect the antenna to the amplifier
- 5' set cord to connect the amplifier to the TV
- V9144 Female gold plated connector
Glomex recommends mounts and (sold separately)TECHNICAL SPECIFICATIONS
Antenna Diameter - 14"
Antenna Height - 9.5"
Base Diameter - 16"
Antenna Weight - 34.39 Oz
Radome Material - U.V. Resistant Asa
Angle of Reception - 360 Deg.
Polarization - Horizontal / Vertical
Impedance - 75 Ohms
Frequency Range - 40/890 Mhz
Gain Average - 27.5 Db
Noise Factor - 2.1 Db
Power Consumption - 20 Ma
Power Supply - 12/24 Vdc
Antenna Amplifier /By Pass - Yes
Adjustable Gain - Yes
TV Set Max - 2
Termination - F Female
Connector Supplied - F Male Gold Plated Connector (V9144)
A/B Switch - No Glomex(PDF)
