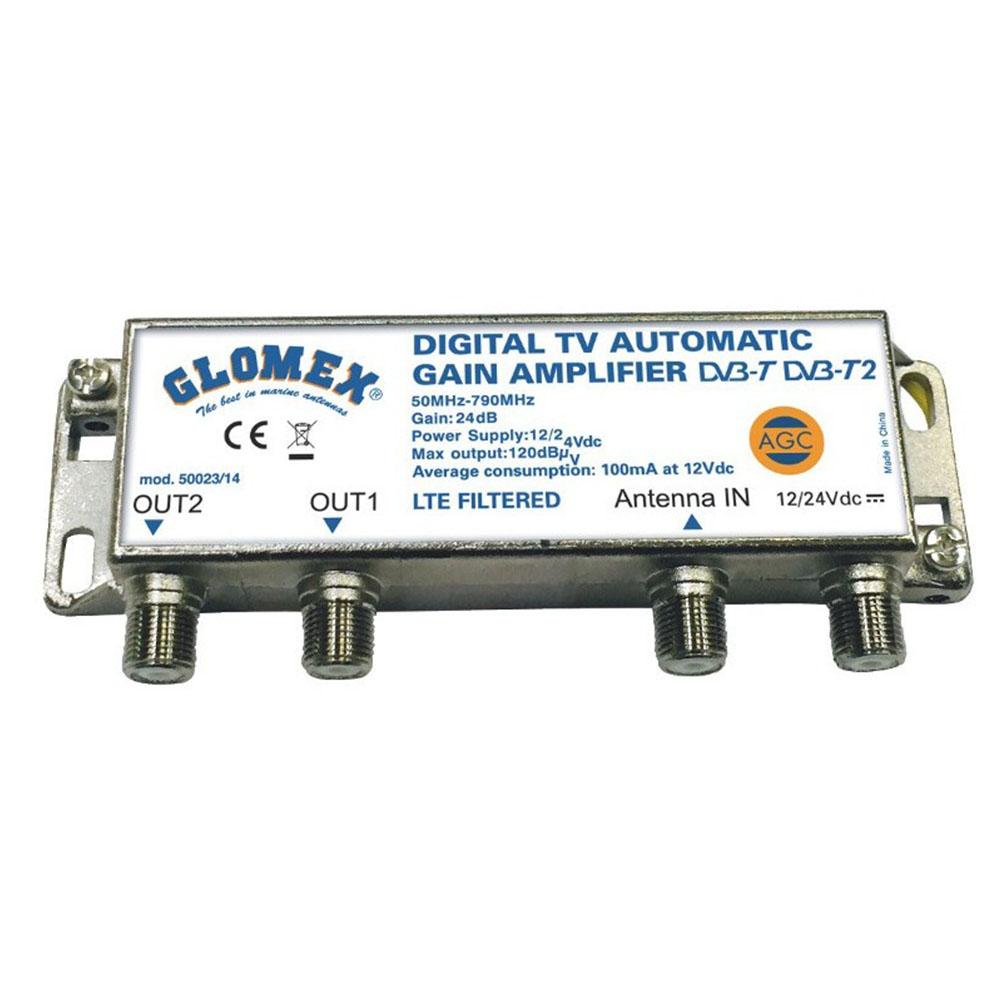

Glomex TV Antenna Amplifier, 50023/14

Mfr: Glomex
$63.00

Glomex TV Antenna Amplifier, 50023/14
SKU: 528606
|
Mfg# 50023/14
|
UNIT: Each
Typically Ships Out in 1-2 Business Days

GLOMEX 50023/14 automatic antenna amplifier, can be used as a distribution amplifier for terrestrial TV signals or as a spare part for GLOMEX Nashira V9112 DVB-T antennas.


Technical specifications:
  • Frequency range: 50 - 790 MHz
  • Integrated LTE filter
  • Gain of 24 dB
  • Max. output level: 120 dB_V
  • Power supply: 12/24 V DC
  • Current consumption: Approx. 100 mA @ 12 V

  • Connections:
  • 3x F-connectors (1x input, 2x output)
  • DC connector
  • 2-wires, red = POS, black = NEG
  • Cable length: Approx. 25 cm
  • Incl. flying fuse: 250 mA (5x20mm fuse)
  • 2 terminals for potential equalization / ground connections (4 mm_ max.
  • Line cross-section)

  • Dimensions:
  • LxWxH: 124 x 47 x 21 mm
  • Mounting holes ΓΈ 4.5 mm, spacing: 113.5 mm
  • Ratings & Reviews

    No reviews available

    Be the first to Write a Review

    Warranty:

    The length of the warranty may vary by product, please refer to your product for the exact terms and conditions of the warranty for your purchase.

    Return:

    • All returns must be recevied within 30 days of receipt.
    • Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval.
    • Please contact Go2marine LFS Marine and Outdoor for Manufacture Defects, Returns and help with Warranties.
