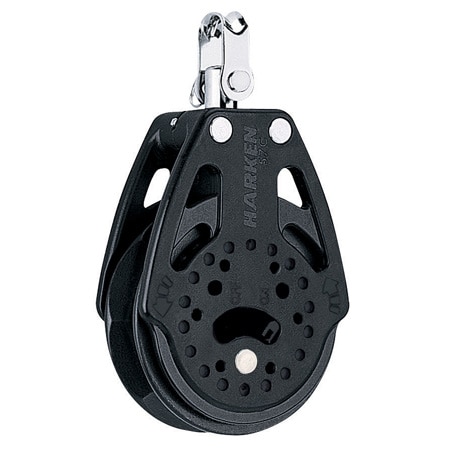

Harken, Blocks, Ratchet Carbo Blocks, Single - Swivel

Mfr: Harken
$54.30 to $64.15
$54.30 to $64.15

Carbo ratchet blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

40 mm:The 40 mm ratchets are ideal for jib sheets and spinnakers where size and weight are critical. The 2608, 2609, and 2614 have on/off switches; other 40 mm ratchets are always in ratchet mode.

57 mm & 75 mm:The 57 mm and 75 mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.

For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic block directly above for double holding power in heavy air and a free-running mainsheet when itÕs light. The 75 mm provides up to 15:1 holding power; the 57 mm 10:1.

  • Perfect for hand holding loaded lines with controlled release
  • The 57mm ratchet provides sailors with up to 10:1 additional holding power
  • The 75mm provides a 15:1 advantage
  • Accessible and easy-to-operate on/off switches (found in the center airhole) on both sides of the block
  • Machined Hardkote-anodized aluminum sheaves have eight facets to hold line securely
  • Sheave diameter: 1 - 9/16" (40mm) 2-1/4" (57mm) and 2-(75mm)
  • Maximum line size: 3/8" (40mm) 3/8" (57mm) and 7/16" (75mm)
  • Includes fasteners and mounting pad
Item #
MPN
SWL
BL
Shackle Pin Dia.
Max Line
Length
Type
Weight
Harken, 40mm Carbo Ratchet Block, Single - Swivel
Item #:533171-40mm
MPN:2608
SWL: 300 lbs.
BL: 1,000 lbs.
Shackle Pin Dia.: 5/32"
Max Line: 3/8"
Length: 3-5/8"
Type: Single/Swivel
Weight: 2 oz.
Harken, 57mm Carbo Ratchet Block, Single - Swivel
Item #:533171-57mm
MPN:2135
SWL: 500 lbs.
BL: 2-1/4"
Shackle Pin Dia.: 3/8"
Max Line: 57mm Single/Swivel
Length:
Type:
Weight:
