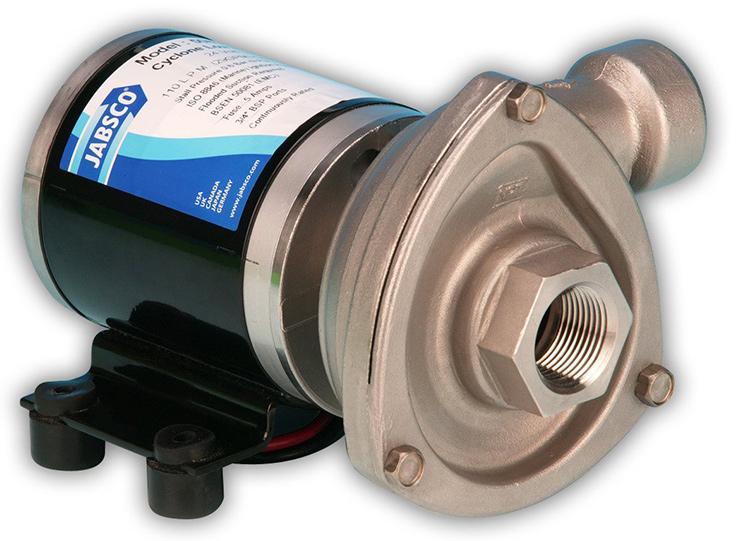

Jabsco, Low Pressure, Cyclone Centrifugal Pump, Stainless Steel DC Motor / Pump Unit, 50840 Series

Mfr: Jabsco
$497.27 to $509.19
QuantityPrice

$497.27 to $509.19
QuantityPrice

DESCRIPTION

Jabsco, Low Pressure, Cyclone Centrifugal Pump, Stainless Steel DC Motor/Pump Unit, 50840 Series.

  • Flow rate: 29.7 gpm (110 Liters/min)
  • Pressure up to 0.6 bar (8.7 psi)
  • Heavy duty robust stainless steel construction
  • One tool servicing (3/8" Spanner)
  • Virtually silent running centrifugal pump
  • Long-life DC motor
  • Rotatable head 90 Deg.
  • Segments
  • Anti-clogging impeller design
  • Long-life mechanical seal
  • Body: Stainless steel
  • Port Type: 3/4" (19mm)
  • Voltage: 12 or 24 volt
  • Motor Brush Life: 3,500 hrs
  • Duty Cycle: Continuously rated @ 20 Deg. C ambient, 20 Deg. C Fluid temperature at 2.5 meters of water (0.25 bar)
  • Weight: 6.3 lb (2.88kg)

ISO 8846 MARINE and USCG Regulations for Ignition Protection
ISO 8849 MARINE Bilge Pump Standard Jabsco (PDF)

SPECS

Item #
MPN
Volts
Current
Fuse Size
Port Type
Jabsco, Low Pressure Cyclone Centrifugal Pump, SS Motor/Pump Unit, 24 volt, 50840-0024
Item #:531909-24Volt
MPN:50840-0024
Volts: 24 volt
Current: 4.5 amp
Fuse Size: 7 amp
Port Type: 3/4" FNPT
Jabsco, Low Pressure Cyclone Centrifugal Pump, SS Motor/Pump Unit, 12 volt, 50840-0012
Item #:531909-12Volt
MPN:50840-0012
Volts: 12 volt
Current: 9 amp
Fuse Size: 10 amp
Port Type: 3/4" FNPT
