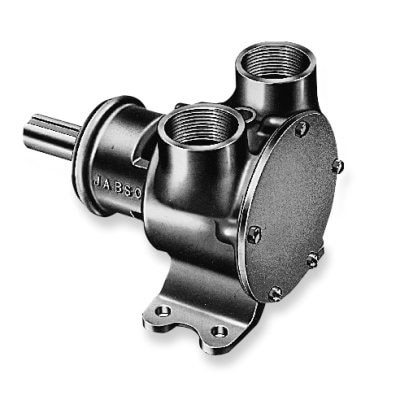

Jabsco, Self-Priming, 1-1/4" Bronze Pedestal Impeller Pump, Caterpillar, 7420 Series

Mfr: Jabsco
$642.64 On Sale

0 No Reviews yet
Jabsco, Self-Prime Bronze Pedestal Impeller Pump, 1-1/4", Short Shaft, 7420-1001
SKU: 70537
|
Mfg# 7420-1001
|
LFS# JAB74201001
|
UNIT: Each
Cam: Full ThicknessImpeller: Neoprene ImpellerShaft: Short S.S. Shaft , For Caterpillar Engines
In Stock - Ships out in 1 Business Day

DESCRIPTION

Jabsco, Self-Priming, 1-1/4" Bronze Pedestal Impeller Pump, Caterpillar, 7420 Series.

  • Flow rate: Nominal 44.4 gpm (200 Litres/min) at 1,500 rpm
  • Self-priming from dry up to 7.8' (2.4m)
  • Constructed from marine quality bronze and stainless steel for ruggedness and reliability
  • Inexpensive to buy and operate, easy to service and maintain
  • Will tolerate abrasive wear
  • Handles hard and soft solids without clogging
  • Can pump in either direction
  • Will not airlock
  • Body: Bronze
  • Impeller: Neoprene
  • Shaft: Type 316 Stainless Steel
  • Wearplate: Replaceable
  • Shaft Seal: Carbon-Ceramic Face Type
  • Bearings: Pre-lubricated Double Row Ball
  • Port Type: 1-1/4" (32mm) NPT Internal
  • Weight: 10-1/2 lb (4.8kg)
  • See link below for exploded parts view

MARINE: Pumping bilges, Washdown, Engine Cooling.

INDUSTRIAL: Circulating and Transferring liquids, Velocity-mixing, Transferring soap, liquors, pastes, glues, glycerine, lotions and brine.

FARM: Pumping water for stock and poultry houses and Booster Pumping.

PLUMBING & HOME: Pumping out flooded basements, cesspools, sumps and many other uses.

Product Specs and Installation Instructions and Diagrams
