Description

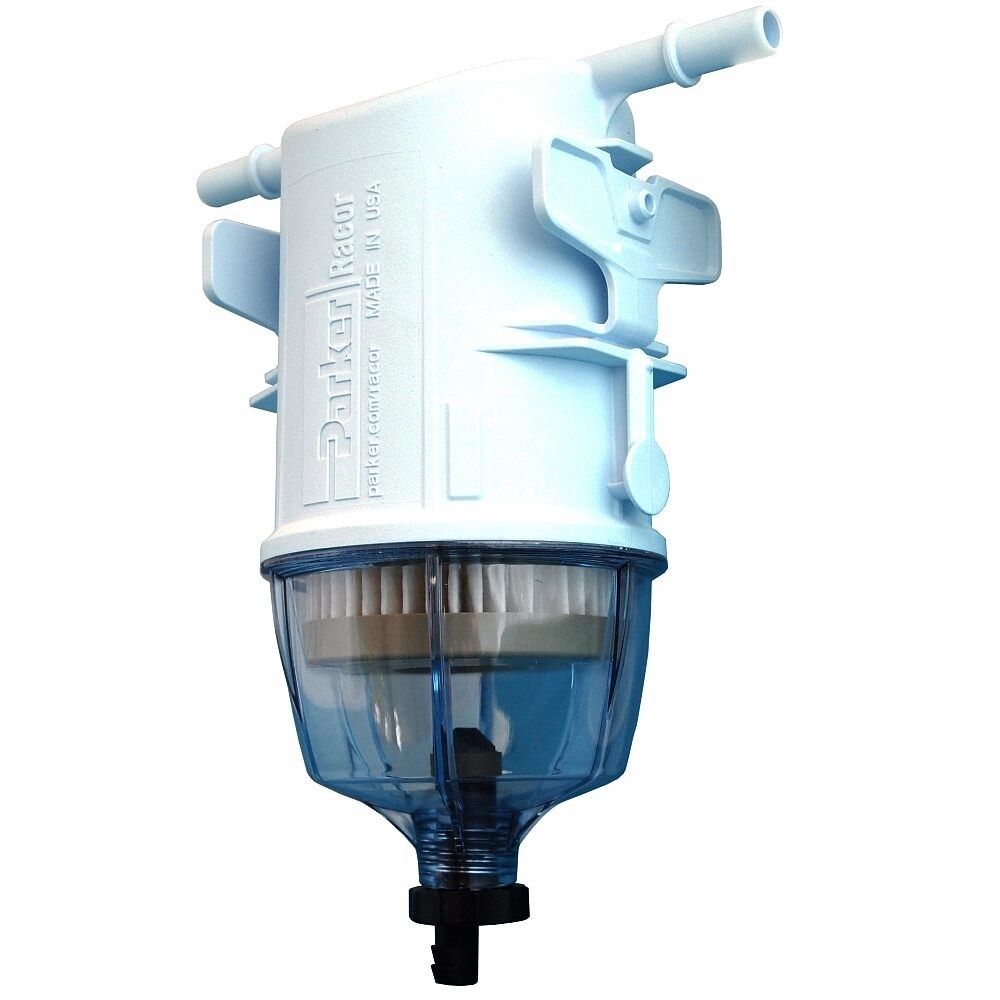

Racor SNAPP Replacement Filter, White Body Snaps into Existing Bracket, With Self Vent Drain, Priming Tube, 10 Micron Rated
SERIES TYPE
Replacement Element
BRAND
Racor
SERIES
SNAPP
FILTERED MEDIUM
Gasoline/Diesel
MOUNTING
Uses existing Bracket
RATED FLOW (GPH)
34 (gasoline)/26 (diesel)
HEIGHT
7.82 in/19.86 cm
RATED FLOW (LPH)
129 (gasoline)/98 (diesel)
WIDTH
3.83 in/9.73 cm
DEPTH
4.09 in/10.30 cm
WEIGHT
1.0 lb/.45 kg)
ELEMENT REMOVAL CLEARANCE
2.5 in/6.35 cm)
CONNECTION
3/8" Quick connect
KIT INCLUDES
Priming Tube
ACCESSORIES
Fittings 2-Pack:
RK23319: 3/8" Quick Connect Elbow Fitting
RK23320: 5/16" Quick Connect Straight Fitting
RK23321: 5/16" Quick Connect Elbow Fitting
MATERIAL
Glass filled Nylon body, Nylon bowl
Additional Information
For more information, visit P65Warnings.ca.gov
All products manufactured or distributed by Racor are subject to the following, and only the following, LIMITED EXPRESS WARRANTIES, and no others: For a period of one (1) year from and after the date of purchase of a new Racor product, Racor warrants and guarantees only to the original purchaser-user that such a product shall be free from defects of materials and workmanship in the manufacturing process. The warranty period for pumps and motors is specifically limited to ninety (90) days from date of purchase. A product claimed to be defective must be returned to the place of purchase. Racor, at its sole option, shall replace the defective product with a comparable new product or repair the defective product. This express warranty shall be inapplicable to any product not properly installed and properly used by the purchaser-user or to any product damaged or impaired by external forces. Return: All returns must be recevied within 30 days of receipt. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
