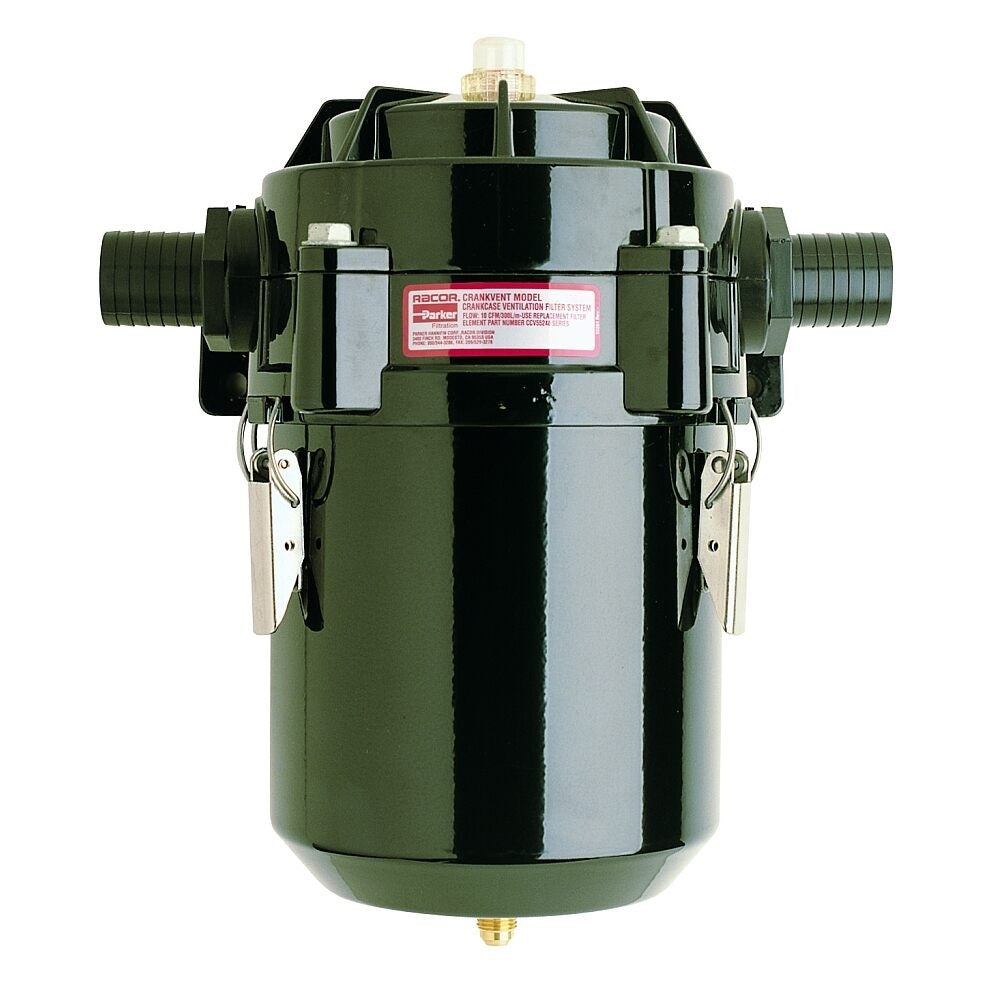

Racor Closed Crankcase Ventilation System 8001 Assemblies, 1600 HP Max

Mfr: Racor (Parker Hannifin Corp.)
$515.18 to $532.35
$515.18 to $532.35

Racor's 8001 Closed Crankcase Ventilation Systems, CCVs, protect your boat engine from blow-by gases created during combustion. If unchecked, these gases also cause damage to enclosed areas and the environment. Racor's CCV systems prevent this by re-routing these gases back to the inlet to be burned in the engine.

  • Series Type: Cartridge Crankcase Ventilation
  • Materials: Die cast head, glass filled nylon and black powder epoxy-coated aluminum bowl
  • Drain Kit: Hose, Check Valve, (2) Swivel Fitting


Racor's CCV (closed) systems utilize depth-loading, micro-glass fiber Vaporbloc media. As such, blow-by gasses are not allowed to vent to the atmosphere. Instead, the cleaned and filtered gases are routed back to the inlet of the turbocharger to be burned in the engine. The units are designed to handle crankcase flow rates up to 50 cfm (1.42 m3/m) or more when using multiple units. CCV units feature a unique crankcase pressure regulator with an integral bypass valve. This regulator protects against crankcase over-pressure and under-pressure, thus preventing damage to seals and oil loss.

Item #
MPN
Max Output
Max Flow Rate
Function
Filtration Ratings
Inlet Location
Port Size
Dimensions
Racor Closed Crankcase Ventilation System 8001, 1600 HP Max, Left Inlet
Item #:560947-Left
MPN:CCV8000-08L
Max Output: 1600 HP / 1200 kW
Max Flow Rate: 40 cfm / 1.13 m3/m
Function: Bypass assembly
Filtration Ratings: High
Inlet Location: Left
Port Size: 1-7/8", 12 SAE
Dimensions: 10.6" W x 9.3" D x 13.9" H
Racor Closed Crankcase Ventilation System 8001, 1600 HP Max, Right Inlet
Item #:560947-Right
MPN:CCV8000-08R
Max Output: 1600 HP / 1200 kW
Max Flow Rate: 40 cfm / 1.13 m3/m
Function: Bypass Assembly
Filtration Ratings: High
Inlet Location: Right
Port Size: 1-7/8", 12 SAE
Dimensions: 10.6" W x 9.3" D x 13.9" H
