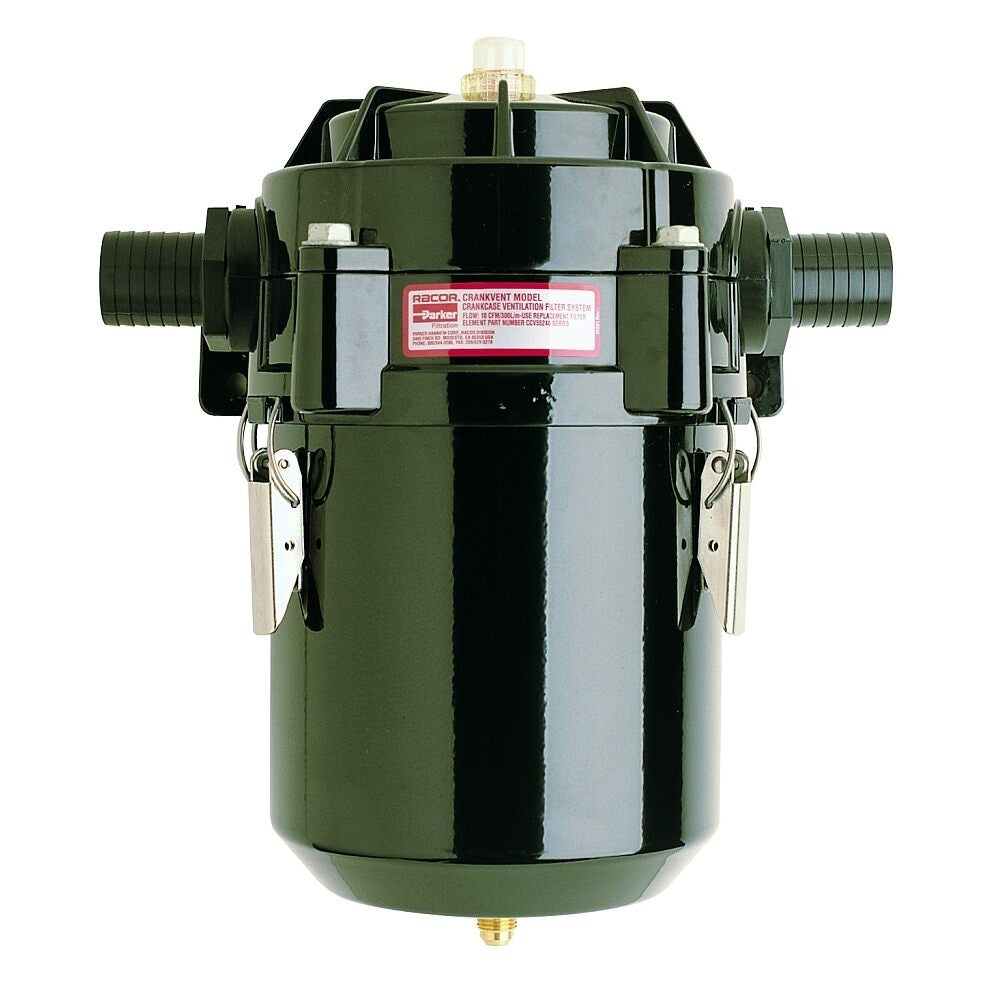

Racor CrankCase Ventilations Systems

Mfr: Racor (Parker Hannifin Corp.)
$343.27 to $355.14
$343.27 to $355.14

Racor CCV, Closed Crankcase Ventilation, Systems prevent blow by from fouling of critical marine engine components on your boat. Racor's CCV assemblies protect turbochargers, after-coolers and more by removing oil contamination from engine bypass gases.

  • Series Type: Cartridge Crankcase Ventilation
  • Materials: Die cast head, glass filled nylon and black powder epoxy-coated aluminum bowl
  • Drain Kit: Hose, Check Valve, (2) Swivel Fitting


Racor's CCV (closed) systems utilize depth-loading, micro-glass fiber Vaporbloc media. As such, blow-by gasses are not allowed to vent to the atmosphere. Instead, the cleaned and filtered gases are routed back to the inlet of the turbocharger to be burned in the engine. The units are designed to handle crankcase flow rates up to 50 cfm (1.42 m3/m) or more when using multiple units. CCV units feature a unique crankcase pressure regulator with an integral bypass valve. This regulator protects against crankcase over-pressure and under-pressure, thus preventing damage to seals and oil loss.

Item #
MPN
Max Output
Max Flow Rate
Function
Filtration Ratings
Inlet Location
Port Size
Dimensions
Racor Closed Crankcase Ventilation System, 800 HP / 600 kW Max, Right Inlet
Item #:549348-Right
MPN:CCV6000-08R
Max Output: 800 HP/600 kW
Max Flow Rate: 20 cfm/ 0.57 m3/m
Function: Bypass Assembly
Filtration Ratings: High
Inlet Location: Right
Port Size: 1-7/8", 12 SAE
Dimensions: 10.6" W x 9.3" D x 13.9" H
Racor Closed Crankcase Ventilation System, 800 HP / 600 kW Max, Left Inlet
Item #:549348-Left
MPN:CCV6000-08L
Max Output: 800 HP / 600 kW
Max Flow Rate: 20 cfm / 0.57 m3/m
Function: Bypass Assembly
Filtration Ratings: High
Inlet Location: Left
Port Size: 1-5/8", 12 SAE
Dimensions: 8.6" W x 7.3" D x 12" H
