Raritan PHII & PHEII Rebuild Kits

Mfr: Raritan Engineering
$59.56
Raritan, PHRKII, Rebuild Kit, Before 1992
SKU: 84335
|
Mfg# PHRKII
|
UNIT: Each
Model Year: Before June, 1992
In Stock - Ships out in 1 Business Day
Fits all Raritan PHII & PHEII Toilets

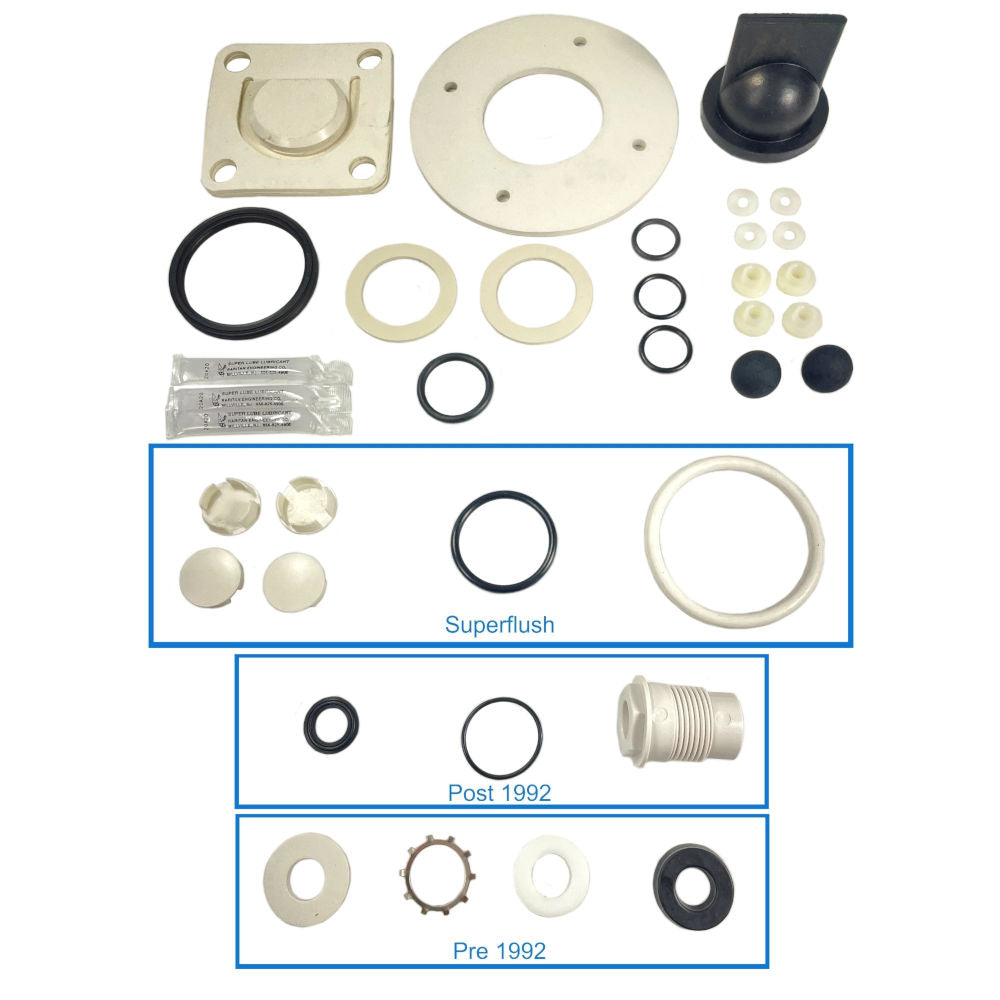

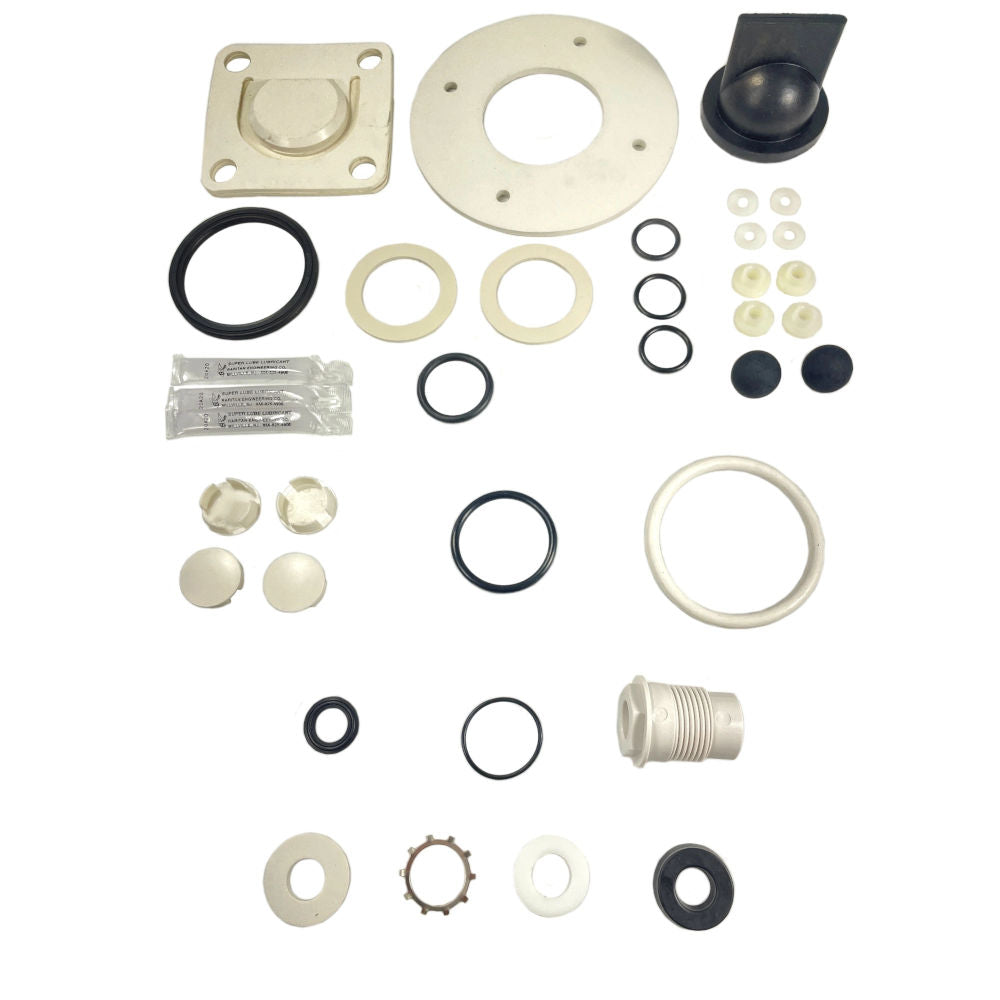

  • PHRKII shown in photo, PHRKIIC not shown
PHRKIIC - PHII & PHEII Rebuild Kit, >6/92 (1200C Pump Housing) includes:
  • 1201: Buna N Inlet/Outlet Ground 3/4" Valve Ball
  • 1202: Inlet and Outlet Valve Cap Gasket
  • 1203B1: Inlet Valve Stem O-ring
  • 1203B2: Inlet Valve Body O-ring
  • 1203B3: Inlet Valve Bottom O-ring
  • 1214A: Shaft Seal
  • 1214B: O-ring, #22
  • 1214: Seal Cartridge
  • 1226C: Plastic Spacer Washer
  • 1228CW: Flapper Valve Assembly
  • 1232MS: Piston Multi-seal O-ring
  • 1234: White Bowl Gasket
  • C253: Joker Valve
  • RNI: Nylon Shoulder Washer
  • SL1CC: Super Lube Lubricant Packet
  • PHRKII - PHII and PHEII Rebuild Kit, <6/92, includes:
    • 1201: Buna N Inlet/Outlet Ground 3/4" Valve Ball
    • 1202: Inlet and Outlet Valve Cap Gasket
    • 1203B1: Inlet Valve Stem O-ring
    • 1203B2: Inlet Valve Body O-ring
    • 1203B3: Inlet Valve Bottom O-ring
    • 1213A: U-cup
    • 1213B: Acetal Washer
    • 1213C: Stainless Steel Snap Ring
    • 1213D: White Neoprene Washer
    • 1226C: Plastic Spacer Washer
    • 1228CW: Flapper Valve Assembly
    • 1232MS: Piston Multi-seal O-ring
    • 1234: White Bowl Gasket
    • C253: Joker Valve
    • RNI: Nylon Shoulder Washer
    • SL1CC: Super Lube Lubricant Packet
