DESCRIPTION

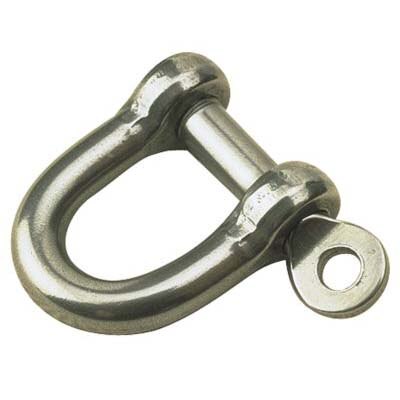

Sea-Dog, Captive Pin D Shackle, Stainless Steel. These D-Shackles have straight sides with a U-shape rounded bottom. The U-shaped end can handle heavy loads even on the straight sides (may cause bending). Designed for rigging applications with bi-directional loads.

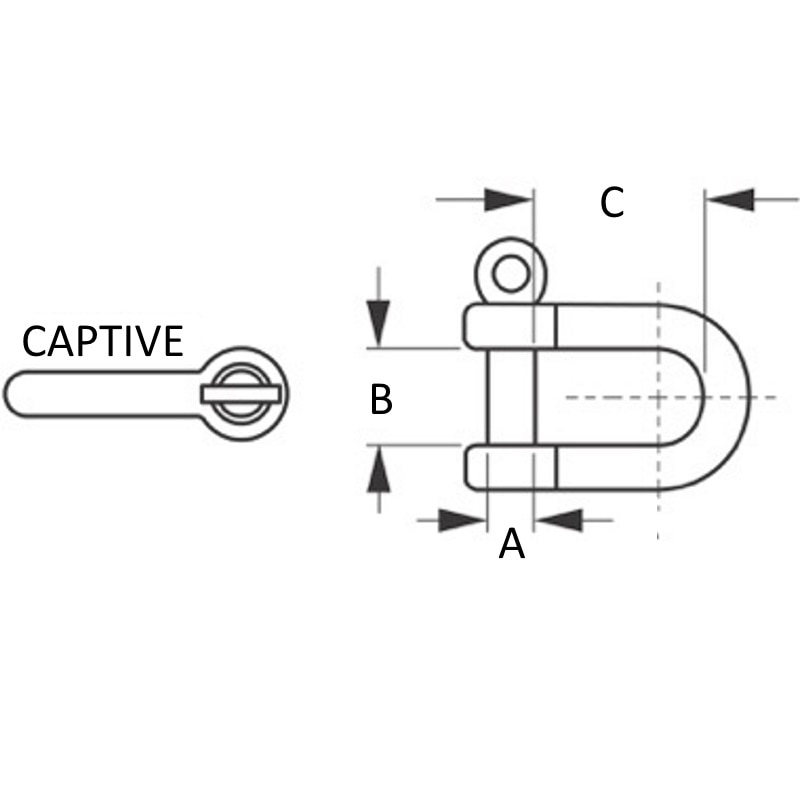

- A = Size of Pin Diameter
- Forged 316 stainless steel
- When opening, the pin completely clears the opening of the shackle and is recessed into a secured flush position
- Pin remains captive and will not fall out
- With other shackles, the pin is not flush until you partially unscrew it
SPECS
Item #
MPN
A
B
C
Breaking Strength (lbs)
Stainless Steel (316) Captive D Shackle 1/4 in.
Item #:532390-1/4"-3300lbs.-Card
MPN:147126-1
A: 1/4"
B: 1/2"
C: 7/8"
Breaking Strength (lbs): 3300
Sea-Dog, Captive Pin D Shackle, Stainless Steel
Item #:532390-3/16"-2200lbs.-Card
MPN:147124-1
A: 3/16"
B: 7/16"
C: 11/16"
Breaking Strength (lbs): 2,200 Lbs
Sea-Dog, Captive Pin D Shackle, Stainless Steel
Item #:532390-5/32"-1540lbs-Bulk
MPN:147123
A: 5/32"
B: 3/8"
C: 11/16"
Breaking Strength (lbs): 1,540 Lbs
Sea-Dog, Captive Pin D Shackle, Stainless Steel
Item #:532390-1/4"-2200lbs.-Bulk
MPN:147124
A: 3/16"
B: 7/16"
C: 11/16"
Breaking Strength (lbs): 2,200 Lbs
Stainless Steel (316) Captive D Shackle 5/16 in.
Item #:532390-5/16"-6600lbs.-Card
MPN:147128-1
A: 5/16"
B: 11/16"
C: 1-1/4"
Breaking Strength (lbs): 6600
Sea-Dog, Captive Pin D Shackle, Stainless Steel, Bulk
Item #:532390-1/4"-3300lbs.-Bulk
MPN:147126
A: 1/4"
B: 1/2"
C: 7/8"
Breaking Strength (lbs): 3,300
