Trident, 365 Series Fuel Hose, Type A1-15 Barrier Lined Marine

Mfr: Trident Marine
$2.66 to $185.91
3 Reviews
Back
$2.66 to $185.91

DESCRIPTION

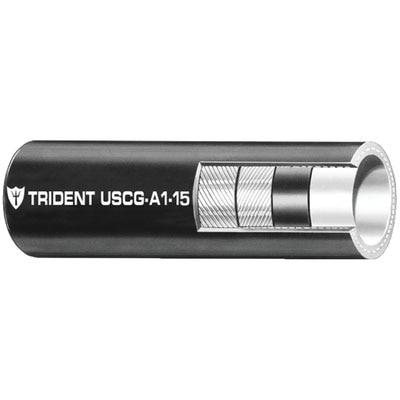

Trident Marine's 365 Series Hose is a Type A1-15 Barrier Lined Marine Fuel Hose with two spiral reinforcement construction and it meets EPR, CARB, ABYC and USCG requirements. The 365 Series of hoses are resistant to fuels, fire, heat, cold, ozone, aging and permeation.

  • Barrier lined low permeation A1-15 marine fuel hose
  • 2 spiral reinforcement with barrier liner on inside surface of tube
  • 5 year warranty
  • CARB and EPA compliant
  • CE, SAE J1527, USCG type A1, ISO 7840 A1, ABYC H-24 & H-33 certified

Note: For Per Foot option orders, please enter the total number of feet desired (up to 50 foot maximum) in the QTY box and we will cut it to length for you. If you need say two 40' sections put 80 in the Qty box and tell us you need two 40' sections in the order comment box during check out.

SPECS

Item #
MPN
Inside Diameter
Outside Diameter
Bend Radius
Length
Enter Total Qty Needed in Qty Box
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 5/8" x 50'
Item #:533356-5/8"-50ft
MPN:365-0586
Inside Diameter: 5/8"
Outside Diameter: 1"
Bend Radius: 3"
Length: 50'
Enter Total Qty Needed in Qty Box:
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 5/8", per Foot
Item #:533356-5/8"-1ft
MPN:365-0580-01
Inside Diameter: 5/8"
Outside Diameter: 1"
Bend Radius: 3"
Length: Per Foot
Enter Total Qty Needed in Qty Box: We ship one continuous length based on the total quantity unless notated in notes at checkout. (Length restrictions may apply).
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 5/16", per Foot
Item #:533356-5/16"-1ft
MPN:365-0560-01
Inside Diameter: 5/16"
Outside Diameter: 39/64"
Bend Radius: 1-3/4"
Length: Per Foot
Enter Total Qty Needed in Qty Box: We ship one continuous length based on the total quantity unless notated in notes at checkout. (Length restrictions may apply).
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 3/8", per Foot
Item #:533356-3/8"-1ft
MPN:365-0380-01
Inside Diameter: 3/8"
Outside Diameter: 11/16"
Bend Radius: 2"
Length: Per Foot
Enter Total Qty Needed in Qty Box: We ship one continuous length based on the total quantity unless notated in notes at checkout. (Length restrictions may apply).
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 1/4" x 50'
Item #:533356-1/4"-50ft
MPN:365-0146
Inside Diameter: 1/4"
Outside Diameter: 17/32"
Bend Radius: 1-1/2"
Length: 50'
Enter Total Qty Needed in Qty Box:
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 1/4", per Foot
Item #:533356-1/4"-1ft
MPN:365-0140-01
Inside Diameter: 1/4"
Outside Diameter: 17/32"
Bend Radius: 1-1/2"
Length: Per Foot
Enter Total Qty Needed in Qty Box: We ship one continuous length based on the total quantity unless notated in notes at checkout. (Length restrictions may apply).
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 1/2" x 50'
Item #:533356-1/2"-50ft
MPN:365-0126
Inside Diameter: 1/2"
Outside Diameter: 13/16"
Bend Radius: 2-1/2"
Length: 50'
Enter Total Qty Needed in Qty Box:
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose
Item #:533356-3/4"-1'
MPN:365-0346-01
Inside Diameter: 3/4"
Outside Diameter: 1.13"
Bend Radius: 4.5"
Length: Per Foot
Enter Total Qty Needed in Qty Box:
Trident, 365 Series, Type A1-15 Barrier Lined Marine Fuel Hose, 1/2", per Foot
Item #:533356-1/2"-1ft
MPN:365-0120-01
Inside Diameter: 1/2"
Outside Diameter: 13/16"
Bend Radius: 2-1/2"
Length: Per Foot
Enter Total Qty Needed in Qty Box: We ship one continuous length based on the total quantity unless notated in notes at checkout. (Length restrictions may apply).
