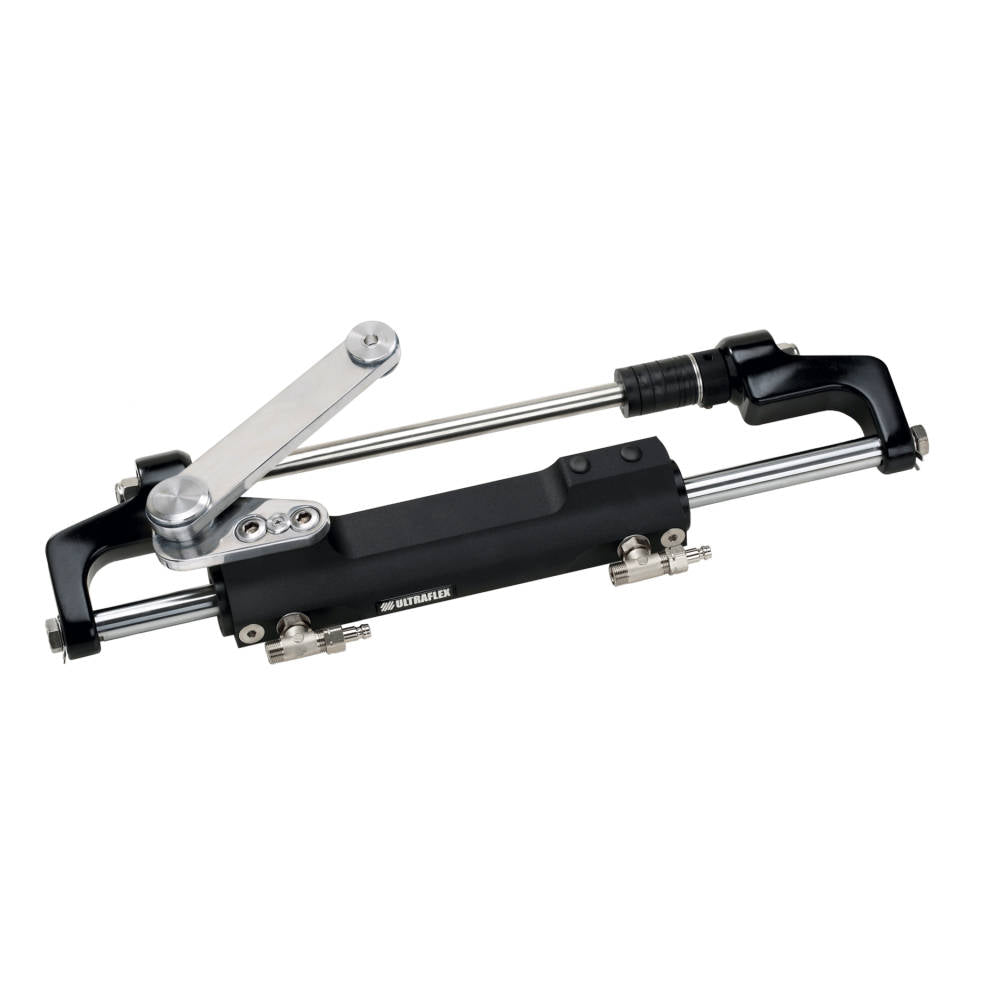

Uflex Outboard Hydraulic Steering Cylinder, UC128-OBF2


Uflex Outboard Hydraulic Steering Cylinder, UC128-OBF2
SKU: 159485
Mfg# UC128OBF-2
UNIT: Each
In-stock, 1-2 days to leave warehouse

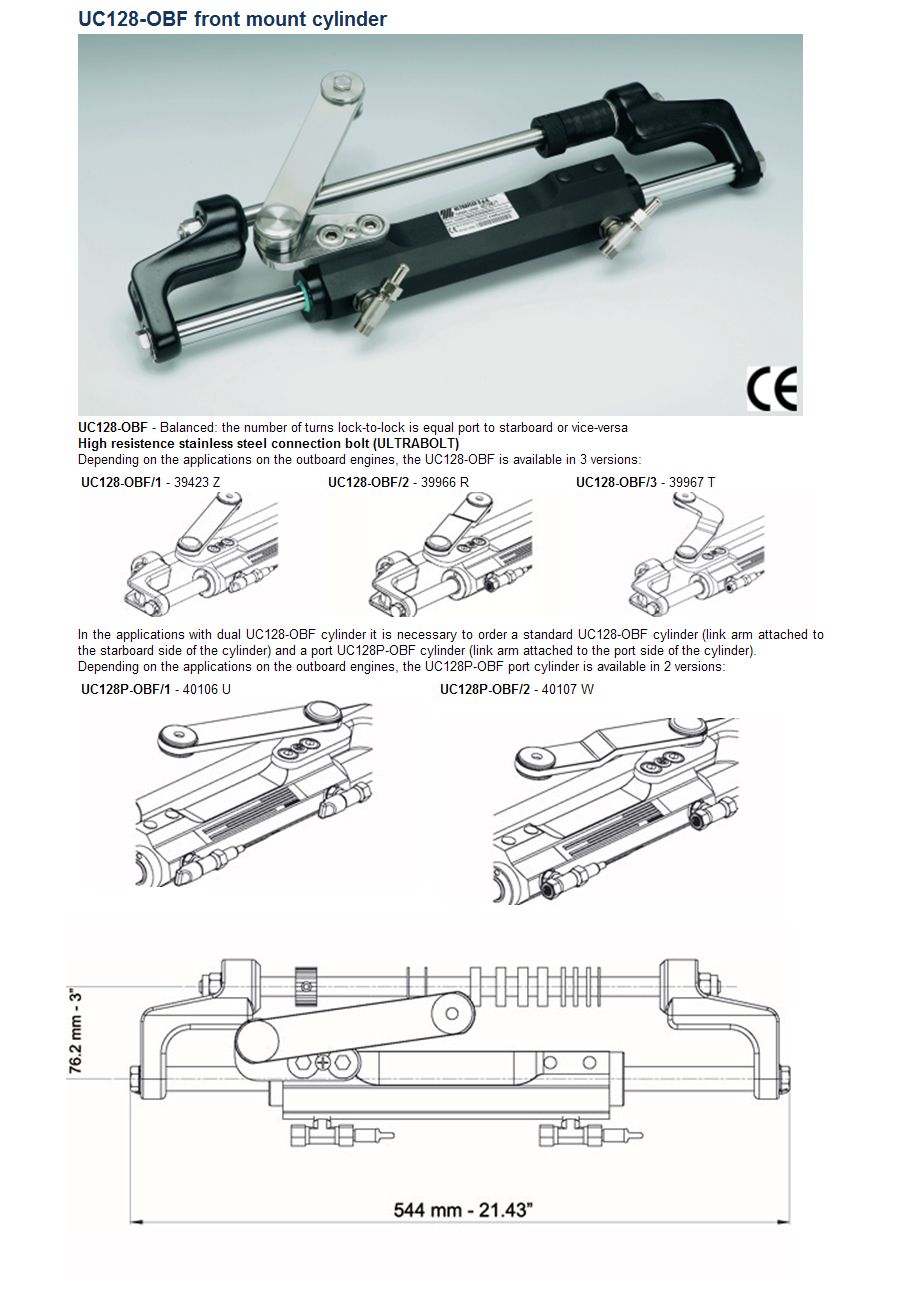

Uflex Outboard Hydraulic Steering Cylinder, UC128. Cross reference to Hynautics HC5345 and HC5347.

  • Balanced cylinder
  • Cylinder Bore: 1.38"
  • Cylinder Stroke: 7.8"
Fits engine models:
  • Evinrude: E75-E90 2 Stroke, E115-E130-E135 2 Stroke V4, E150-E175-E200 2 Stroke V6, E200 HO- E225-E250 2 Stroke V6, E250 HO- E300 2 Stroke V6
  • Yamaha: 75C-90 2 Stroke, 115C-130B 2 Stroke, 150F-200F-250G 2 Stroke, 150 HPDI VMAX 2 Stroke, 175-200-225-250-300 HPDI VMAX 2 Stroke, F2000-F225-F250 4 Stroke
  • Suzuki: DF70-80-90 4 Stroke, DF200-DF225-DF250-DF300, F2000-F225-F250 4 Stroke
  • Tohatsu: 115-120-140 2 Stroke
  • Selva: 100EFT Marlin -115 EFI Narwhal Johnson: J90-115 V4 2 Stroke, J150-175 V6 2 Stroke, J200-225 V6 4 Stroke
  • The number of turns lock-to-lock is equal port to starboard or vice-versa
