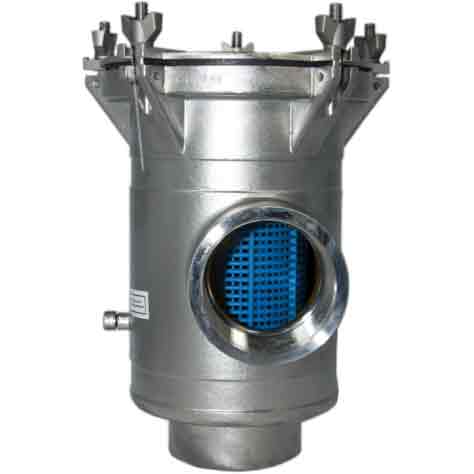

DESCRIPTION
* Male bottom inlet
* Female side outlet
* 1 - 2" ports
BISO (bottom in side out)
- Electro-polished AISI 2205 cast stainless steel body
- Solid electro-polished Stainless Steel lid.
- ABS Plastic Basket
- Secured by five (5) wing nuts for safe, quick and easy access. No tools required
- Swing down eye bolts eliminate need to remove nuts
- BSP or NPT thread available
- Full height, high impact resistant ABS basket
- Cast anode connection point to combat galvanic corrosion
Lid Options: Solid electro polished stainless steel (standard), clear interchangeable polycarbonate lid (option)
Basket Options: ABS basket standard on 1-1.5 inch options, Stainless Steel basket standard on 2-6 inch options
Other Options: Stainless Steel mounting brackets and extension arms
Specifications
Part Number | 70WS-BISO-200-S |
Dimension A - Thread Size (inlet/outlet) NPT | 2 in |
Dimension B - Lid Width | 8.3 in |
Dimension C - Height | 10.8 in |
Dimension D - Body Width | 5.5 in |
Approximate Weight with Solid Lid | 14.8 lb |
Flow Rate 1.45 PSI (GPM) | 128 gpm |
Flow Rate 14.5 PSI (GPM) | 427 gpm |
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.
