Description
Baldwin hydraulic filter bases are used to add a filter to an unfiltered system, or to transform a canister system to a spin-on filter style. Baldwin designed a two-piece base featuring die cast aluminum construction with an integral threaded steel stud, which is stronger than aluminum studs used by the leading competitor. Baldwin hydraulic bases are available with or without 25 and 50 psi integral by-pass valves and feature the unique capability to accommodate indicators on either side to facilitate mounting versatility.

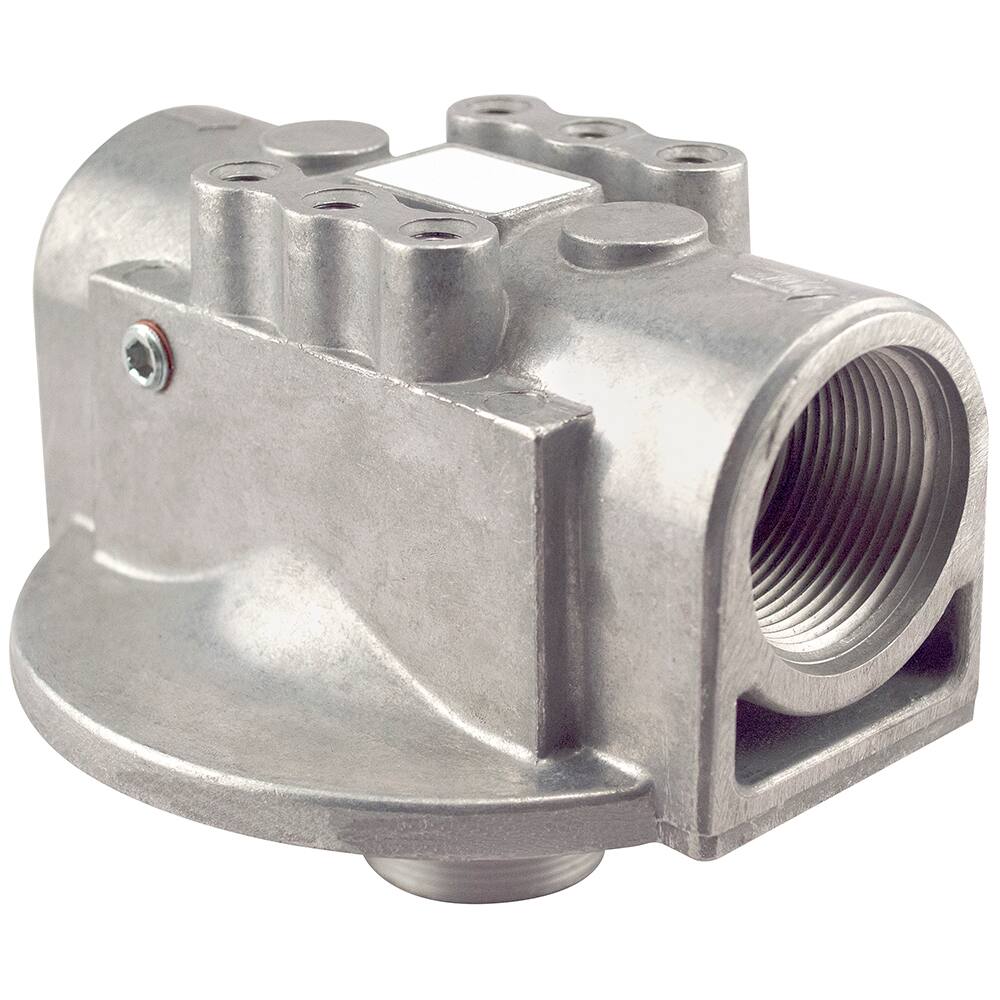

OB1314
Hydraulic Filter Base
5 1/2 (139.7)
5 5/16 (134.9)
25 PSID By-Pass Valve; Threaded Stud: 1 1/2-16; Threaded Stud: 1 1/4-11 BSP
This base requires the use of the G286-C gasket (furnished with BT387, BT387-10, BT388, BT388-10 and BT8424-MPG, optional on others) for installation of the filters listed below; For use on the return side.
OB1314
Hydraulic Filter Base
5 1/2 (139.7)
5 5/16 (134.9)
25 PSID By-Pass Valve; Threaded Stud: 1 1/2-16; Threaded Stud: 1 1/4-11 BSP
This base requires the use of the G286-C gasket (furnished with BT387, BT387-10, BT388, BT388-10 and BT8424-MPG, optional on others) for installation of the filters listed below; For use on the return side.
