Description

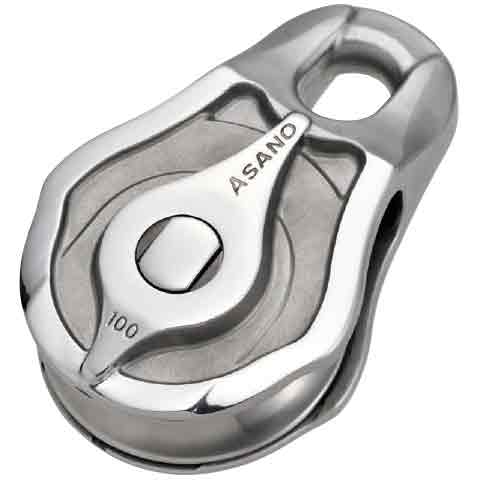

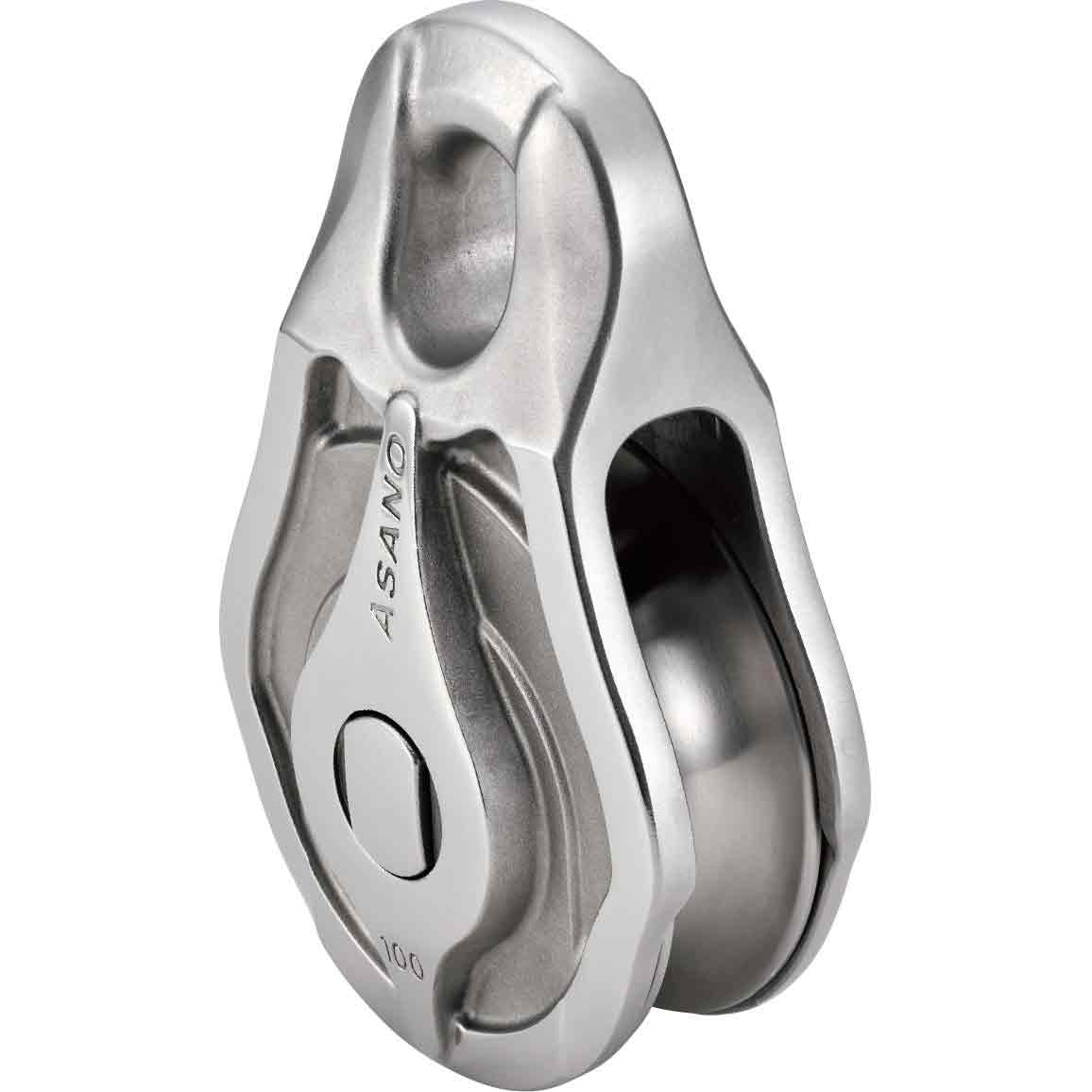

The main body has a compact integrated structure that provides superior strength. In addition, the material used for the product is special stainless steel that is widely used for industrial components such as seawater pumps due to its improved abrasion and corrosion resistance. Both ends of the sheave are fitted into the main body prevents ropes from getting caught.
Material: Special stainless steel
The working load conforms to the working load of the bearings. This product contains two stainless steel bearings with a rubber seal.
Features
- Two types of sheaves available
Two types of sheaves (stainless sheave / machined nylon sheave) are available in the product lineup, allowing you to select an appropriate sheave suitable for your purposes. Nylon MC801used for the nylon sheave has excellent weather and abrasion resistance.
- Smooth surface of the body
The product is designed so that the pins and nuts are flush with the main body surface. In addition, sharp edges and corners of the main body are rounded to ensure the design is easy on ropes and nets.
- Example of combination use
The product can be used in combination with ASANO's 16 mm Purse Shackle. In addition, the product can also be combined with 16 mm Quick Link or 16 mm Swivel (Jaw & Jaw) .

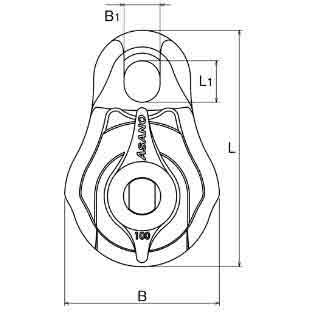

| Size (Sheave dia.)(mm) | Max dia of rope(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | D1(mm) | B(mm) | B1(mm) | t(mm) | t1(mm) | Unit Weight(kg) | Work Load Limit(t) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 25 | 25 | 171 | 30 | 60 | 76 | 112 | 26 | 31 | 63.5 | 2.1 | 1 |
