Description

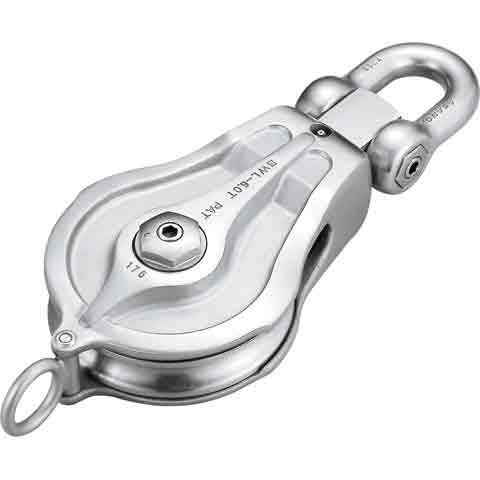

Material: Special stainless steel, Sheave pin/neck bolt: SUS304

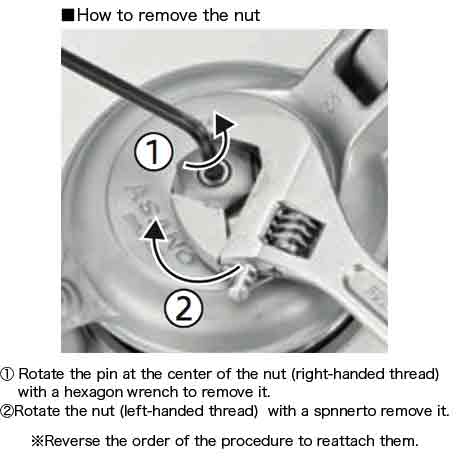

The working load limit does not apply to the becket part. The working load conforms to the working load of the bearings. This product contains one steel bearings with rubber seals. The nut at the center of the body is a left-handed thread.

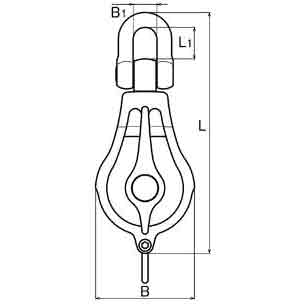

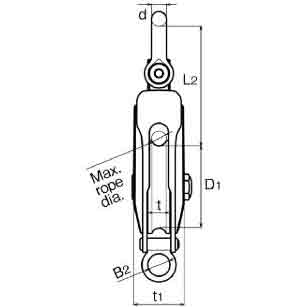

| Size (Sheave dia.)(mm) | Sheave Qty | Max dia of rope(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | D1(mm) | B(mm) | B1(mm) | B2(mm) | t(mm) | t1(mm) | Hex. Wrench dia.(mm) | Unit Weight(kg) | Work Load Limit(t) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 1 | 20 | 20 | 325 | 42 | 161 | 111 | 133 | 32 | 30 | 30 | 68 | 6･8･10 | 6.2 | 3 |
