Description

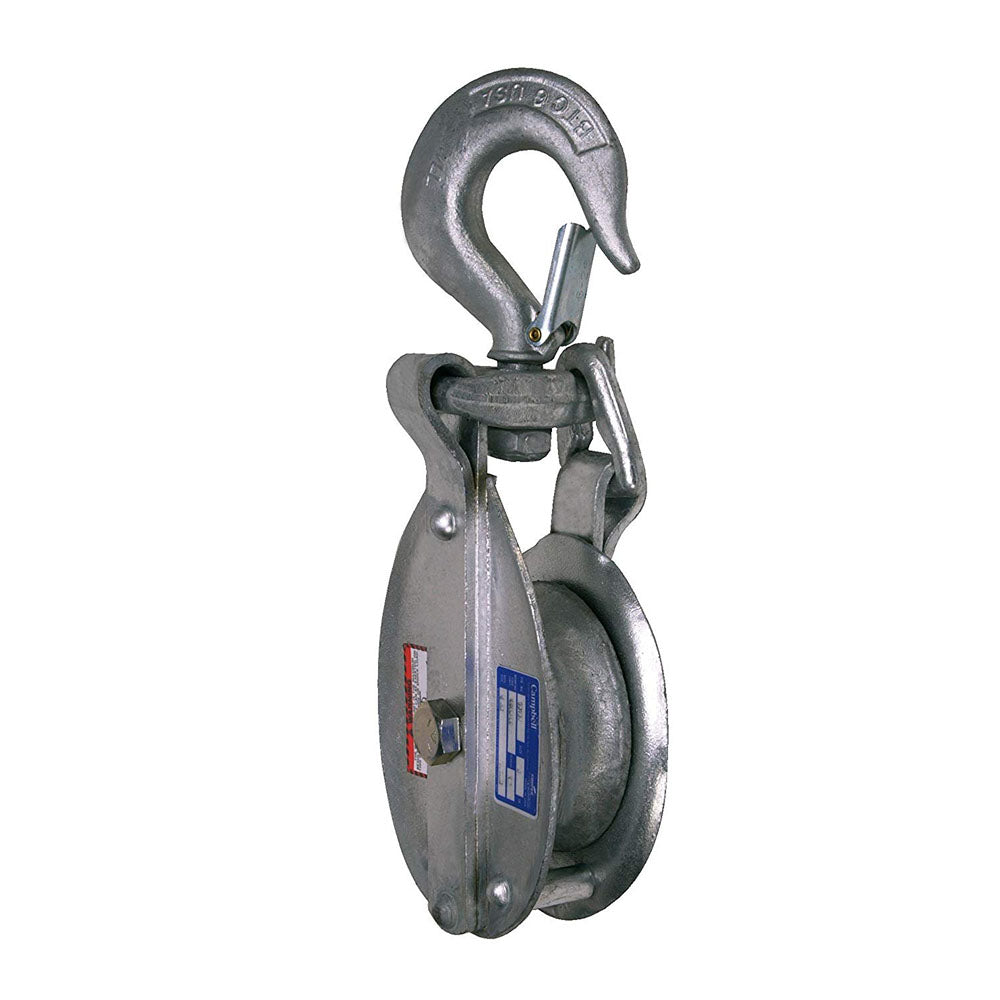

Campbell Steel Snatch Block
Features:
Steel Shell
Cross-Bolted Shell
Swivel Hook with Latch "V" Fitting
Fittings Drop-Forged; Metal Parts Galvanized
Bronze Self-Lubricating Bushings
Drop Link Snatch Blocks Are Primarily Used As Lead Blocks
Not Recommended for Hoisting
Made in USA
Working Loads are Resultant Working Loads
Specifications:
6" - p/n 7265696
Block Size: 6 in
Block Type: Steel, 3073
Rope Diameter: 7/8 in
Sheave Size - OD: 3 in
Sheave Size - Rim Thickness: 1-1/8 in
Bearing Diameter: 3/4 in
Sheave Size - Center Pin Diameter: 1/2 in
Working Load Limit: 2400 lb
Weight Each (lbs.): 7.40 lb
8" - p/n 7265896
Block Size: 8 in
Block Type: Steel, 3073
Rope Diameter: 1 in
Sheave Size - OD: 4-1/2 in
Sheave Size - Rim Thickness: 1-3/8 in
Bearing Diameter: 7/8 in
Sheave Size - Center Pin Diameter: 5/8 in
Working Load Limit: 4800 lb
Weight Each (lbs.): 13.00 lb
Features:
Steel Shell
Cross-Bolted Shell
Swivel Hook with Latch "V" Fitting
Fittings Drop-Forged; Metal Parts Galvanized
Bronze Self-Lubricating Bushings
Drop Link Snatch Blocks Are Primarily Used As Lead Blocks
Not Recommended for Hoisting
Made in USA
Working Loads are Resultant Working Loads
Specifications:
6" - p/n 7265696
Block Size: 6 in
Block Type: Steel, 3073
Rope Diameter: 7/8 in
Sheave Size - OD: 3 in
Sheave Size - Rim Thickness: 1-1/8 in
Bearing Diameter: 3/4 in
Sheave Size - Center Pin Diameter: 1/2 in
Working Load Limit: 2400 lb
Weight Each (lbs.): 7.40 lb
8" - p/n 7265896
Block Size: 8 in
Block Type: Steel, 3073
Rope Diameter: 1 in
Sheave Size - OD: 4-1/2 in
Sheave Size - Rim Thickness: 1-3/8 in
Bearing Diameter: 7/8 in
Sheave Size - Center Pin Diameter: 5/8 in
Working Load Limit: 4800 lb
Weight Each (lbs.): 13.00 lb
