Description

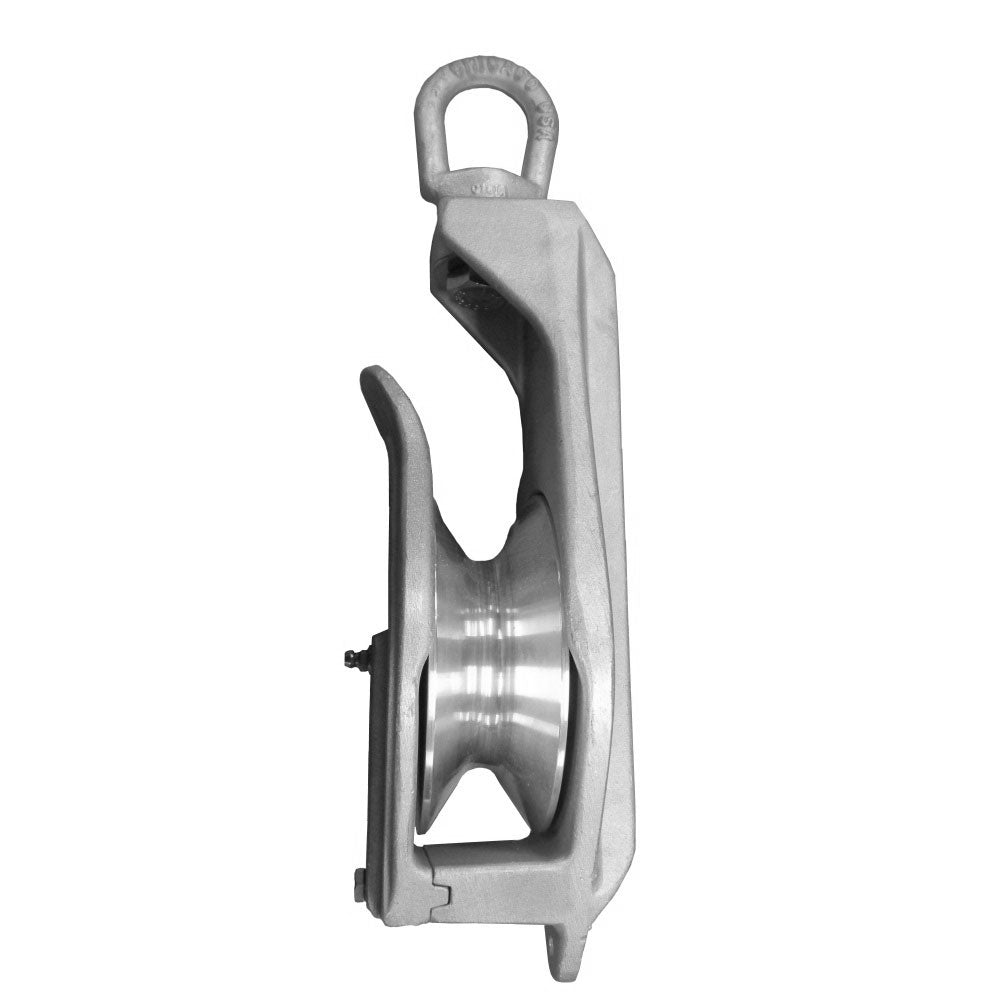

Fraser Bronze Open Face Block, 2 sizes
Cast from marine grade aluminum alloy, forged galvanized eye, all stainless steel fasteners and custom machined shaft with zerk fitting for lubrication. Sheaves bushed with oil-lite bushing for long life.
3" -
p/n: OFB030
Total Length: 11"
Sheave Outside Diameter: 3"
Sheave Inside Diameter: 1-8/10"
Sheave Width: 1-4/10"
Sheave Opening: 1-1/3"
SWL: 1000 lbs
Total Weight: 3.5 lbs
5" -
p/n: OFB050
Total Length: 15"
Sheave Outside Diameter: 5"
Sheave Inside Diameter: 3-1/4"
Sheave Width: 1-3/5"
Sheave Opening: 2"
SWL: 2000 lbs
Total Weight: 7.5 lbs
Cast from marine grade aluminum alloy, forged galvanized eye, all stainless steel fasteners and custom machined shaft with zerk fitting for lubrication. Sheaves bushed with oil-lite bushing for long life.
3" -
p/n: OFB030
Total Length: 11"
Sheave Outside Diameter: 3"
Sheave Inside Diameter: 1-8/10"
Sheave Width: 1-4/10"
Sheave Opening: 1-1/3"
SWL: 1000 lbs
Total Weight: 3.5 lbs
5" -
p/n: OFB050
Total Length: 15"
Sheave Outside Diameter: 5"
Sheave Inside Diameter: 3-1/4"
Sheave Width: 1-3/5"
Sheave Opening: 2"
SWL: 2000 lbs
Total Weight: 7.5 lbs
