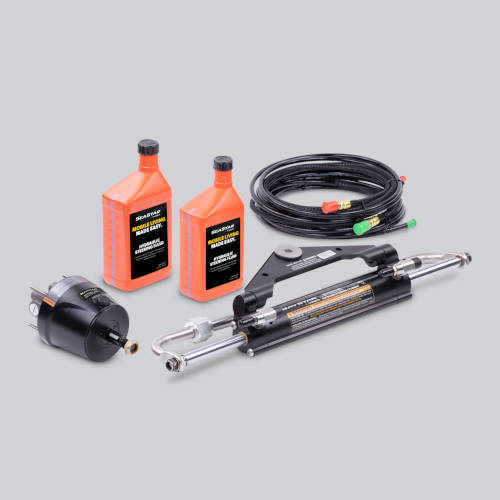

Baystar Kit, HK4300A-3 Hydraulic Steering Kit without Tube
Baystar Steering Kit:
With mechanical steering you sacrifice a degree of comfort. Traditional hydraulic systems may be more than is needed on lower horsepower outboard engines. Built in the tradition of SeaStar, BayStar brings the same efficiency and durability you would expect from SeaStar Solutions Hydraulic steering to smaller outboards up to 150 HP. Compact form and affordable price make it an ideal upgrade for mechanically steered boats up to 150 total HP.
Applications:
BayStar is for single-outboard powered boats rated up to 150 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 150 HP (total). For single station, single engine use only. BayStar is not intended for high speed, high performance type boats, such as Bass Boats.
- Helm, Cylinder, Oil and Filler Kit
- Intended for use with SeaStar hoses part number HO51XX (replace XX with feet needed in 2’ increments)
- Use with SeaStar hose (purchased separately)
- Requires 3 inch (76mm) cut-out Hole in dash
- Requires 21 inch (534mm) splash well width
