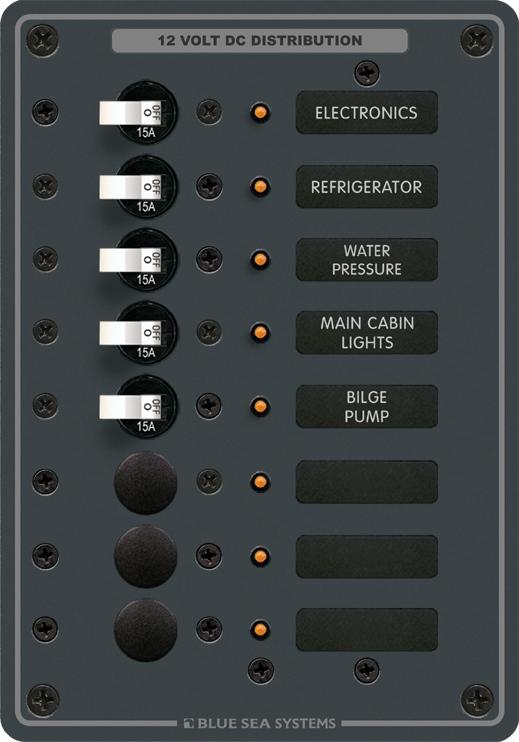

DC Distribution Panel, 12/24 Volt, 8 Positions, No Meter


DC Distribution Panel, 12/24 Volt, 8 Positions, No Meter
SKU: 21405
Mfg# 8023
LFS# BSS8023
UNIT: Each
Panel: DC PowerFeatures: Breakers, Backlit, LED IndicatorsBreakers / Switches: 8 Position Single Pole
In Stock - Ships out in 1 Business Day


Blue Sea Systems, AC Distribution Panel, 120 Volt Main + 6 Positions, No Meter. The AC Main power system provides a path for delivering power from the ship's source of AC power to the AC branch distribution system.

  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions
  • Maximum panel amperage - 50 Amperes
  • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
  • Two-part polyurethane slate gray finish
  • Heavy 1/8" aluminum 5052 alloy
  • Industry standard height and width
  • Countersunk mounting holes throughout
  • Detailed installation instructions and cutout template included
  • Over 500 individual labels available

Positions: AC Main + 6
Installed Single Pole Circuit Breakers: 3) 15 Amp
Voltage: 120 Volt
Width: 5.25" (133.35mm)
Height: 7.50" (190.50mm)
Weight Lb (Kg): 1.87 (0.85)
Installed Double Pole Circuit Breakers: 1) 30 Amp
Technical Info
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.
