DESCRIPTION

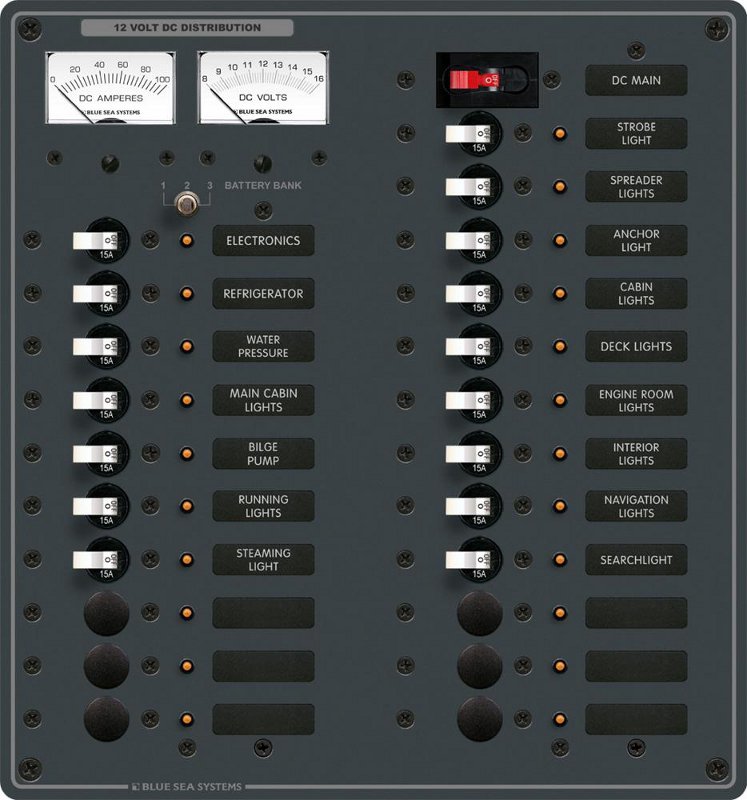

Blue Sea Systems, DC Distribution Panel, 12/24 Volt Main + 22 Positions, Analog Meters.
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner up-gradable to 24 Volt with 8240 or 8243 (18-32 Volt DC meters)
- All circuit label positions are back-lit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish, heavy 1/8" aluminum 5052 alloy
- Industry standard 11.25" (285.75 mm) height and 10.5" (266.70 mm) width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Panel Labels
- Voltage: 12 or 24 Volt DC
- Installed C-Series Main Circuit Breaker: 1 (100 Amp)
- Positions: Main + 22
- Installed Single Pole Circuit Breakers: 16 (15 Amp)
- Meter Type / PN: Analog / 8028, 8250
