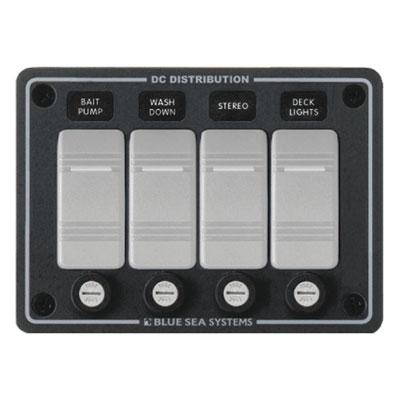

DC Distribution Panel, Contura Water Resistant 12/24 Volt Switch/Fuse Panel, 4 Position

Mfr: Blue Sea Systems
$109.05
DC Distribution Panel, Contura Water Resistant 12/24 Volt Switch/Fuse Panel, 4 Position
SKU: 91395
|
Mfg# 8262
|
LFS# BSS8262
|
UNIT: Each
Panel: DC PowerFeatures: Waterproof, LED Indicators, SwitchesBreakers / Switches: 4 Position
Typically Ships Out in 5 Weeks
Blue Sea Systems, Contura Water Resistant 12/24 Volt DC Panel, 4 Position. Designed for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats.

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • 4) SPST Gray ON-OFF Contura Switches
  • 4) Panel Mount AGC/MDL Fuse Holders
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Heavy 1/8" aluminum material
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install
  • Includes set of 60 common DC labels

Specifications:
Note: Labels are not backlit.

Fuse Holder Rating: 20 Amperes maximum (15 Ampere fuses included)
Maximum Voltage Rating: 24 Volts DC
Weight Lb (Kg): 0.75 (0.34)
Voltage: 12 or 24 Volts DC
Panel Cumulative Rating: 45 Amperes
Switch Rating: 20 Amperes@12 Volts DC, 15 Amperes@24 Volts DC
Dimensions:
Width: 5.25" (133.35mm)
Height: 3.75" (95.25mm)
