Dr. LED Inline LED Dimmer Switch

Mfr: Dr. LED
$10.60 On Sale
Inline LED Dimmer Switch
SKU: 565494
Mfg# 9000012
LFS# DLE9000012
UNIT: Each
In Stock - Ships out in 1 Business Day

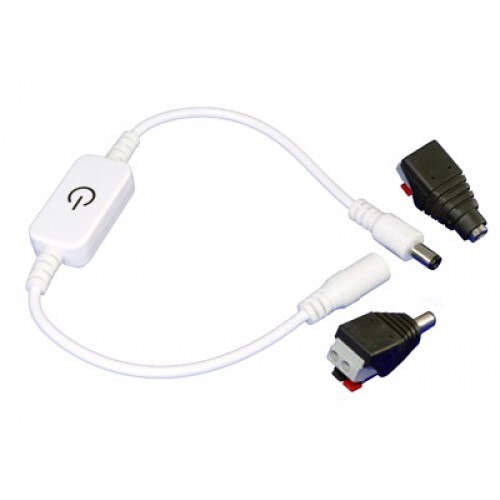

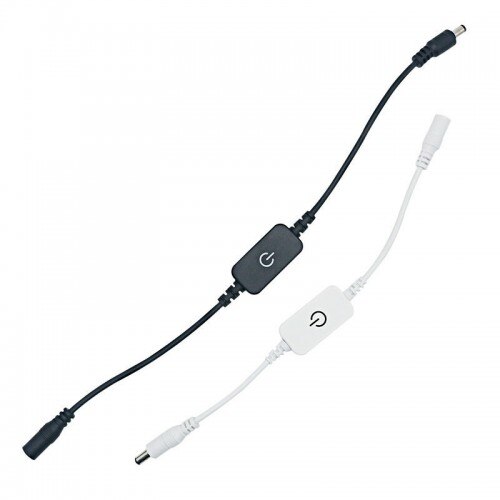

12VDC 2A Low-Profile Inline LED Dimmer Switch

Capacitive Touch On/Off Dimmer Switch

Two Quick-Connect Terminals Included

Connection Type: DC Plug 5.5mm x 2.1mm (Input: M and Output: F)

Inline LED Dimmer Switch PN:9000012

This easy-to-use LED Dimmer Switch allows you to turn on and off and adjust the brightness of a LED light (or other non-inductive devices, no fan or pump) with a light touch of the switch.

Tap the switch briefly (on the switch symbol) to turn the LED on or off. While the light is on, touch and maintain contact with the switch to brighten or dim the light. Each long touch will alternately brighten or dim the light. Release contact at the desired intensity level. Tap the switch briefly again to turn the light off.

Part Number9000012
Model NameInline LED Dimmer Switch
Input Voltage12VDC
Max Input Power24W
Max Input Current2A
Polarized ConnectionYes
Operating Temperature-4°F to 140°F (-20°C to +60°C)
Switch Body Dimensions (inch)1.7 x 0.86 x 0.44
Weight0.71 oz
Water Ingress Rating


AccessoriesTwo Quick-Connect Terminals Included
