DESCRIPTION

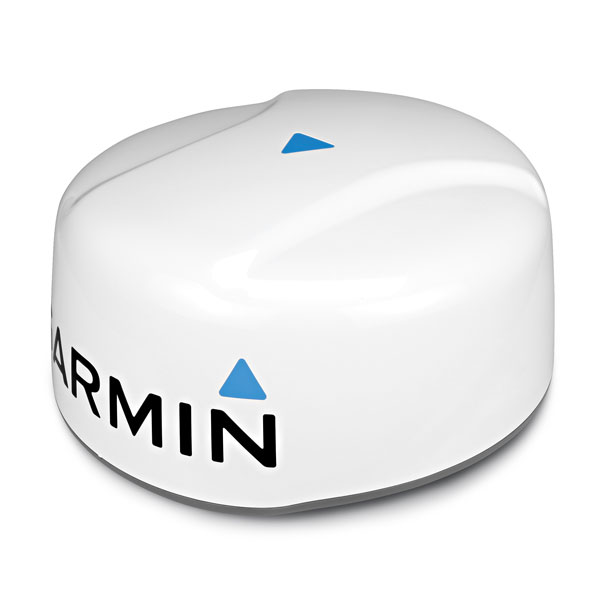

The Garmin 18" Dome Radar, GRM 18 HD+ Radome, is the choice for boaters working with with limited room for a radar dome. The GRM 18 HD+ Radome packs 4 kW of transmit power and clear echo definition into this compact unit. It enhances situational awareness at all ranges and will overlay radar images onto your boat's chartplotter map page. (For best overlay results, an optional autopilot or heading sensor is recommended.) The GRM 18 HD+ Radome helps you avoid traffic on the water and provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately). The GRM 18 HD+ Radome has no complex user settings, and it’s easy to install and start using.
- Streamlined 18-inch 4 kW dome radar
- Delivers 4 kW transmit power and clear echo definition at all ranges
- Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
- Dynamic Sea Filter automatically adjusts gain to changing sea conditions
- Overlays radar image on the chartplotter map page (autopilot or heading sensor recommended for best results)
What comes in the box:
- GMR 18 HD+ radome
- Mounting hardware kit
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Installation instructions
- Mounting template
Radome Specs:
- PHYSICAL DIMENSIONS - 20" diameter, 9.8" high (50.8 cm diameter, 24.8 cm high)
- WEIGHT - 17 lbs (7.7 kg)
- WATER RATING - IPX7
- POWER CONSUMPTION - 30 W typical; 48 W max
- ANTENNA LENGTH - 17" (43.18 cm)
- ROTATION SPEED (RPM) - 24 rpm
- POWER INPUT - 11-35 V DC
- BEAM WIDTH - 5.2° horizontal, 25° vertical
- MAXIMUM RANGE - 36 nm
- MINIMUM RANGE - 20 meters
- RADAR TYPE - Radome
The Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true color resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM.
