Jabsco, Oil Change Pump, 17830 Series

Mfr: Jabsco
$322.00 On Sale

Jabsco, Porta Quick, Oil Change Pump, 12 volt, 17830-0012
SKU: 203940
Mfg# 17830-0012
LFS# JAB178300012
UNIT: Each
Volts: 12 VdcAmp Draw: 10 ampFuse Size: 15 amp
In Stock - Ships out in 1 Business Day


Jabsco, Oil Change Pump, 17830 Series

Jabsco, Oil Change Pump, 17830 Series. Designed to be installed near a vessel's engine and permanently plumbed to the engine's oil pan.

  • Pump can be used to remove old oil from the engine, then with the integral reversing switch, the flow direction can be changed to pump a measured amount of new oil back into the engine
  • Connection to the engine should be controlled by the 3/8" ball valve(provided) to guard against accidental oil discharge
  • Body: Bronze
  • Impeller: Nitrile
  • Seal: Nitrile Lip Type
  • Valves: 3/8" NPT Full Flow Ball Type
  • Port Type: 3/8" NPT
  • Voltage: 12 or 24 Vdc
  • Motor: Reversible Permanent Magnet with Integral Reversing Switch
  • Dimensions: 4-7/16" x 3-3/4" x 7-7/8" (11.3 x 20.0 x 9.5 cms)
  • Weight: 9 lb (4.1kg)

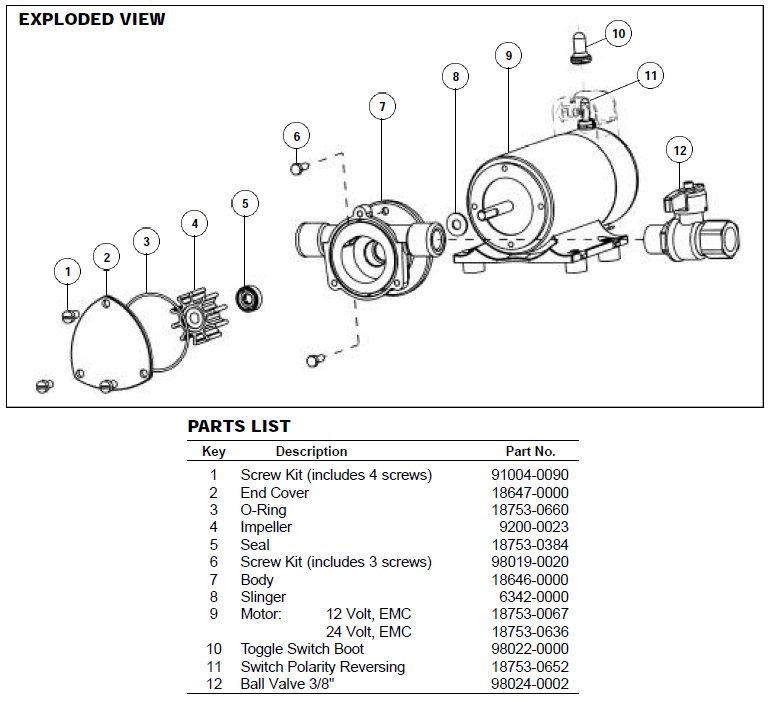

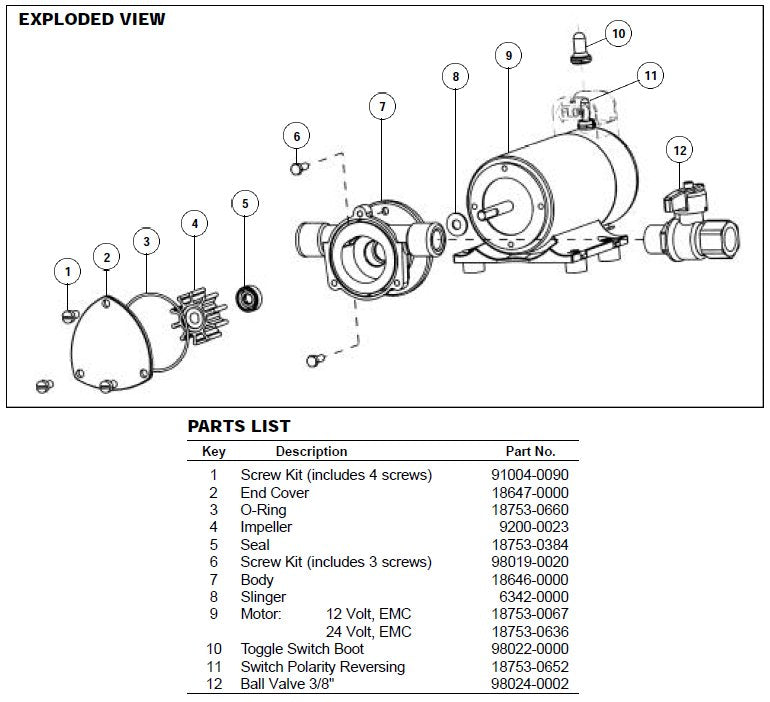

  • See "Images" tab for exploded parts view

Manufacturer: Jabsco

Category: Oil Change Tools, Pumps and Accessories
