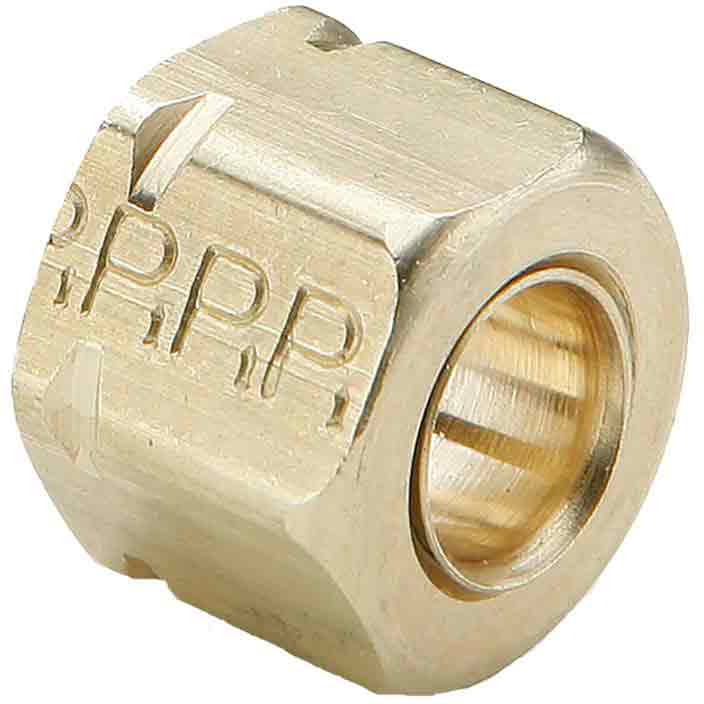

Parker 61CA-6 3/8" Ferrule and Nut Brass Compression Fittings
DESCRIPTION
Technical Specifications
- Style: Tube
- Connection 2 Style: na
- Connection 3 Thread Size (inch): na
- Body Material: Brass
- Connection 2 Thread Size (inch): na
- Connection 1 Style: Compression
- Connection 3 Tube O.D. (inch): na
- Connection 1 Tube O.D. (inch): 3/8
- Connection 3 Style: na
- Connection 2 Tube O.D. (inch): na
- Shape: Nut/Sleeve
- Minimum Operating Temperature: -65 °F, -54 °C
- Maximum Operating Temperature: 250 °F, 121 °C
- Maximum Operating Pressure: 2800 psi, 193 bar
- Tube Material: Copper, Aluminum, TFE, FEA, PFA, Thermoplastic
- Nut Material: Brass
- Sleeve Material: Brass
- Media: Water, air, inert and non-combustible gasses
- Connection Type: NPTF
- Application: Compressors, Machine Tools, Dispensing, Pumps, Purification
Item Information
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• PTFE
• FEP
• PFA
Markets:
• Industrial
• Pneumatic
• Packaging
• Automation
• Chemical
• Compressors
• Water filtration
Features/Benefits:
• All brass construction
• Captive sleeve
• Higher working pressures versus standard compression fitting
• Bodies interchangeable with standard compression bodies
• Economical
• One wrench turn from finger tight for assembly for all sizes
• 1/8" through 1" sizes available
• U.L. listed for flammable liquids
Applications:
• Air lines
• Lubrication lines
• Fluid transfer
• Chemical dispensing
• Cooling lines
• Machine tool
Custom configurations and sizes are available upon request. Contact us for additional information.
