Jabsco, Electric Head Conversion Kit, 37010 Series

Jabsco, Electric Head Conversion Kit, 37010 Series
See Products
On Sale $396.05
Jabsco, Electric Head Conversion Kit, 37010 Series.

  • Push button flushing for ease and simplicity of operation
  • Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps, hose and fastenings
  • Flushing pump self-priming up to 4ft (1.2m) vertical lift
  • May be installed 3ft (1m) below the waterline
  • For installations fitted with vented loops use a solenoid valve on inlet hose
  • Connections for 5/8" - 3/4" (16-19mm) ID inlet hose, 1" or 1-1/2" (25 or 38mm) ID outlet hose
  • Converts most toilets with 4 bolt screw pattern on a 3-3/4" (95mm) diameter bolt circle such as Groco, Raritan, Wilcox Crittenden, Mansfield and Sealand
  • Dimensions: 13-1/4" long x 8-1/4" wide x 3-1/4" high (34cm x 21cm x 8cm)
  • Also fits any PAR or Brydon 59128-series, or Jabsco 29090-29120 series
Need Parts for this Product? Use the "Exploded View" Tool
Exploded View Part No. Mfr No. Volts Current Fuse Unit Leaves Warehouse* List Price
Your Price
Qty.

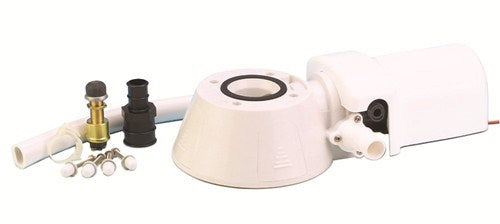

  Jabsco, Electric Toilet Base Conversion Kit - 12 volt
Exploded View 73621 37010-0092 12 volt 16 amp 25 amp Each In-Stock: 1 Day $445.42
$396.05
On Sale

* Leaves Warehouse: Does not include Weekends and Holidays.
When will my order arrive? Add the Estimated Leaves Warehouse Time + Estimated Shipping Time.
Shipping Info

How much does shipping cost?

If you'd like to see your shipping cost, add the item to your "Shopping Barge" and then use our Shipping Rates Calculator on the next page.

Returns / Exchanges

For Go2marine's shipping and return policy, click here.
Additional Description

If the toilet is to be installed below the waterline or may be below the waterline at any angle of heel or trim, properly installed vent loops must be used to prevent flooding.

Accessories, Related Items, Spare Parts, ...

Jabsco  29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Jabsco 29120, 29090, & Twist 'n' Lock Manual Toilet Service Kits and Spare Parts

Mfr. Jabsco Marine

Used with above Part#: All
$4.02 - $97.68

View Details

Review and FAQ Center


Question
Jabsco 37010-0092 Electric Toilet Conversion Kit missing a part?

I recently installed a 37010 kit but did not include the four hole gasket shown in the online catalog ..is this gasket missing or not needed???

Answer

The gasket you asked about is from a previous version of the Electric Toilet Conversion Kit (Jabsco 37010-0092) which has been superseded by a new kit using the same number. The gasket in question has been replaced by an O-Ring (Jabsco 44101-1000) which fits in the recessed area of the base. Thank you for bringing this to our attention. The picture for the Jabsco 37010-0092 has been updated.
