Description

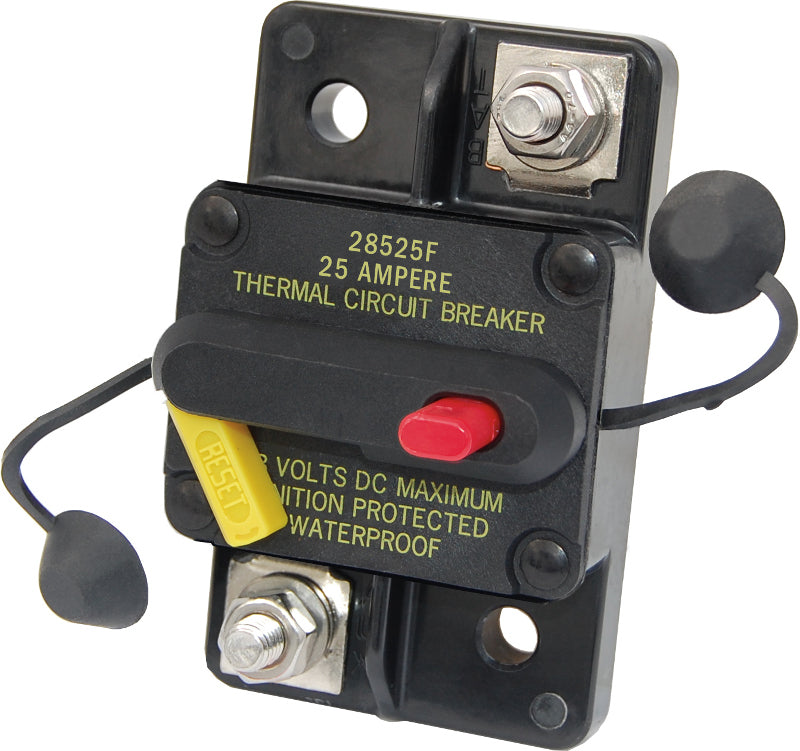

- Replaces 185-Series Circuit Breakers
- Provides medium duty circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required
- Visible reset lever shows open condition
- Trip-free-cannot be held closed after trip
- Drop in replacement for 185-Series Circuit Breakers
- Interrupting Capacity 3,000A @ 48V DC
- Voltage Maximum Operating: 48V DC
- Temperature Minimum Operating: -40 Deg. C
- Temperature Maximum Operating; 85 Deg. C
- Type: Thermally Responsive Bi-Metal Blade
- Class: Type IIIÑSwitchable/Manual ResetÑTrip Free
- Terminal Stud: M6 (accepts 1/4" Ring Terminal)
- Terminal Stud Torque: 50 in-lb
- Mounting: 1/4" Screw
