Description

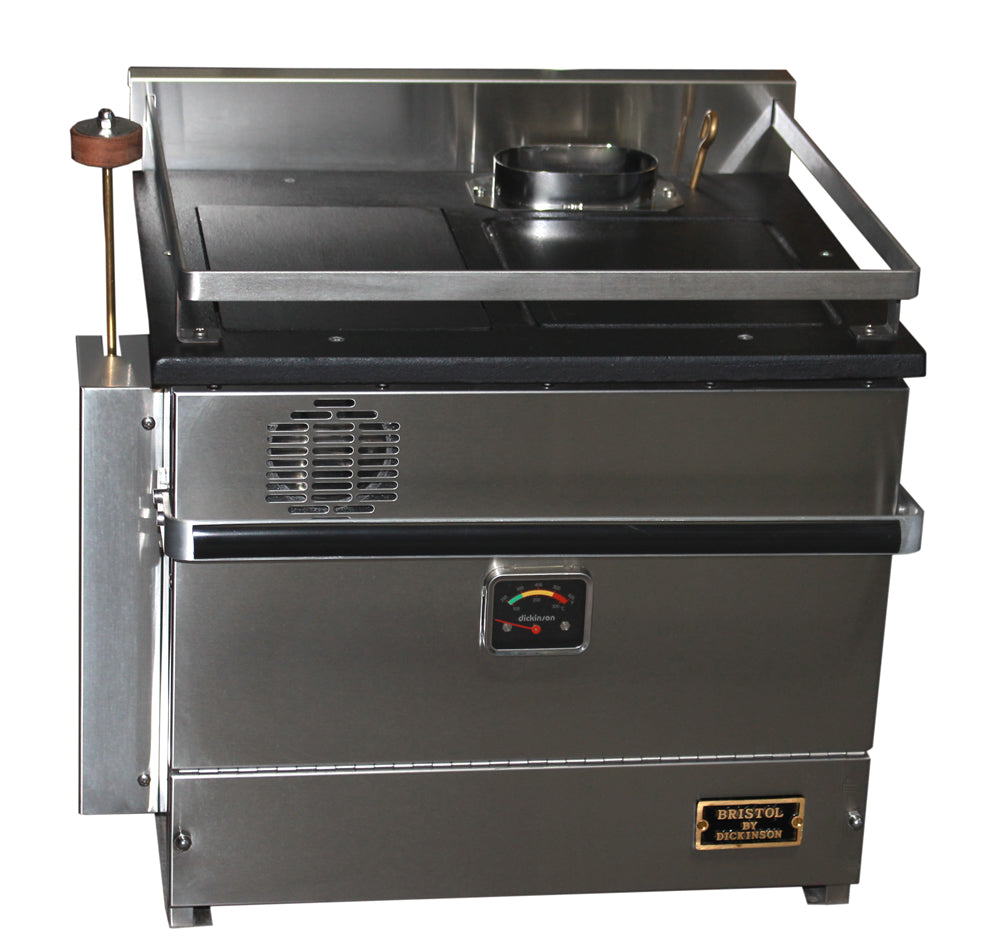

The Bristol Cook Stove is Dickinson's smallest model ideal for boats 30-35ft. This stove is designed to fit the standard small boat cut-out and designed primarily to be mounted to face port or starboard.
- Requires
- Minimum 6ft or maximum 8ft of chimney is required, a straight run with no elbows work best.
- Chimneys 6ft or longer Dickinson highly recommends a .
- Permanent fresh air vent needed in area of the unit.
- Creates a dry heat to dry out moisture inside in the vessel.
- In sailboat installations, this unit must face port or starboard, so the gravity fed valve wonÕt starve the burner on heels up to 15 degrees. Having the unit face fore or aft is currently not an option.
- 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire.
- Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
- 1 turn hot water coil for 5-10 gal can be installed for water heating.
Width: 21_
Height: 19.25_
Depth: 18.25_
Weight: 85 lbs
Oven Size: W9" X D11.25" X H8"
1.30 gal LOW
3.20 gal HIGH
Heat Output:
Low: 6500 BTU
High: 16250 BTU*ships on a pallet
