Description

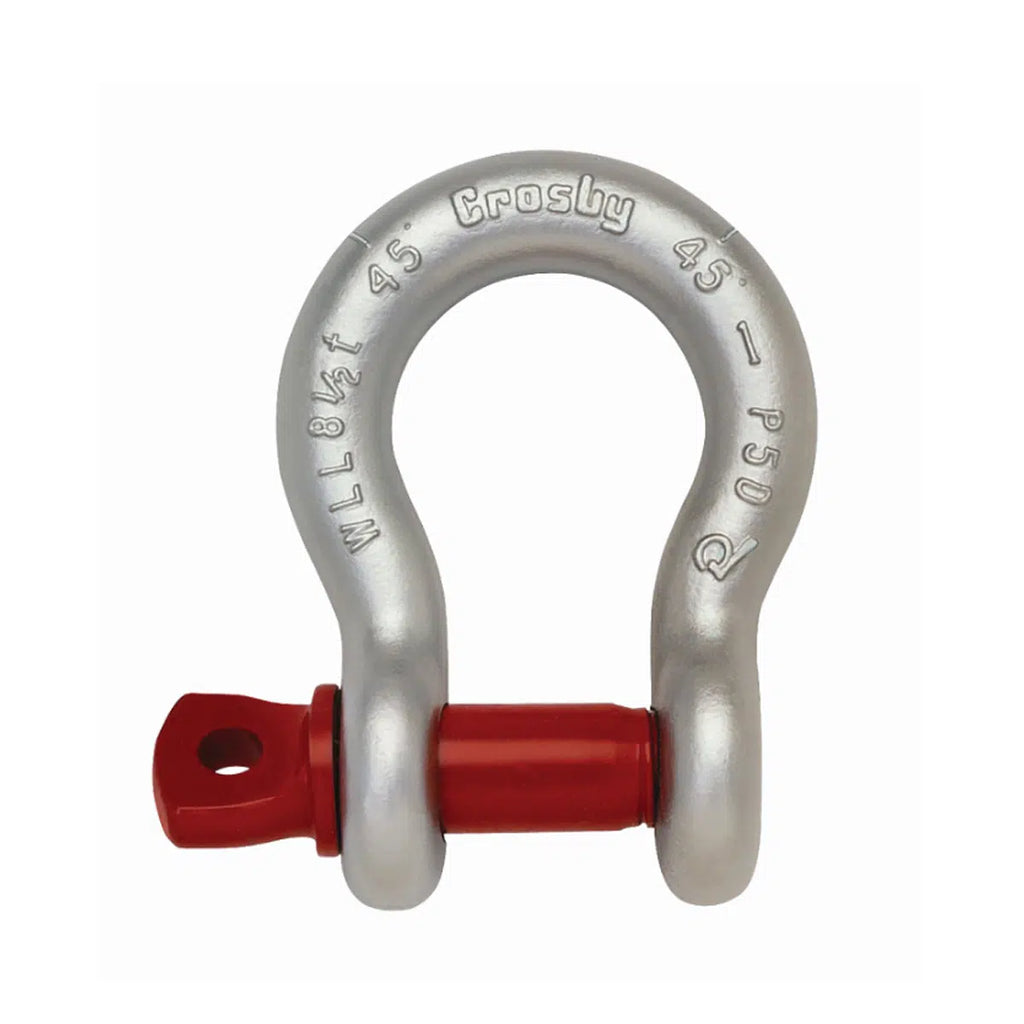

Crosby G-209 Screw Pin Anchor Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
- Pin Type: Screw Pin
- Material: Carbon Steel Body & Alloy Steel Pin
- Finish: Hot Dip Galvanized
- Forged Carbon Steel – Quenched and Tempered, with alloy pins
- Working Load Limit permanently shown on every shackle
- Approved for use at -40° C (-40° F) to 204° C (400° F)
- Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor
- Made in the USA
