Description

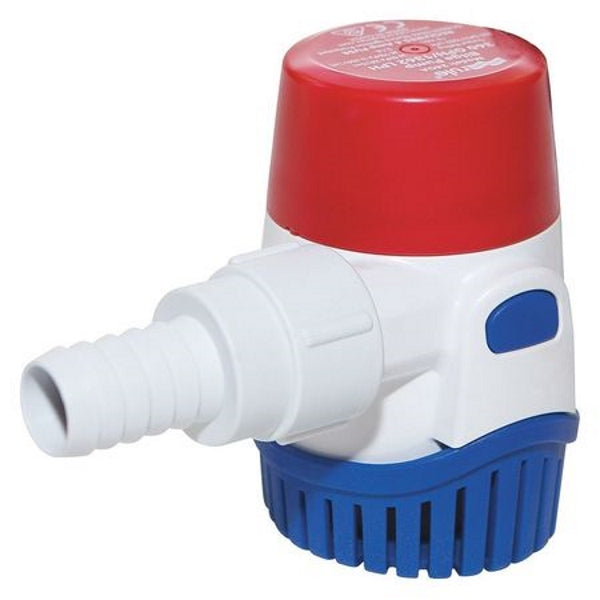

Rule's Cartridge Series of Bilge Pumps offers traditional operation activated by a float or panel switch. Removal of the motor cartridge also allows for easy cleaning of the strainer and impeller area in the event that the pump becomes clogged with debris.
- Operation: Standard
- Material: ABS, Nylon, Stainless Steel
- GPH of Water @ 10 Ft. of Head: 60
- Discharge NPT (In.): 3/4 NPS
- GPH of Water @ 5 Ft. of Head: 240
- Dia. (In.): 2-1/2
- Height (In.): 3-29/32
- Amps: 2.1
- Width (In.): 2-1/2
- Max. Head (Ft.): 12
- GPM of Water @ 10 Ft. of Head: 3.00
- Inlet: Bottom Strainer Suction
- Cord Length (Ft.): 2
- Max. Temp.: 120 Degrees F
- GPH of Water @ 0 Ft. of Head: 800
- Hose Outlet (In.): 3/4
- Length (In.): 2-1/2
- Height (In.): 4-13/32
- Application: For Use In Fresh Water and Salt Water Bilge Applications
- Characteristics: Black Flow Prevention, Changeable Port, Check Valve, Small
- Width (In.): 2-1/2
- Shaft Material: 316 Stainless steel
- Max. Head (Ft.): 12
- GPM of Water @ 10 Ft. of Head: 1.00
- Engineered to commercial standards
- Heavy duty construction for trouble free operation
- Impeller screen protects from entanglements and obstructions
- A good all around bilge or sump pump
Note: Some pumps feature cubic housings with square base (not pictured)All Rule pumps work on the principle of centrifugal force. They must be submerged in the water or be below the water source. Bilge pumps must be mounted in lowest possible point in the bilge. Livewell pumps must be below the waterline. They only push water; they do NOT pull water.
