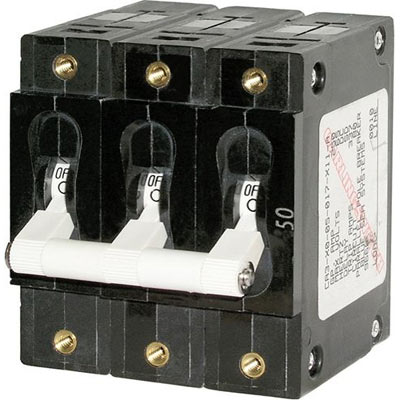

AC C-Series Triple Pole Circuit Breakers, 50 to 100 Amp, White

Mfr: Blue Sea Systems
$96.61 to $110.81
$96.61 to $110.81
Blue Sea Systems C-Series Triple Pole AC Circuit Breaker, White Toggle.

  • 5,000 amp interrupt capacity to meet ABYC requirements for 120/240 volt 50 amp main protection
  • Triple pole used as 240 volt AC main circuit breaker to switch all lines (hot) and neutral
  • Will trip all poles if any one pole trips
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Operating Temperature Range: -40 Deg. C to +85 Deg. C
  • Mounting Screw: #6-32, Recommended torque: 6-8 in-lb
  • Terminal Screw: 1/4-20 SS, Maximum torque: 35 in-lb
  • Circuit Breaker Type: Magnetic
Item #
MPN
Current Rating
AC C-Series Triple Pole Circuit Breaker, 80 Amp, White
Item # : 531198-80AMPS
MPN : 7289
Current Rating : 80 Amps
AC C-Series Triple Pole Circuit Breaker, 60 Amp, White
Item # : 531198-60AMPS
MPN : 7288
Current Rating : 60 Amps
AC C-Series Triple Pole Circuit Breaker, 50 Amp, White
Item # : 531198-50AMPS
MPN : 7287
Current Rating : 50 Amps
AC C-Series Triple Pole Circuit Breaker,100 Amp, White
Item # : 531198-100AMPS
MPN : 7290
Current Rating : 100 Amps
