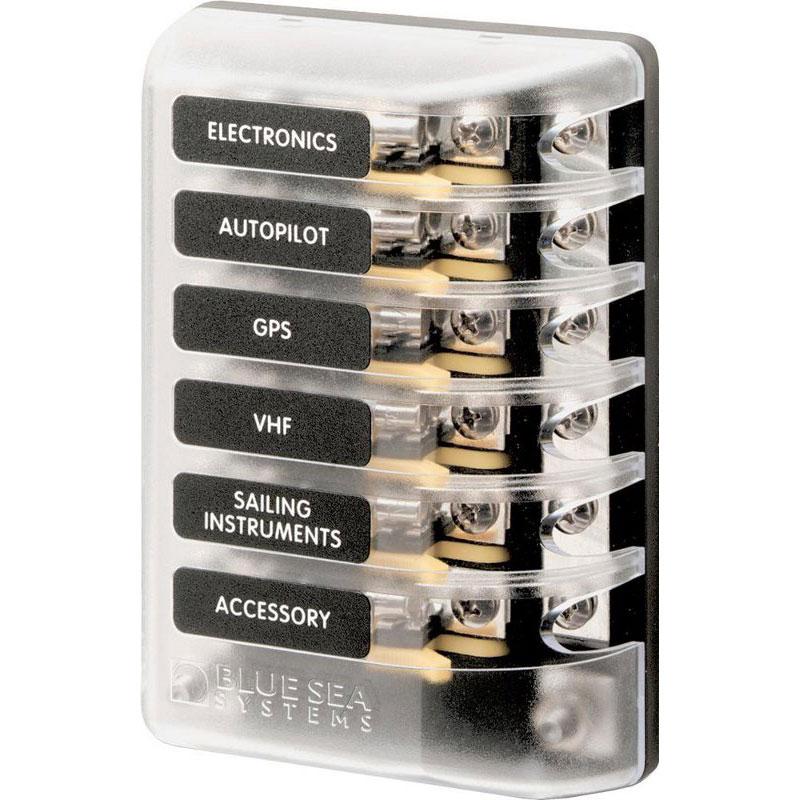

Blue Sea Systems, ST Glass Fuse Block, Screw Terminal, 6 Circuits w/ Negative Bus

3AG Fuse Block System, 6 Circuit w/ Negative Bus, 5015
SKU: 83277
Mfg# 5015
LFS# BSS5015
UNIT: Each
In Stock - Ships out in 1 Business Day


Blue Sea Systems, ST Glass Fuse Block, Screw Terminal, 6 Circuits. Innovative design allows for labeling, spare fuse storage and easy fuse removal.

  • Can be used for 24-hour circuits
  • Clear insulating cover with label recesses accepts Large Format Labels
  • Cover provides storage for spare fuses
  • Cover satisfies ABYC/USCG insulation requirements
  • Tin-plated phosphor bronze fuse clips are encapsulated and cannot be sprung
  • Removable Positive Bus for consolidation of in-line fuses
  • Integrated fuse ejector lever
  • Fuses sold separately
  • 32V DC maximum operating voltage
  • #10-32 stud, tin plated copper negative bus
  • Maximum operating amperage per circuit, 30A
  • Maximum operating amperage per block, 100A
  • AGC or MDL Fuses
  • Screw terminal #8-32 with captive star lock washer
  • Mounting #8 screw (M4)

Blue Sea 5015(PDF)
