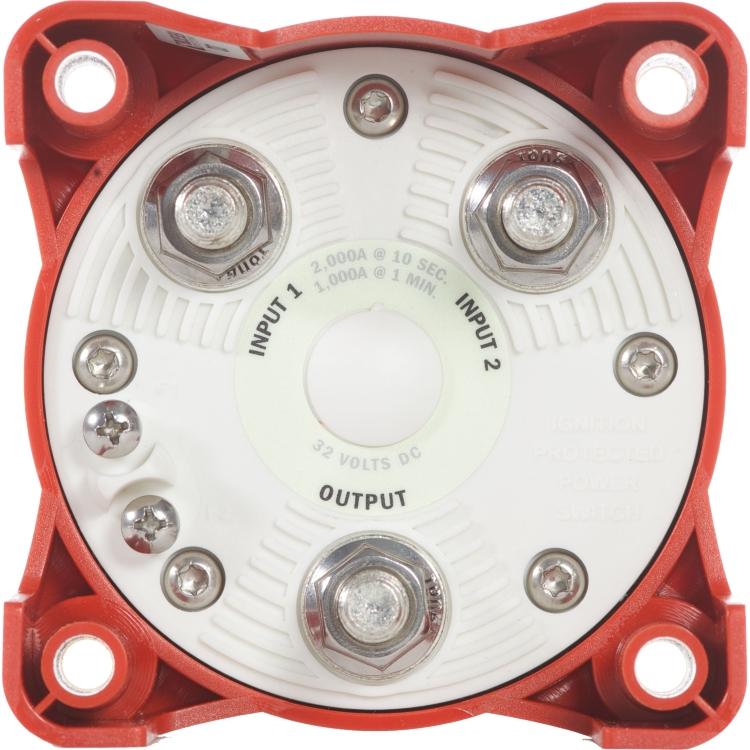

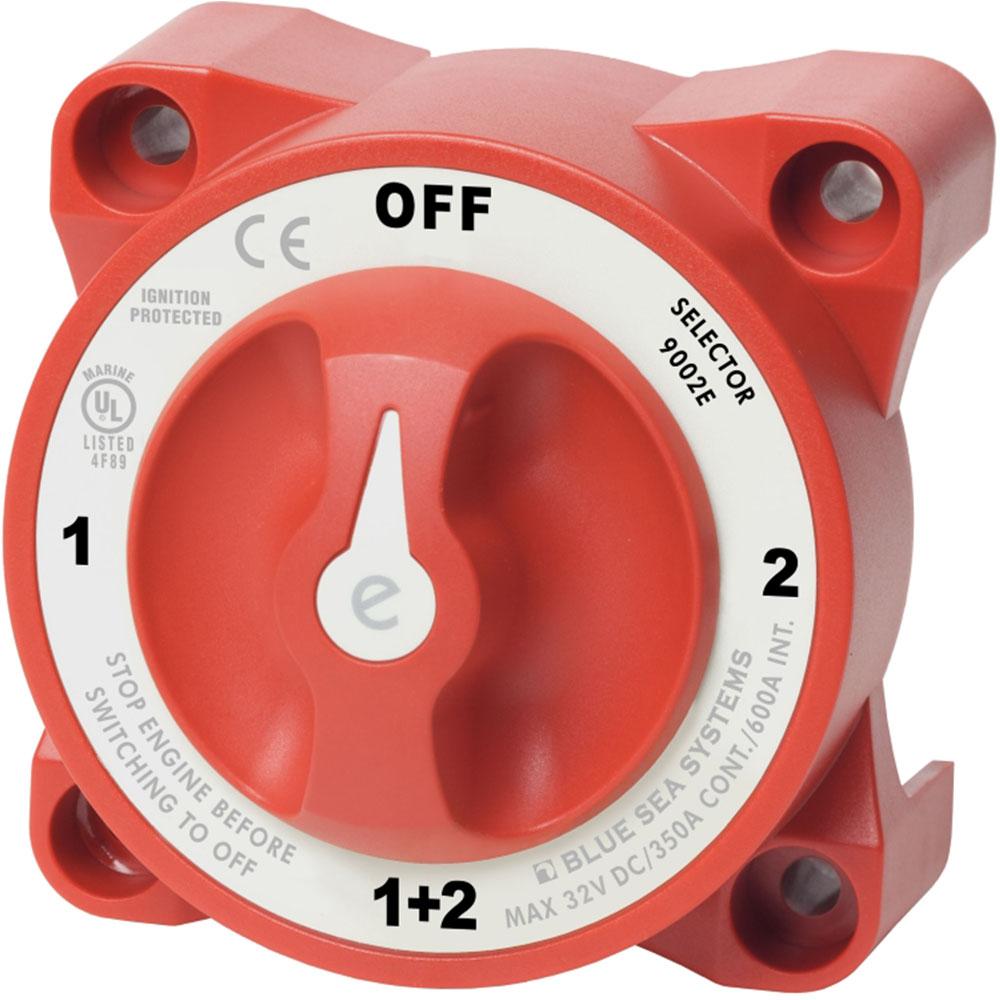

e-Series, Selector Battery Switch, 4 Position, with AFD
Blue Sea Systems, e-Series Battery Selector Switches. 350 Amps continuous rating for inboard gasoline or diesel engines.
- Some models include AFD (Alternator Field Disconnect)
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
Cranking Rating: 10 sec.: 2,000 Amps
Cranking Rating: 1 min.: 1,000 Amps
Intermittent Rating: 5 min.: 600 Amps
Continuous Rating: 350 Amps
Maximum Voltage Rating: 48 Volts DC
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nâ€¡m) max.
Mounting Holes: Accept 1/4" (M6) Screw
Cable Size to Meet Ratings: 4/0 AWG (120mm_)
Cable Clearance For 4/0 AWG Cables: 1.10" (27.9mm)
Weight Lb (Kg): 0.95 (0.43)
