  • Bomar Gray Series Rectangular Opening Molded Portlight

Bomar Gray Series Rectangular Opening Molded Portlight

Mfr: BOMAR (POMPANETTE INC.)
$104.40 to $203.54
$104.40 to $203.54

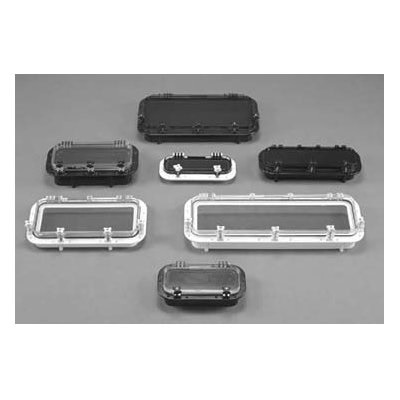

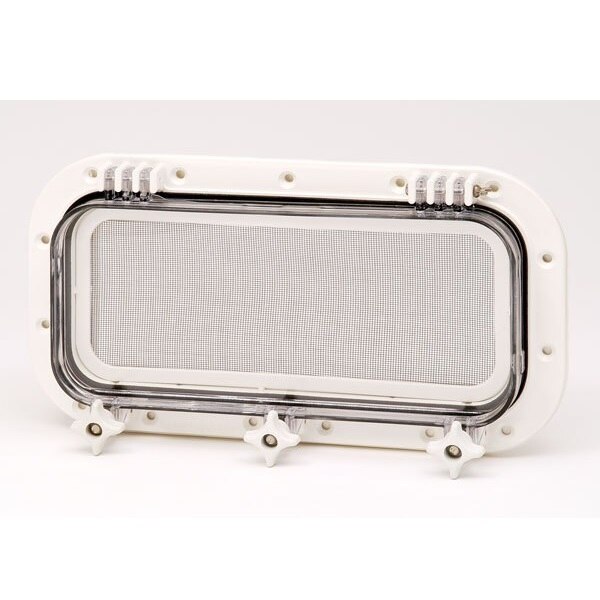

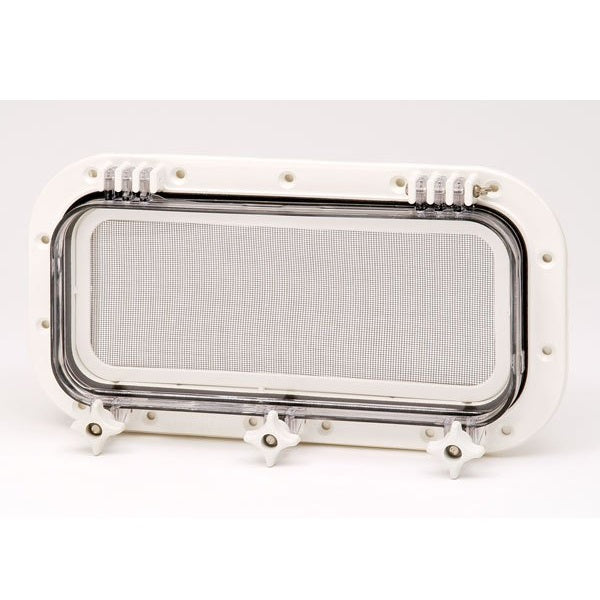

    Gray Series Opening Rectangular Molded Portlights by Bomar Pompanette are available with clear or smoke lenses. Gray Series portlights were factory fitted to many sailboats and powerboats of the 1970-1990 era.

    Features:
  • No visible exterior screws.
  • Large viewing area.
  • Adjustable quick dog.
  • Smoked lens.
  • Complete with trim ring & screen.
  • CE approved.
Item #
MPN
I.D Opening
Cut Out Size
O.D. Base
Spigot Type
Spigot Length
Frame Color
Lens Color
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, Black Frame, Clear Lens
Item #:543579-14-1/2x4-1/2-STRGHTSPGT-BLKCLRLNS
MPN:G414-SD17
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Straight Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size,White Frame, Smoked Lens
Item #:543579-14-1/2x4-1/2-ANGLDSPGT-WHTSMKLNS
MPN:G414-A-28
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, White Frame, Clear Lens
Item #:543579-14-1/2x4-1/2-STRGHTSPGT-WHTCLRLNS
MPN:G414-SD27
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Straight Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, Black Frame, Smoked Lens
Item #:543579-14-1/2x4-1/2-STRGHTSPGT-BLKSMKLNS
MPN:G414-SD18
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Straight Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 12-1/2" x 5-1/2" Cutout Size, Black Frame, Clear Lens
Item #:543579-12-1/2x5-1/2-ANGLDSPGT-BLKCLRLNS
MPN:G512-AD17
I.D Opening: 4" x 11"
Cut Out Size: 5-1/2" x 12-1/2"
O.D. Base: 7-13/16" x 14
Spigot Type: Angled Spigot
Spigot Length: 2-3/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, White Frame, Smoked Lens
Item #:543579-14-1/2x4-1/2-STRGHTSPGT-WHTSMKLNS
MPN:G414-SD28
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Straight Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 12-1/2" x 5-1/2" Cutout Size, White Frame, Clear Lens
Item #:543579-12-1/2x5-1/2-ANGLDSPGT-WHTCLRLNS
MPN:G512-AD27
I.D Opening: 4" x 11"
Cut Out Size: 5-1/2" x 12-1/2"
O.D. Base: 7-13/16" x 14
Spigot Type: Angled Spigot
Spigot Length: 2-3/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 12-1/2" x 5-1/2" Cutout Size, Black Frame, Smoked Lens
Item #:543579-12-1/2x5-1/2-ANGLDSPGT-BLKSMKLNS
MPN:G512-AD18
I.D Opening: 4" x 11"
Cut Out Size: 5-1/2" x 12-1/2"
O.D. Base: 7-13/16" x 14
Spigot Type: Angled Spigot
Spigot Length: 2-3/8"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 10-7/16" x 4-5/8" Cutout Size, Black Frame, Smoked Lens
Item #:543579-10-7/16x4-5/8-ANGLDSPGT-BLKSMKLNS
MPN:G410-A-18
I.D Opening: 3-3/4" x 9-1/2"
Cut Out Size: 4-5/8" x 10-7/16"
O.D. Base: 6-9/16" x 12-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-15/16"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 10-7/16" x 4-5/8" Cutout Size, Black Frame, Clear Lens
Item #:543579-10-7/16x4-5/8-ANGLDSPGT-BLKCLRLNS
MPN:G410-A-17
I.D Opening: 3-3/4" x 9-1/2"
Cut Out Size: 4-5/8" x 10-7/16"
O.D. Base: 6-9/16" x 12-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-15/16"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, Black Frame, Clear Lens
Item #:543579-14-1/2x4-1/2-ANGLDSPGT-BLKCLRLNS
MPN:G414-A-17
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 10-7/16" x 4-5/8" Cutout Size, White Frame, Clear Lens
Item #:543579-10-7/16x4-5/8-ANGLDSPGT-WHTCLRLNS
MPN:G410-A-27
I.D Opening: 3-3/4" x 9-1/2"
Cut Out Size: 4-5/8" x 10-7/16"
O.D. Base: 6-9/16" x 12-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-15/16"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, White Frame, Clear Lens
Item #:543579-14-1/2x4-1/2-ANGLDSPGT-WHTCLRLNS
MPN:G414-A-27
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 14-1/2" x 4-1/2" Cutout Size, Black Frame, Smoked Lens
Item #:543579-14-1/2x4-1/2-ANGLDSPGT-BLKSMKLNS
MPN:G414-A-18
I.D Opening: 3-3/8" x 13-3/8"
Cut Out Size: 4-1/2" x 14-1/2"
O.D. Base: 6-1/2" x 16-1/2"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 18-7/16" x 8-1/2" Cutout Size, Black Frame, Clear Lens
Item #:543579-18-7/16x8-1/2-ANGLDSPGT-BLKCLRLNS
MPN:G818-AD17
I.D Opening: 7" x 17"
Cut Out Size: 8-1/2" x 18-7/16"
O.D. Base: 10-11/16" x 20-5/8"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 24-1/2" x 7-9/16" Cutout Size, White Frame, Smoked Lens
Item #:543579-24-1/2x7-9/16-ANGLDSPGT-WHTSMKLNS
MPN:G724-AD28
I.D Opening: 6" x 23"
Cut Out Size: 7-9/16" x 24-1/2"
O.D. Base: 9-7/8" x 26-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 18-7/16" x 8-1/2" Cutout Size, White Frame, Clear Lens
Item #:543579-18-7/16x8-1/2-ANGLDSPGT-WHTCLRLNS
MPN:G818-AD27
I.D Opening: 7" x 17"
Cut Out Size: 8-1/2" x 18-7/16"
O.D. Base: 10-11/16" x 20-5/8"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 18-7/16" x 8-1/2" Cutout Size, Black Frame, Smoked Lens
Item #:543579-18-7/16x8-1/2-ANGLDSPGT-BLKSMKLNS
MPN:G818-AD18
I.D Opening: 7" x 17"
Cut Out Size: 8-1/2" x 18-7/16"
O.D. Base: 10-11/16" x 20-5/8"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 18-7/16" x 8-1/2" Cutout Size, White Frame, Smoke Lens
Item #:543579-18-7/16x8-1/2-ANGLDSPGT-WHTSMKLNS
MPN:G818-AD28
I.D Opening: 7" x 17"
Cut Out Size: 8-1/2" x 18-7/16"
O.D. Base: 10-11/16" x 20-5/8"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 15-1/2" x 7-9/16" Cutout Size, Black Frame, Clear Lens
Item #:543579-15-1/2x7-9/16-ANGLDSPGT-BLKCLRLNS
MPN:G715-AD17
I.D Opening: 6" x 14"
Cut Out Size: 7-9/16" x 15-1/2"
O.D. Base: 9-5/8" x 17-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 12-1/2" x 5-1/2" Cutout Size, White Frame, Smoked Lens
Item #:543579-12-1/2x5-1/2-ANGLDSPGT-WHTSMKLNS
MPN:G512-AD28
I.D Opening: 4" x 11"
Cut Out Size: 5-1/2" x 12-1/2"
O.D. Base: 7-13/16" x 14
Spigot Type: Angled Spigot
Spigot Length: 2-3/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 15-1/2" x 7-9/16" Cutout Size, White Frame, Clear Lens
Item #:543579-15-1/2x7-9/16-ANGLDSPGT-WHTCLRLNS
MPN:G715-AD27
I.D Opening: 6" x 14"
Cut Out Size: 7-9/16" x 15-1/2"
O.D. Base: 9-5/8" x 17-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 15-1/2" x 7-9/16" Cutout Size, Black Frame, Smoked Lens
Item #:543579-15-1/2x7-9/16-ANGLDSPGT-BLKSMKLNS
MPN:G715-AD18
I.D Opening: 6" x 14"
Cut Out Size: 7-9/16" x 15-1/2"
O.D. Base: 9-5/8" x 17-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 24-1/2" x 7-9/16" Cutout Size, Black Frame, Clear Lens
Item #:543579-24-1/2x7-9/16-ANGLDSPGT-BLKCLRLNS
MPN:G724-AD17
I.D Opening: 6" x 23"
Cut Out Size: 7-9/16" x 24-1/2"
O.D. Base: 9-7/8" x 26-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 15-1/2" x 7-9/16" Cutout Size, White Frame, Smoked Lens
Item #:543579-15-1/2x7-9/16-ANGLDSPGT-WHTSMKLNS
MPN:G715-AD28
I.D Opening: 6" x 14"
Cut Out Size: 7-9/16" x 15-1/2"
O.D. Base: 9-5/8" x 17-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Smoked Lens
Gray Series - Rectangular Molded Portlight, 24-1/2" x 7-9/16" Cutout Size, White Frame, Clear Lens
Item #:543579-24-1/2x7-9/16-ANGLDSPGT-WHTCLRLNS
MPN:G724-AD27
I.D Opening: 6" x 23"
Cut Out Size: 7-9/16" x 24-1/2"
O.D. Base: 9-7/8" x 26-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: White
Lens Color: Clear Lens
Gray Series - Rectangular Molded Portlight, 24-1/2" x 7-9/16" Cutout Size, Black Frame, Smoked Lens
Item #:543579-24-1/2x7-9/16-ANGLDSPGT-BLKSMKLNS
MPN:G724-AD18
I.D Opening: 6" x 23"
Cut Out Size: 7-9/16" x 24-1/2"
O.D. Base: 9-7/8" x 26-3/4"
Spigot Type: Angled Spigot
Spigot Length: 1-7/8"
Frame Color: Black
Lens Color: Smoked Lens
