Bomar, Low Profile Hatches with Aluminum Frames and External Hinges

Mfr: BOMAR (POMPANETTE INC.)
$303.27 to $694.58
$303.27 to $694.58

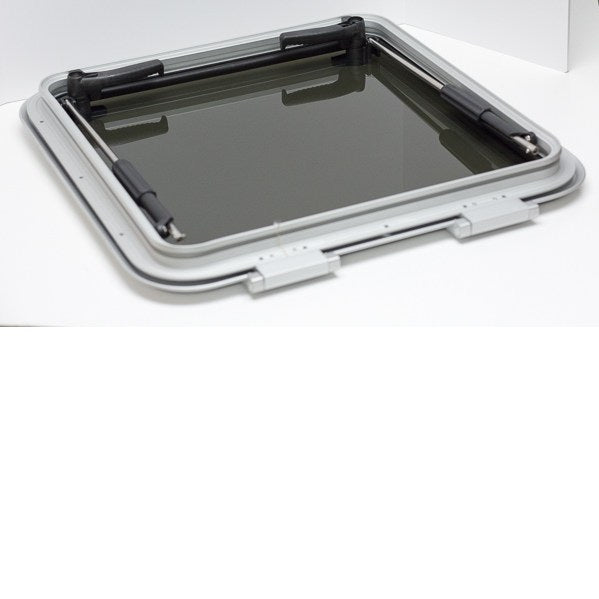

Low Profile Hatches feature aluminum frames and external aluminum hinges to give boaters the top of the line looks and performance. Hatches are made using heavy duty lenses but have no sharp corners to snag lines or sails.

  • Size = Hatch Opening Size
  • High impact acrylic lens
  • Low profile - 15/16" deck to lid height
  • No sharp corners to snag lines or sails

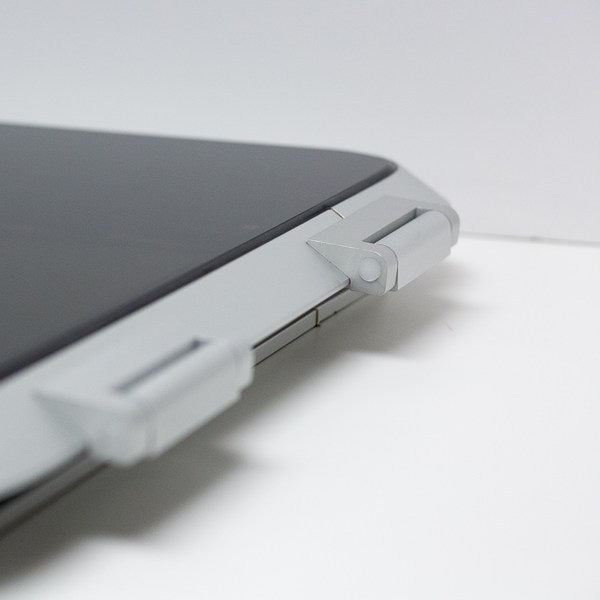

  • Heavy-duty external hinges - allow 1/2" for hinge clearance

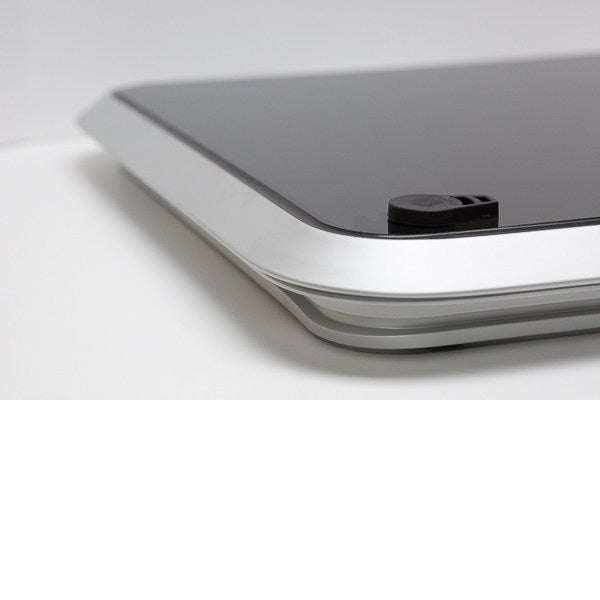

  • Quick acting, adjustable tie down dogs
  • Locked vent position

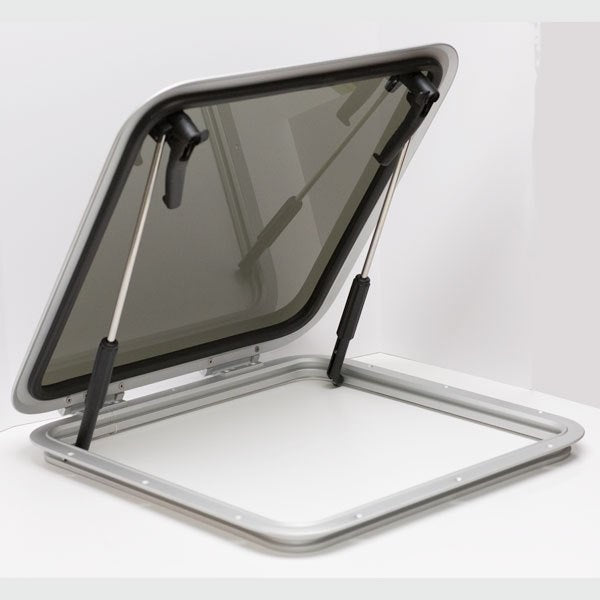

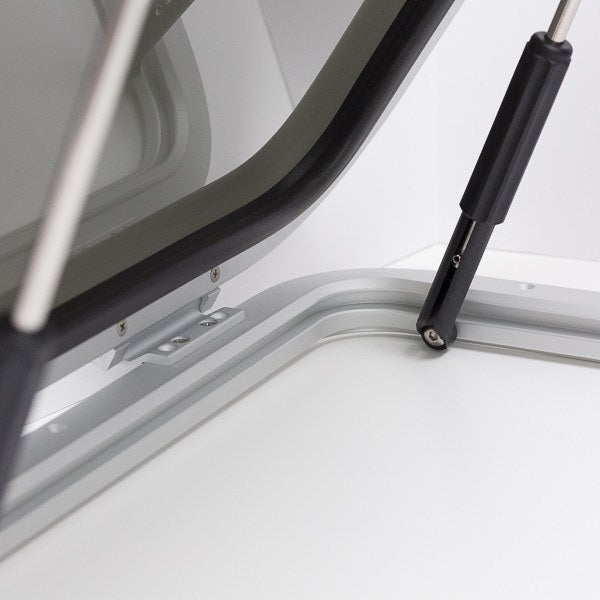

  • SS riser arm
  • Spare parts available

Item #
MPN
Hatch Opening
Hole Cut Out
O.D. of Deck Flange
Lens Color
Low Profile Extruded Hatch, 19-1/8" Square, White Frame, White Lens, Al Hinge, N1039-10A-WHT, Custom Non-Returnable
Item # : 531424-19-1/8"x19-1/8"-WHTFRMWHTLNS
MPN : N1039-10A-WHT
Hatch Opening : 19-1/8" x 19-1/8"
Hole Cut Out : 20-1/4" x 20-1/4"
O.D. of Deck Flange : 21-7/8" x 21-7/8"
Lens Color : White
Low Profile Extruded Hatch, 21" Square, Silver Frame & 3/8" Smoke Lens, N1022-10AX
Item # : 531424-21"x21"-SLVRFRMSMKLNS
MPN : N1022-10AX
Hatch Opening : 21" x 21"
Hole Cut Out : 22-1/8" x 22-1/8"
O.D. of Deck Flange : 23-3/4" x 23-3/4"
Lens Color : Smoke
Low Profile Extruded Hatch, 10-3/4" Square Cutout, White Frame/Smoke Lens
Item # : 531424-9-5/8"x9-5/8"-WHTFRMSMKLNS
MPN : N1000-10A-W
Hatch Opening : 9-5/8" x 9-5/8"
Hole Cut Out : 10-3/4" x 10-3/4"
O.D. of Deck Flange : 12-1/8" x 12-1/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 8-3/4" x 8-3/4", Silver Frame & Smoke Lens
Item # : 531424-8-3/4"x8-3/4"-SLVRFRMSMKLNS
MPN : N1003-10A
Hatch Opening : 8-3/4" x 8-3/4"
Hole Cut Out : 9" x 9"
O.D. of Deck Flange : 12-3/8" x 12-3/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 17-3/8" Square, Silver Frame & Smoke Lens
Item # : 531424-17-3/8"x17-3/8"-SLVRFRMSMKLNS
MPN : N1080-10A
Hatch Opening : 17-3/8" x 17-3/8"
Hole Cut Out : 18-1/2" x 18-1/2"
O.D. of Deck Flange : 20-1/8" x 20-1/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 30-3/4" x 15-3/4" Cutout, White Frame/Smoke Lens
Item # : 531424-29-5/8"x14-5/8"-WHTFRMSMKLNS
MPN : N1046-10A-W
Hatch Opening : 29-5/8" x 14-5/8"
Hole Cut Out : 30-3/4" x 15-3/4"
O.D. of Deck Flange : 32-3/8" x 17-3/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 13" Square, White Frame & White Lens
Item # : 531424-13"x13"-WHTFRMWHTLNS
MPN : N1060-10A-WHT
Hatch Opening : 13" x 13"
Hole Cut Out : 14-1/8" x 14-1/8"
O.D. of Deck Flange : 15-3/4" x 15-3/4"
Lens Color : White
Hatch Low Pro 13-1/8 x 18-1/2
Item # : 531424-12-1/4"x17-3/8"-SLVRFRMSMKLNS
MPN : N1029-10A
Hatch Opening : 12-1/4" x 17-3/8"
Hole Cut Out : 13-3/8" x 18-1/2"
O.D. of Deck Flange : 15" x 20-1/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 20-3/16" Square Cutout, White Frame/Smoke Lens
Item # : 531424-19-1/8"x19-1/8"-WHTFRMSMKLNS
MPN : N1039-10A-W
Hatch Opening : 19-1/8" x 19-1/8"
Hole Cut Out : 20-3/16" x 20-3/16"
O.D. of Deck Flange : 21-13/16" x 21-13/16"
Lens Color : Smoke
Low Profile Extruded Hatch, 12" Square Cutout, White Frame/Smoke Lens
Item # : 531424-10-7/8"x10-7/8"-WHTFRMSMKLNS
MPN : N1015-10A-W
Hatch Opening : 10-7/8" x 10-7/8"
Hole Cut Out : 12" x 12"
O.D. of Deck Flange : 13-5/8" x 13-5/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 24" Square, Silver Frame & 3/8" Smoke Lens, 1049-10AX
Item # : 531424-24"x24"-SLVRFRMSMKLNS
MPN : N1049-10AX4
Hatch Opening : 24" x 24"
Hole Cut Out : 25 1/8" x 25 1/8"
O.D. of Deck Flange : 26 3/4" x 26 3/4"
Lens Color : Smoke
Low Profile Extruded Hatch, 19-1/8" Square, Black Frame & Smoke Lens
Item # : 531424-19-1/8"x19-1/8"-BLKFRMSMKLNS
MPN : N1039-10A---Z
Hatch Opening : 19-1/8" x 19-1/8"
Hole Cut Out : 20-1/4" x 20-1/4"
O.D. of Deck Flange : 21-7/8" x 21-7/8"
Lens Color : Smoke
Low Profile Extruded Hatch, 15-7/16" Square, Silver Frame & Smoke Lens
Item # : 531424-15-7/16"x15-7-SLVRFRMSMKLNS
MPN : N1070-10A
Hatch Opening : 15-7/16" x 15-7/16"
Hole Cut Out : 16-1/2" x 16-1/2"
O.D. of Deck Flange : 18-3/16" x 18-3/16"
Lens Color : Smoke
Low Profile Extruded Hatch, 13" Square, Silver Frame & Smoke Lens
Item # : 531424-13"x13"-SLVRFRMSMKLNS
MPN : N1060-10A
Hatch Opening : 13" x 13"
Hole Cut Out : 14-1/8" x 14-1/8"
O.D. of Deck Flange : 15-3/4" x 15-3/4"
Lens Color : Smoke
Low Profile Extruded Hatch, 8 x 13-1/4", Silver Frame & Smoke Lens
Item # : 531424-8"x13-1/4"-SLVRFRMSMKLNS
MPN : N1011-10A
Hatch Opening : 8" x 13-1/4"
Hole Cut Out : 9-1/8" x 14-3/8"
O.D. of Deck Flange : 10-3/4" x 16"
Lens Color : Smoke
Bomar, Low Profile Extruded Hatch, 10-3/4" Square
Item # : 531424-9-5/8"x9-5/8"-SLVRFRMSMKLNS
MPN : N1000-10A
Hatch Opening : 9-5/8" x 9-5/8"
Hole Cut Out : 10-3/4" x 10-3/4"
O.D. of Deck Flange : 12-3/8" x 12-3/8"
Lens Color : Smoke
Low Profile Extruded Hatch, Anodized Frame, Smoke Lens, O.D. 19-3/16" x 14-13/16"
Item # : 531424-17-1/16"x12-1-ANDZFMSMKLNS
MPN : N1027-10AX
Hatch Opening : 17-1 /16" x 12-1 /16"
Hole Cut Out : 16-3 /16" x 13-3 /16"
O.D. of Deck Flange : 19-13/16" x 14-13/16"
Lens Color : Smoke
Low Profile Extruded Hatch, 13" Square, White Frame & Smoke Lens
Item # : 531424-13"x13"-WHTFRMSMKLNS
MPN : N1060-10A-W
Hatch Opening : 13" x 13"
Hole Cut Out : 14-1/8" x 14-1/8"
O.D. of Deck Flange : 15-3/4" x 15-3/4"
Lens Color : Smoke
Low Profile Extruded Hatch, 19-1/8" Square, Silver Frame, Smoke Lens, Al Hinge, 1039-10A
Item # : 531424-19-1/8"x19-1/8"-SLVRFRMSMKLNS
MPN : N1039-10A
Hatch Opening : 19-1/8" x 19-1/8"
Hole Cut Out : 20-1/4" x 20-1/4"
O.D. of Deck Flange : 21-7/8" x 21-7/8"
Lens Color : Smoke

Ratings & Reviews

No reviews available

Be the first to Write a Review

We stock some Bomar products. Many ship directly from Bomar. If you are not sure if you have identified the correct replacement Bomar part, please contact Bomar directly at (603) 826-5791. We can order any Bomar part . Call us if you have the Bomar part number and do not see it on the web site. We will special order it for you.
