DESCRIPTION
Flame Thrower II Coil 4, 6 and 8 cylinder engines
40,000 VOLT CANISTER COILS While it’s the perfect coil to go with the PerTronix Ignitor breakerless ignition, our 40,000 volt Flame-Thrower canister coil can benefit virtually any distributor type inductive system. Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so installation and wiring is drastically simplified. Our oil filled coils offer great heat control for street driven vehicles, while our epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats. 45,000 VOLT CANISTER COILS Flame-Thrower II coils feature a very low resistance which make them the ideal coil for Ignitor II ignition systems as well as many other high performance ignitions. Low resistance and improved turns ratio help to produce up to 45,000 volts. This higher voltage enables you to run larger spark plug gaps for added power and better fuel economy. These coils are also compatible with most capacitive discharge boxes including our own Second Strike.

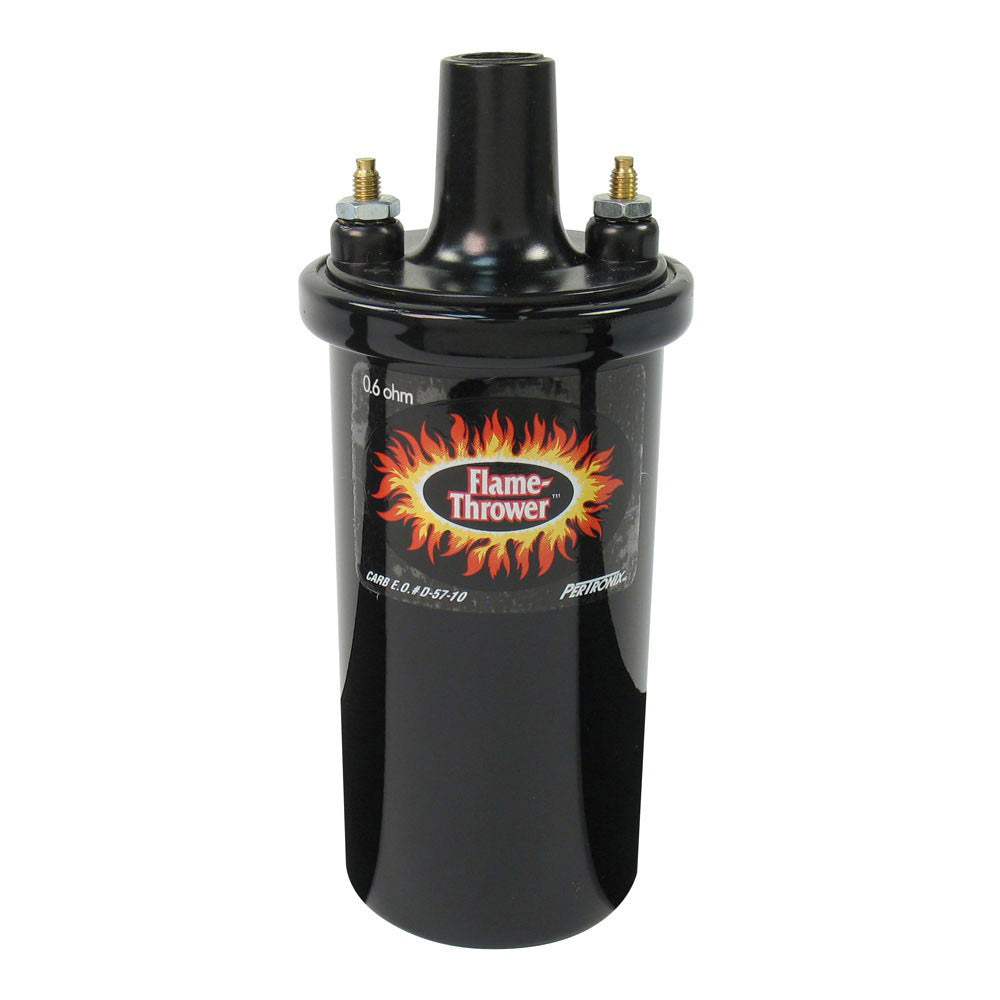

Flame Thrower Ii Coil
Manufacturer: Pertronix
Category: Inboards - Starters and Solenoids
Part No. 45001
Description:Flame-Thrower II Oil Filled
Finish: Chrome
Turn Ratio:100:1
Primary Resistance:0.6 Ohms
Secondary Resistance: 9.0k Ohms
Primary Inductance: 6.0mH
Maximum Voltage: 45,000
Height: 6.0”
Diameter : 2.15”
