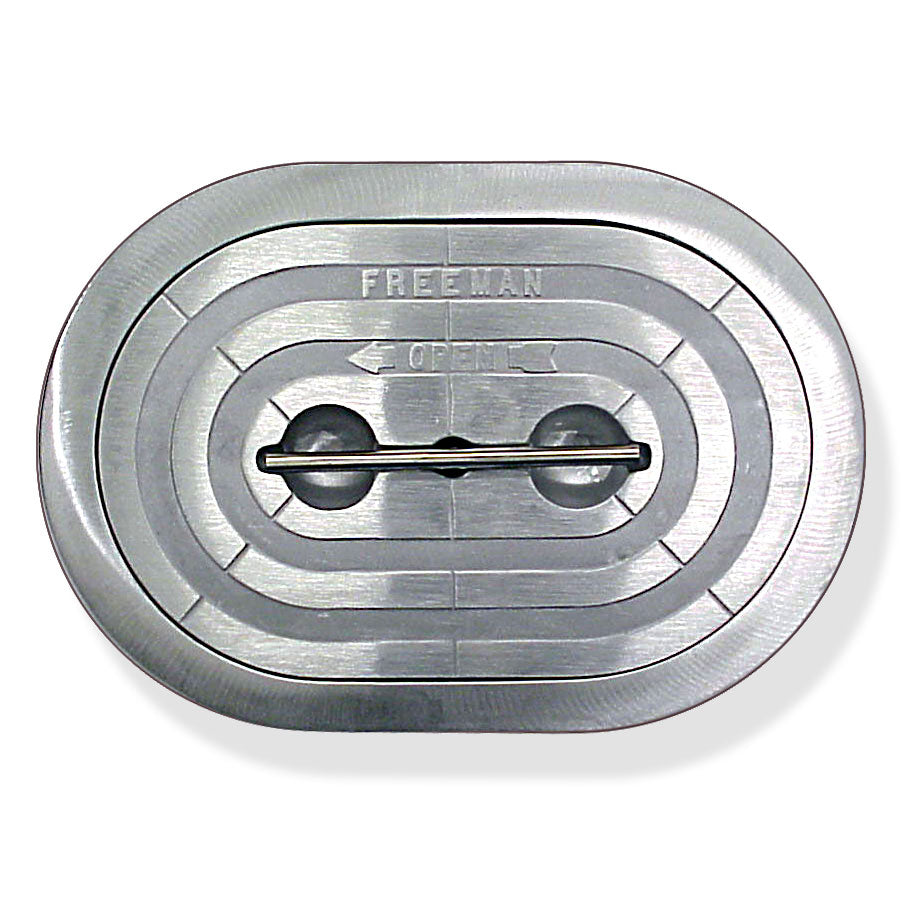

Freeman 12" x 18" Aluminum Oval Hatch
The Freeman Marine 2431-0002 Liftout Hatch is a 12" x 18" oval hatch complete aluminum cover with ring. This style of hatch is ideal for quick acting access into shaft alleys, fish sorting, void inspection, ventilation and to valving, piping, wiring, controls, other areas where seaworthy security required. clear opening dimension a standard used by many throughout the world as crawl-through opening.
Dimensions:
(A) Clear Opening: 12" x 18"
(B) Rough Opening: 15" x 21"
(C) Overall: 18.8" x 24.8
(D) 1.5"
(E) 0.31"
Cover Dimensions:
Material: Aluminum
Thickness: 0.28"
Overall: 14.1" x 20.3"
Mechanism:
Material: Aluminum Alloy
Dog Quantity: 4
The Freeman Marine 2431-0002 Liftout Hatch is a 12" x 18" oval hatch complete aluminum cover with ring. This style of hatch is ideal for quick acting access into shaft alleys, fish sorting, void inspection, ventilation and to valving, piping, wiring, controls, other areas where seaworthy security required. clear opening dimension a standard used by many throughout the world as crawl-through opening.
Dimensions:
(A) Clear Opening: 12" x 18"
(B) Rough Opening: 15" x 21"
(C) Overall: 18.8" x 24.8
(D) 1.5"
(E) 0.31"
Cover Dimensions:
Material: Aluminum
Thickness: 0.28"
Overall: 14.1" x 20.3"
Mechanism:
Material: Aluminum Alloy
Dog Quantity: 4
